Tohatsu dealers provide genuine Tohatsu parts and accessories designed to maximize your Tohatsu outboard's performance.



Control Boxes & Cables

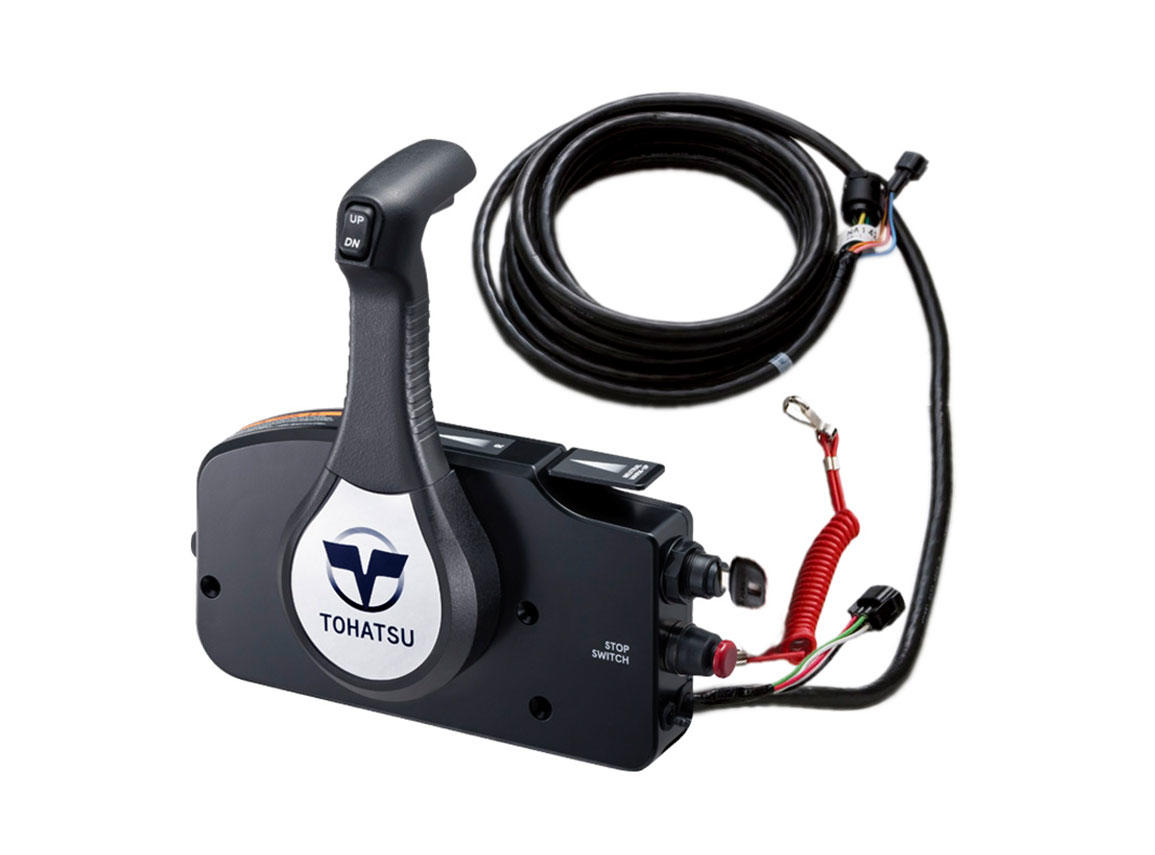

Tohatsu Control Boxes
Our Side Mount, Flush Mount and Top/Binnacle & Dual Binnacle Mount control boxes are designed to provide remote throttle & shift control for Tohatsu outboards. Tohatsu offers a wide range of control boxes, mounting kits, and remote conversion kits to accommodate almost any application. For a complete list of kits & options, please contact your local Tohatsu dealer.





 Part Number

Description

Control box styles pictured may be different than those offered at the time of your order. Please contact your local Tohatsu dealer for a current list of styles available.

Drag Link
Specially designed for Tohatsu outboards to connect the steering cable to your Tohatsu outboard.



 Part Number

Description Applicable Models

 3AA-84905-0

Drag Link J MFS8/9.8 (4-Stroke)

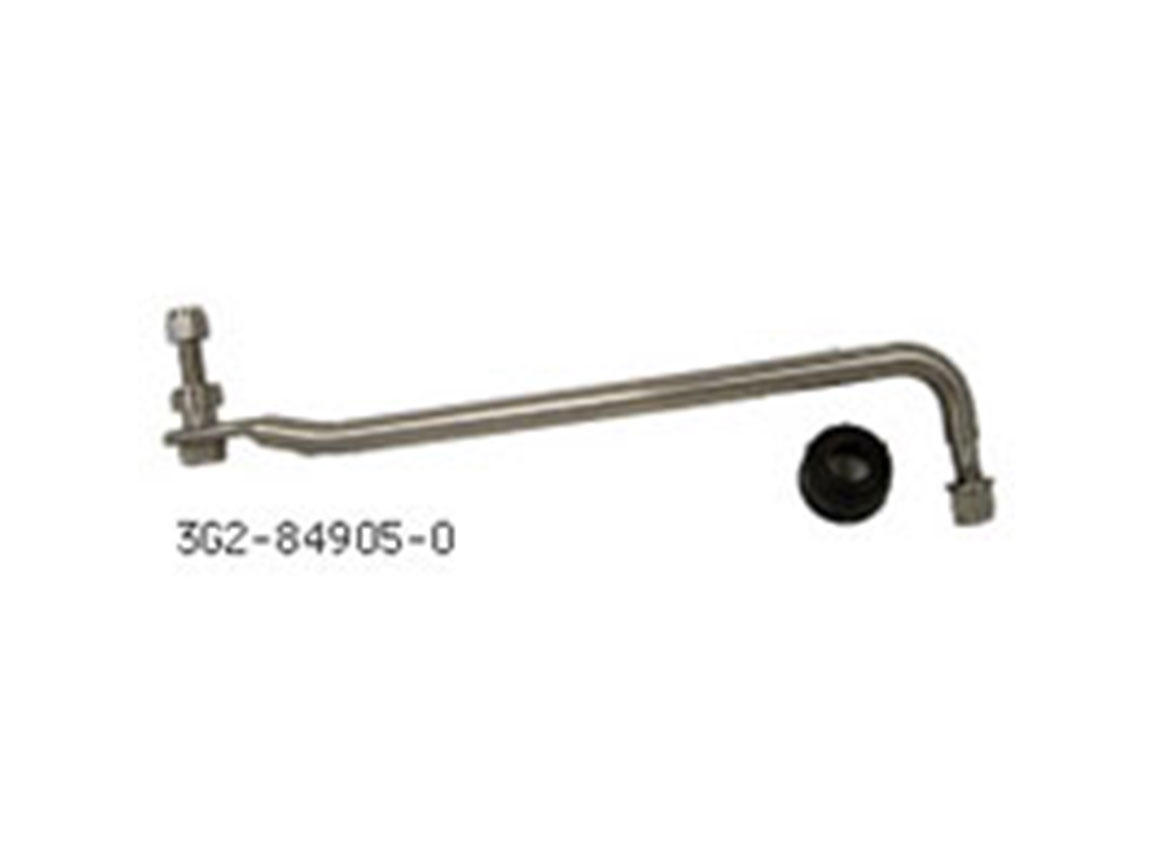

 3G2-84905-0

Drag Link G M9.9D2/15D2/18E2 (2-Stroke)

 3E0-84905-1

Drag Link H MFS9.9/15/18/20/25/30 (4-Stroke) & M60/70(B&C)/115/140 (2-Stroke) &
MD70/90/115 (TLDI)

 346-84905-1

Drag Link C M25C3/30A4 (2-Stroke)

 361-84905-1

Drag Link B M40C (2-Stroke)

 3C8-84910-2

Drag Link E M40/50D (2-Stroke) & MD40/50 (TLDI)

 3B7-84905-1

Drag Link D M90A (2-Stroke)

Remote Control Fitting Kit

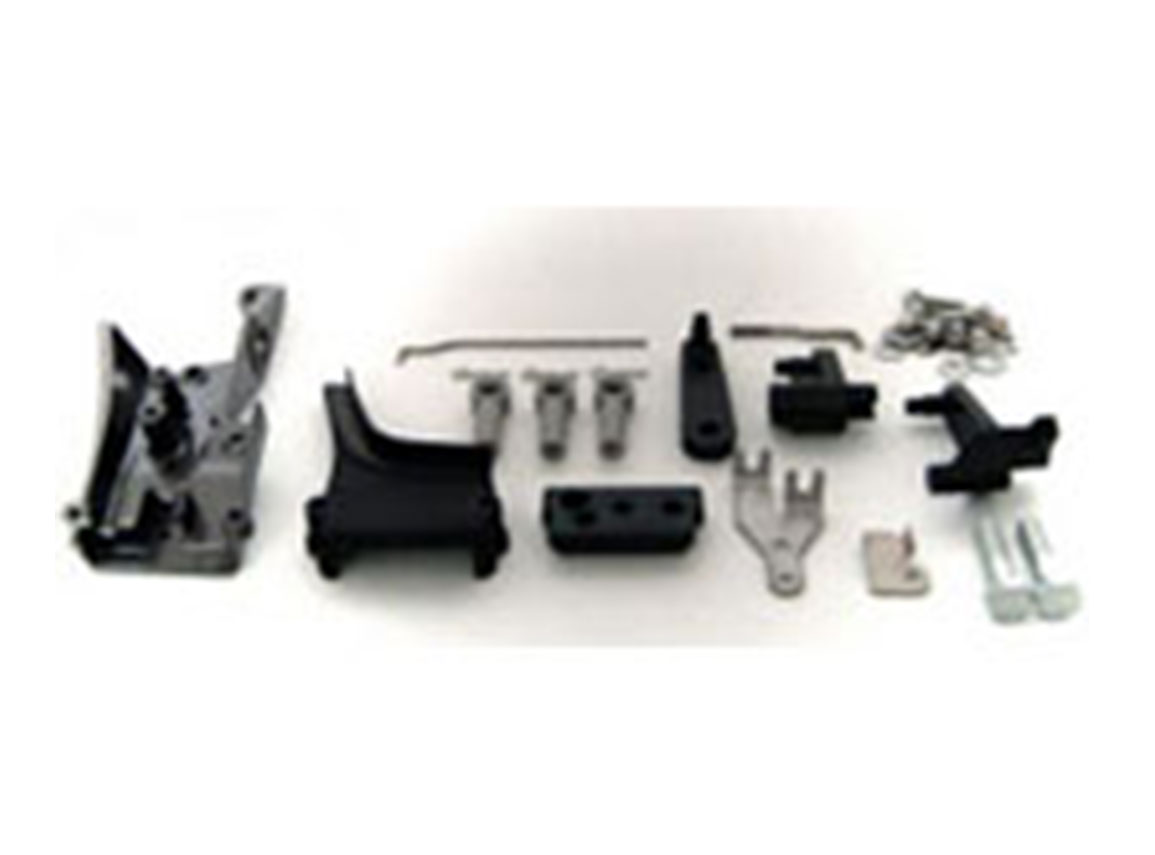

This remote control fitting kit converts steering, throttle and shift from tiller handle functions to remote control.



 Part Number

Description

 Please contact your local dealer to determine the correct kit for your model.

Hi-Lex Throttle & Shift CLAMP TYPE Cables are available in lengths from 6ft to 30ft. Made by TSK, the world's largest cable manufacturer, these cables are a high quality alternative to any standard 3300 series cable.

Manufactured using a unique process of winding smaller cables over the sold core ensures the most flexible and strongest cable for its compact size on the market. The inner cable is covered with a unique ribbed nylon coating to guarantee minimum friction and maximum efficiency. A polyethylene liner matched to the ribbed inner core further minimums friction. Zinc plated structure, impregnated by a patented oil inclusion process and coated with a UV resistant polyethylene outer casing ensure this cable will handle the harshest marine environment.

The design of this sealed cable with self-lubricating properties of the material ensures lifetime lubrication of sliding components. This, combined with high quality a stainless steel push rod, provides a maintenance free, trouble free cable.



 Part Number

Description

 HC49J96-06FT

6 foot

 HC49J96-08FT

8 foot

 HC49J96-09FT

9 foot

 HC49J96-10FT

10 foot

 HC49J96-11FT

11 foot

 HC49J96-12FT

12 foot

 HC49J96-13FT

13 foot

 HC49J96-14FT

14 foot

 HC49J96-15FT

15 foot

 HC49J96-16FT

16 foot

 HC49J96-17FT

17 foot

 HC49J96-18FT

18 foot

 HC49J96-19FT

19 foot

 HC49J96-20FT

20 foot

 HC49J96-21FT

21 foot

 HC49J96-22FT

22 foot

 HC49J96-23FT

23 foot

 HC49J96-24FT

24 foot

 HC49J96-25FT

25 foot

 HC49J96-26FT

26 foot

 HC49J96-27FT

27 foot

 HC49J96-28FT

28 foot

 HC49J96-29FT

29 foot

 HC49J96-30FT

30 foot
