Tohatsu dealers provide genuine Tohatsu parts and accessories designed to maximize your Tohatsu outboard's performance.

Genuine Tohatsu Parts

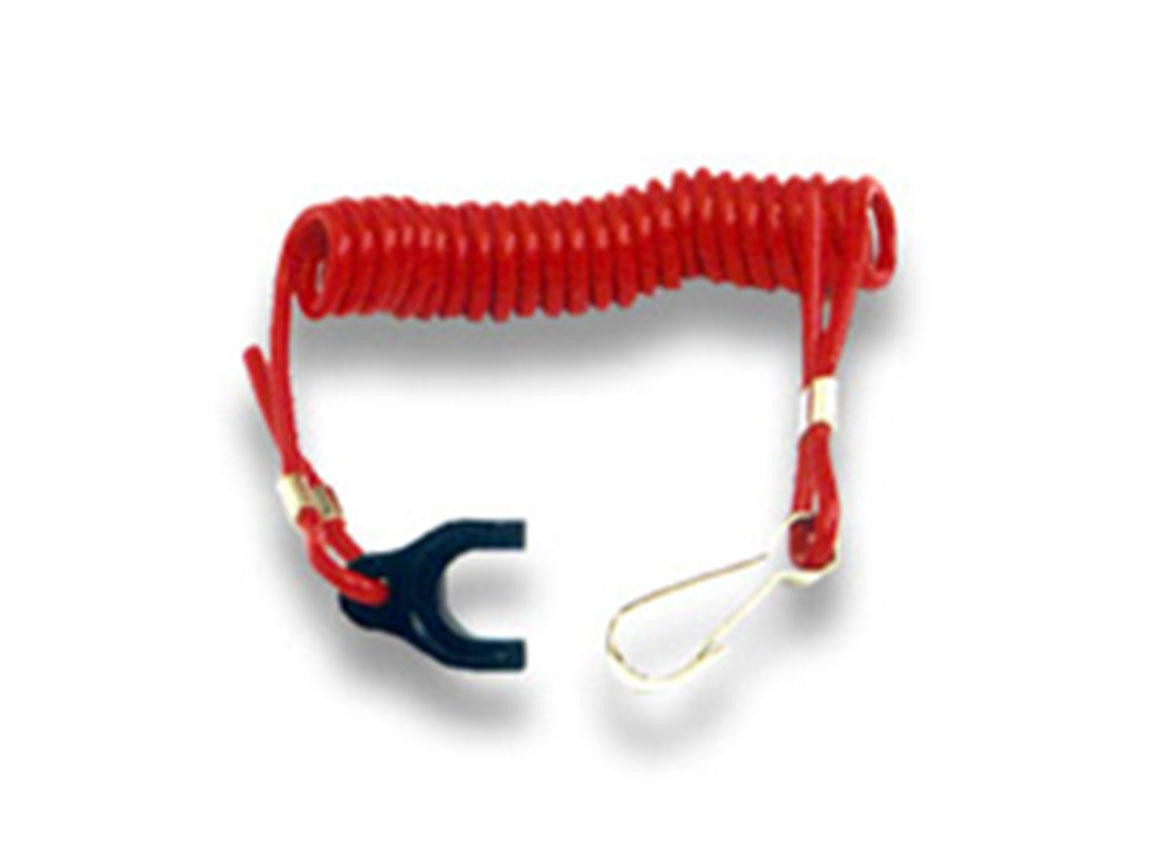

Safety Lanyard Cords are designed to shut off your outboard in the event the operator falls overboard (lanyard must be properly connected to both the outboard and the operator). Without this important safety feature your outboard would continue to run without you at the controls. This item is necessary to start your outboard.

Replacement lanyard cords can be purchased through your local dealer.





 Part Number

Description Applicable Models
 35306-8210M Safety Lanyard Cord All Models
(except MFS9.9A/MFS15A & BFT Models)
 HZV4-36182-651 Safety Lanyard Cord BFT models only

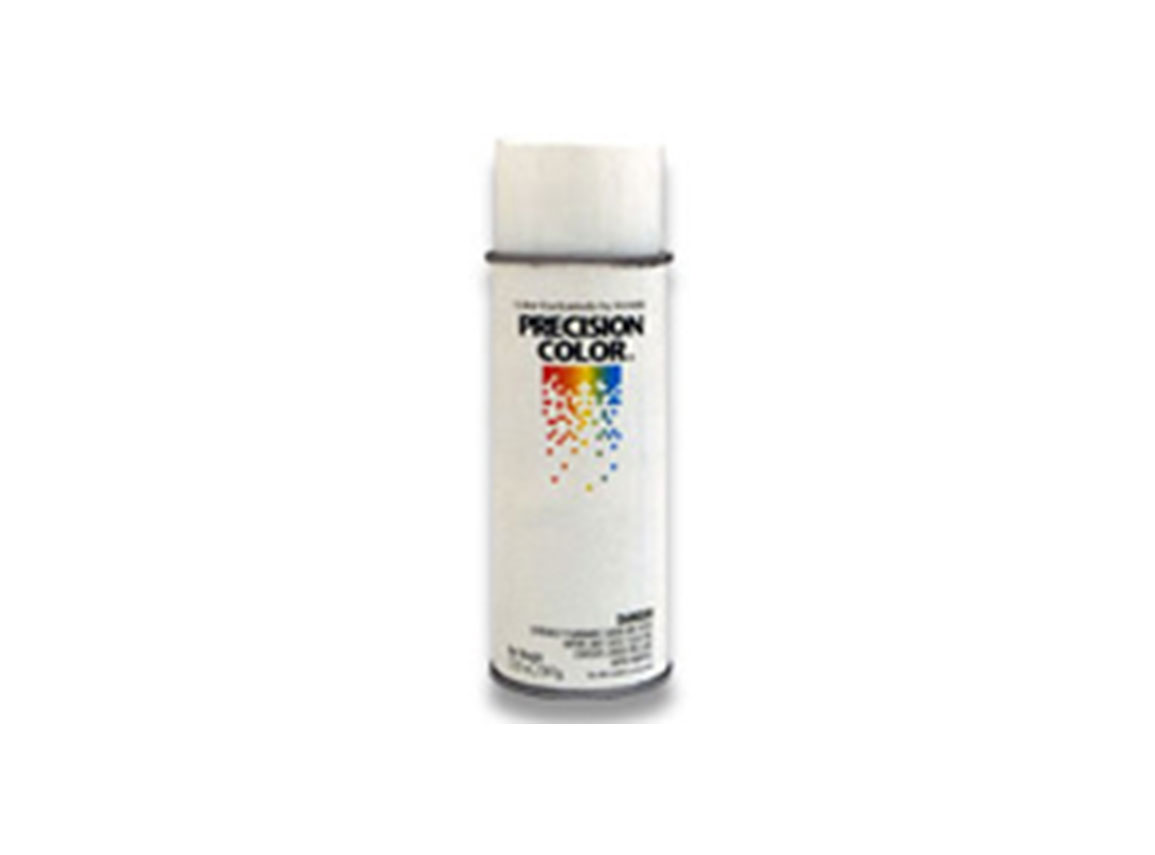

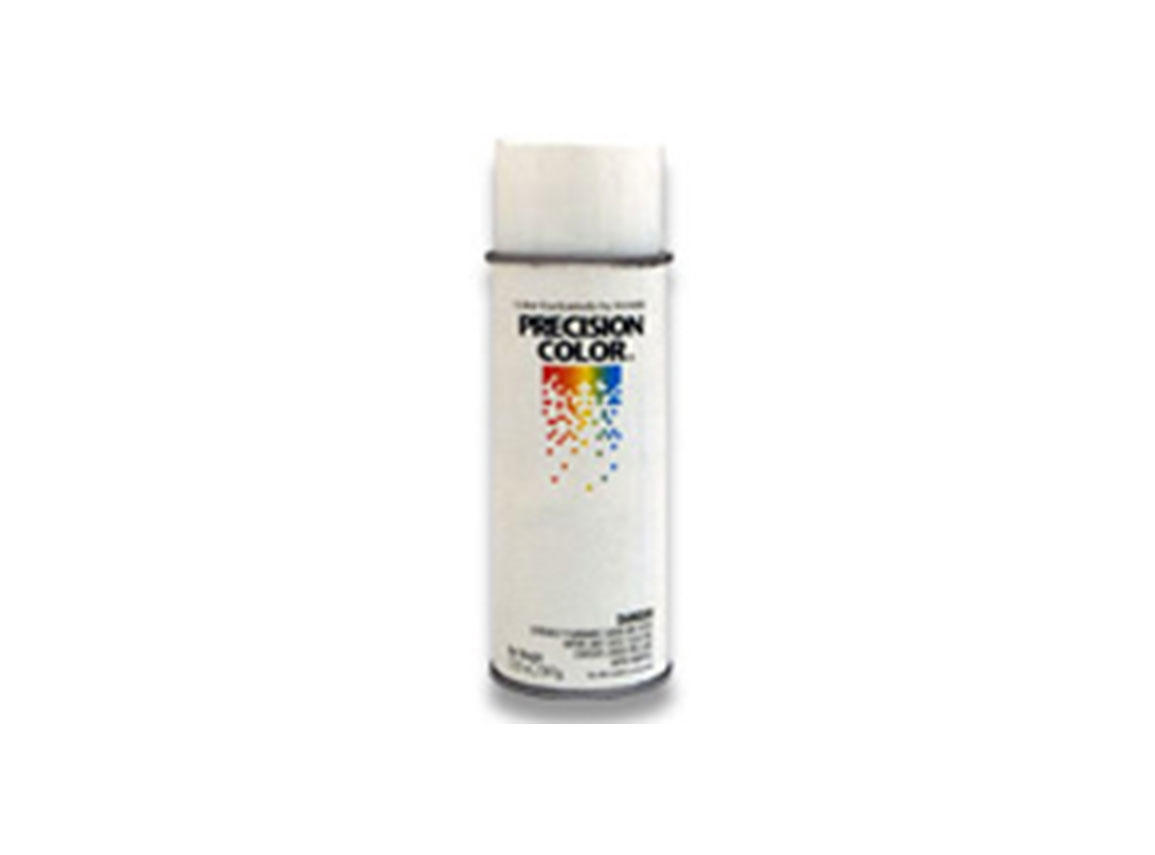

Touch-Up Paint
To keep your Tohatsu outboard looking new and to help prevent corrosion, touch-up paint is available from your local dealer.

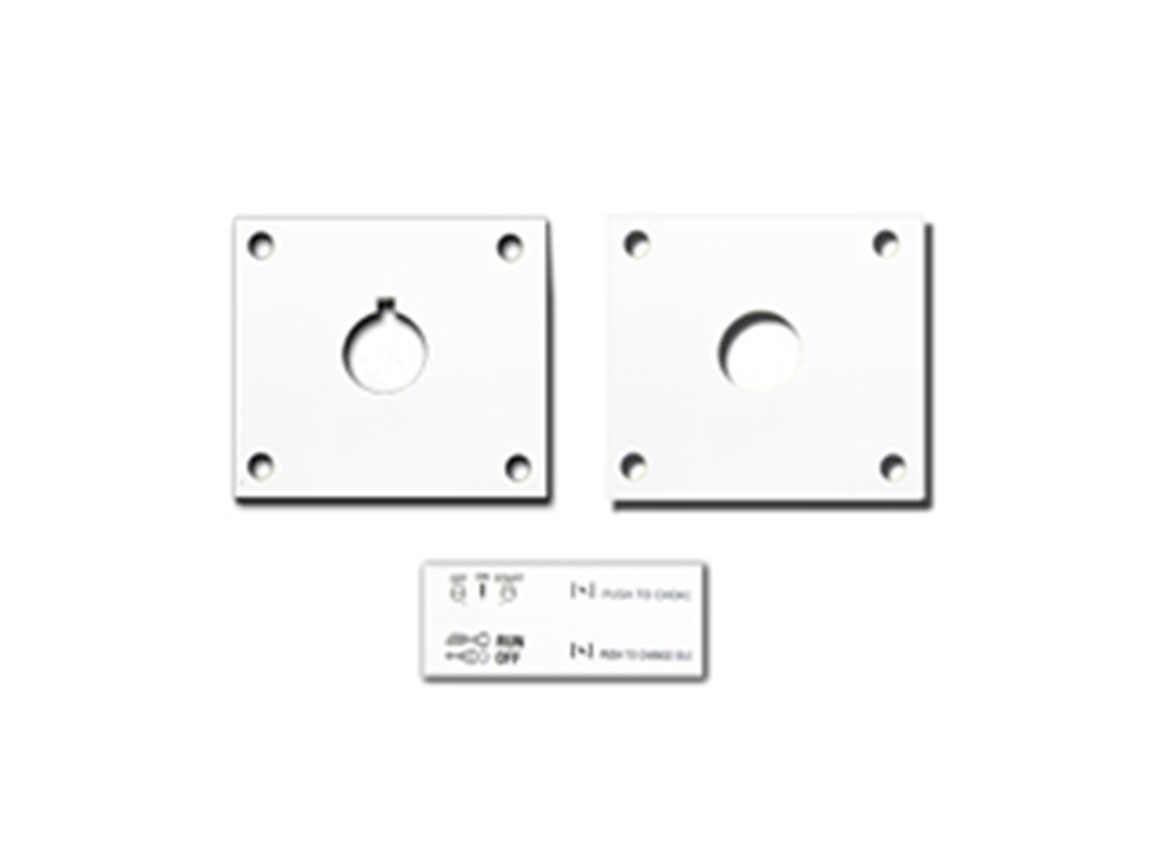

2-Piece Switch Panel
This new 2-piece switch panel is the perfect replacement for our standard 1-piece switch panel. The 2-piece panel, available in white UV resistant plastic to match your white dash, allows you to place the lanyard cord & key switch in different positions rather than the standard vertical position of our 1-piece panel. Panels also come with decals for key switch & lanyard functions. Mounting holes are the same size and position as the standard 1-piece panel.

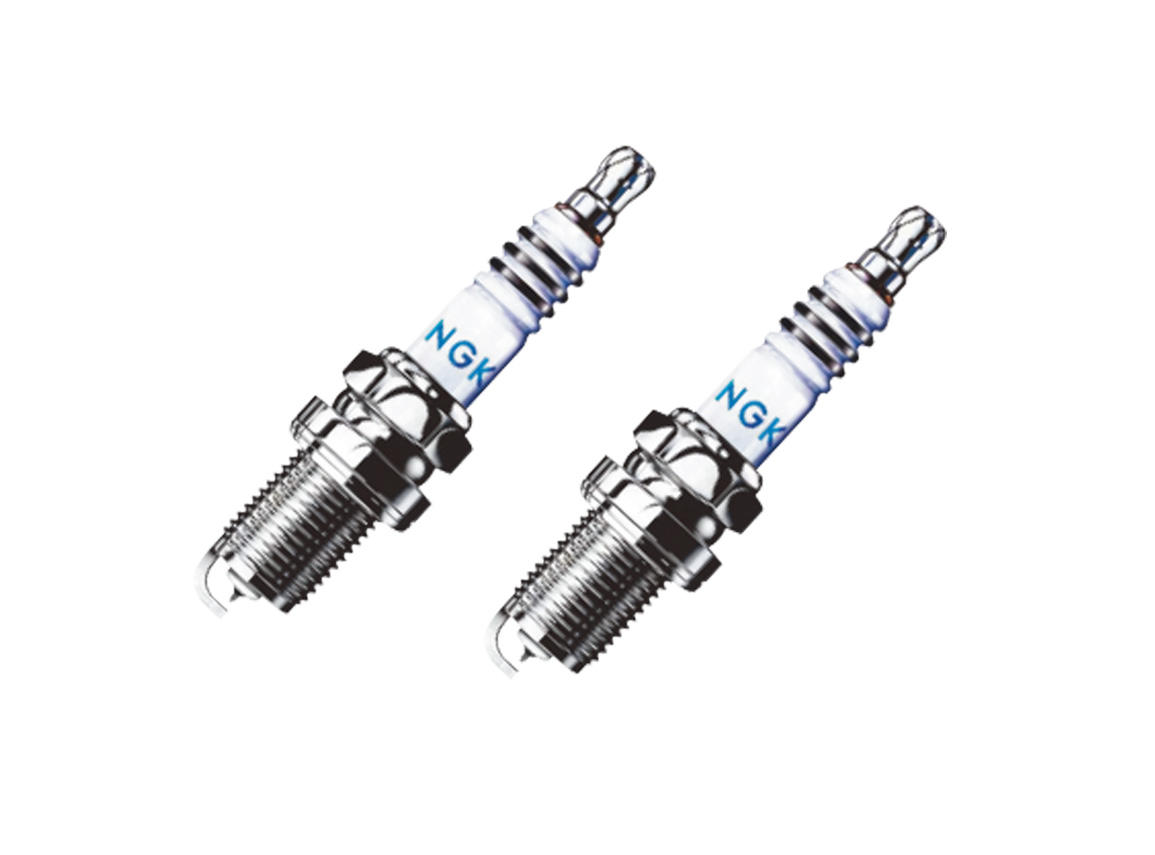

Replacement Spark Plugs
All spark plugs meet the original specifications as the ones that came with your Tohatsu outboard.

Replacement spark plugs can be ordered through your local dealer.



 Part Number

Description Applicable Models
 97010-1011M NGK - BP6HS-10 2.5/3.5hp 2-Stroke
 97010-1005M NGK - BP7HS-10 5 / 8 / 9.8 / 9.9 / 15 / 18 / 25 / 30 / 40hp 2-St
 97010-1009M NGK - BP8HS-10 50 / 60 / 70 / 90 / 115 / 140hp 2-Stroke
 97010-1103M NGK - DCPR6E 2.5 / 3.5 / 4 / 5 / 6 / 8 / 9.8 / 15 / 18 / 20 / 25 / 30 / 40 / 50hp 4-Stroke
 97011-1108M NGK - PZFR6H 40B / 50B TLDI Models
 97011-1110M NGK - IZFR6J 40B2 / 50B2 / 70B / 90B TLDI Models
 97011-4017M Champion - RC12ECC 40A / 50A / 70A / 90A TLDI Models
 HZZ3-31908-003 NGK - LMAR6C-9 BFT60 4-Stroke
 97011-1111M NGK - IZFR6Q (Iridium) 75C2 / 90C2 TLDI Models
 97011-1109M NGK - IZFR5J (Iridium) 115A / 115A2 TLDI Models
 HCO-9807B-5617C NGK - IZFR6K-11E BFT75 ~ BFT250 4-Stroke

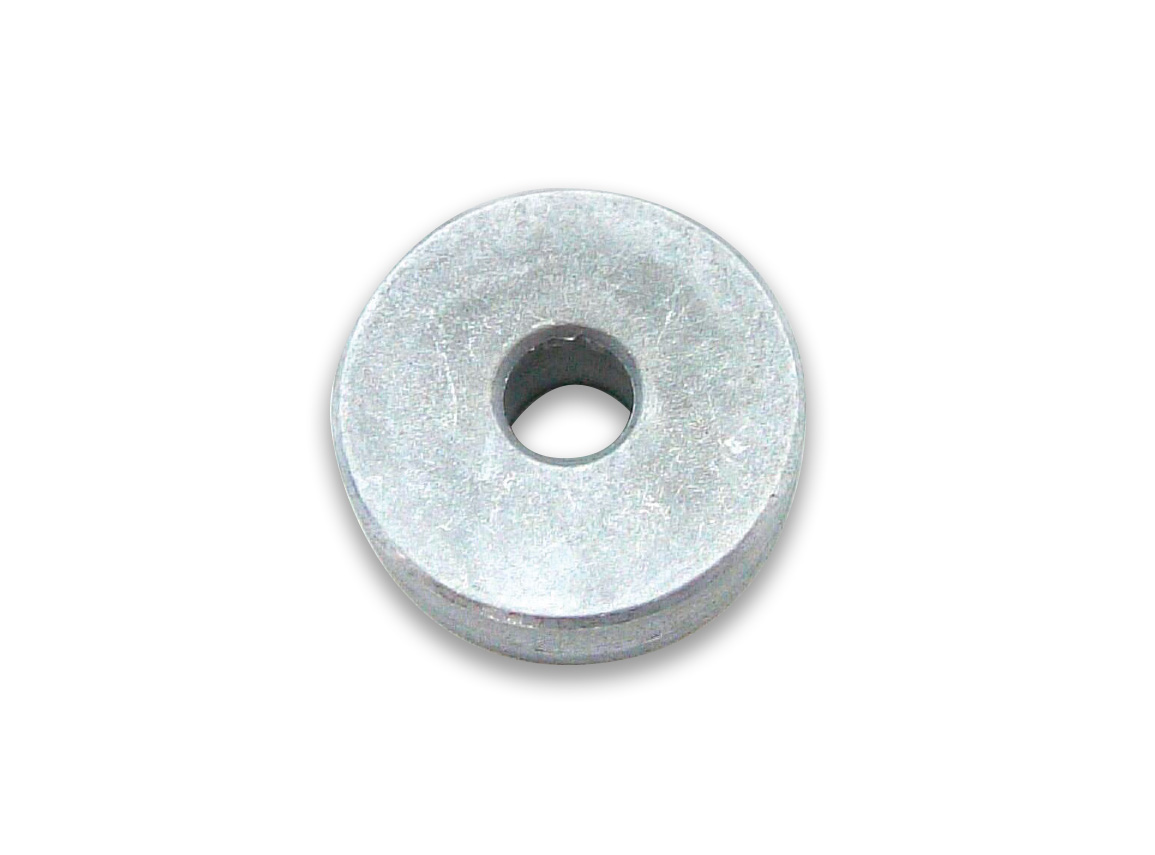

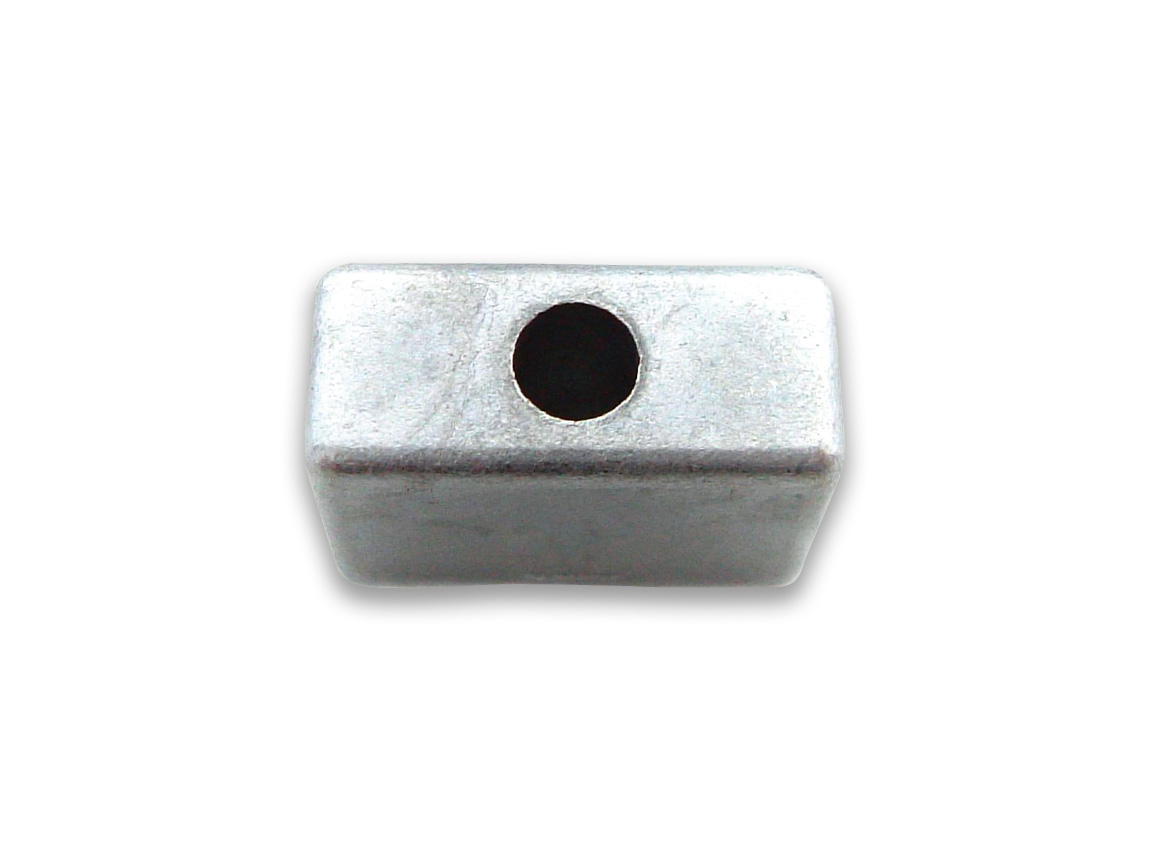

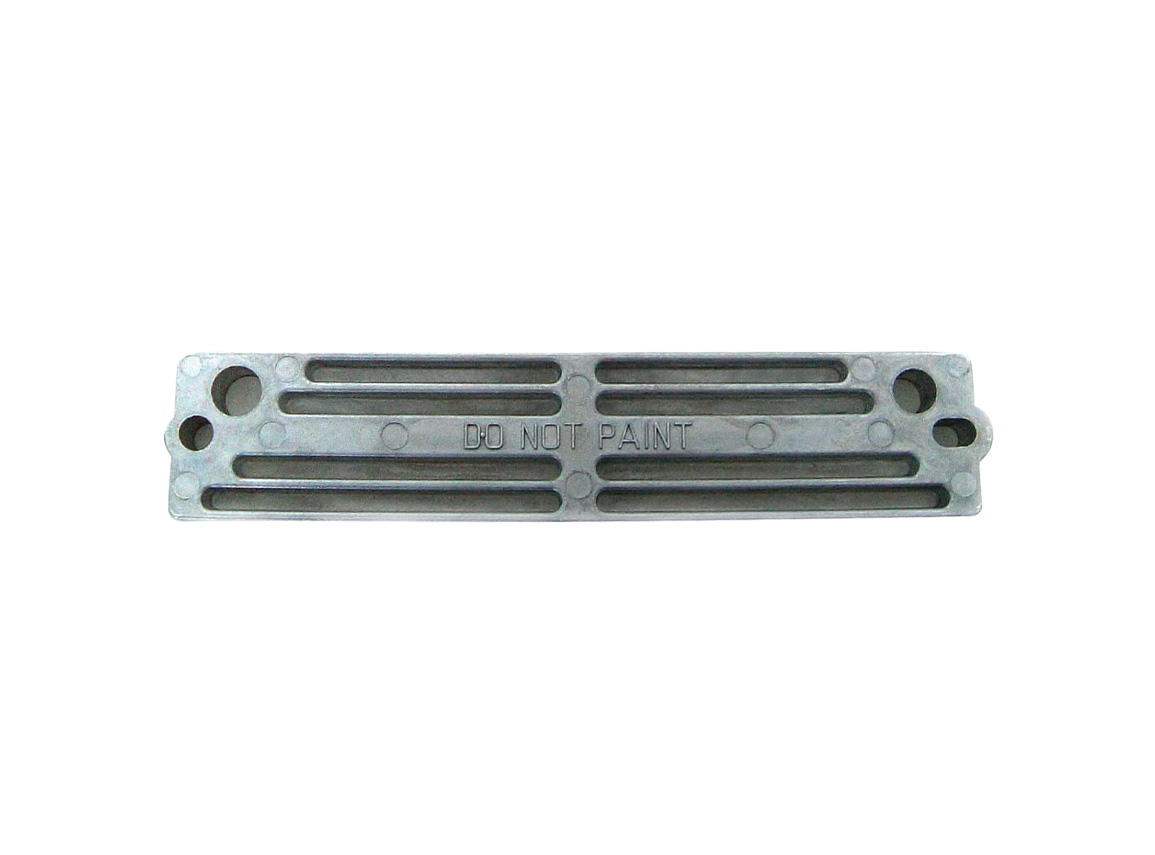

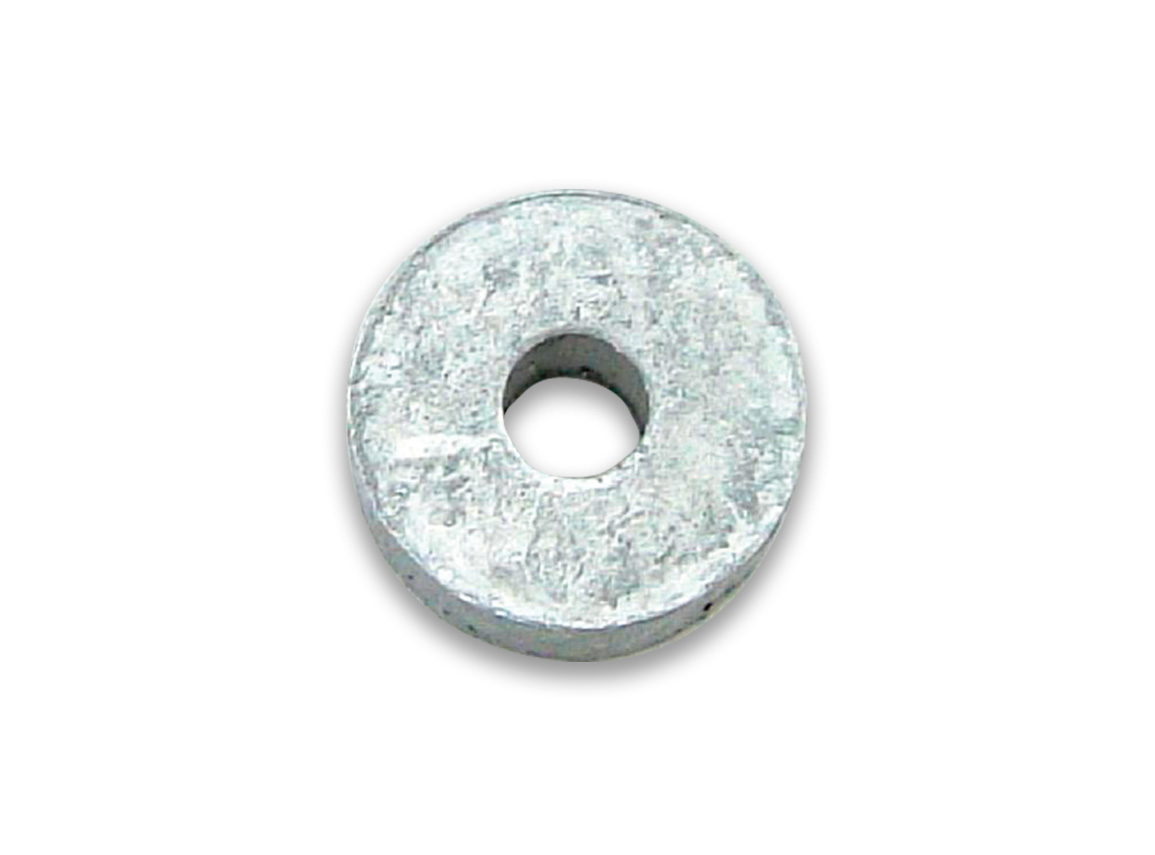

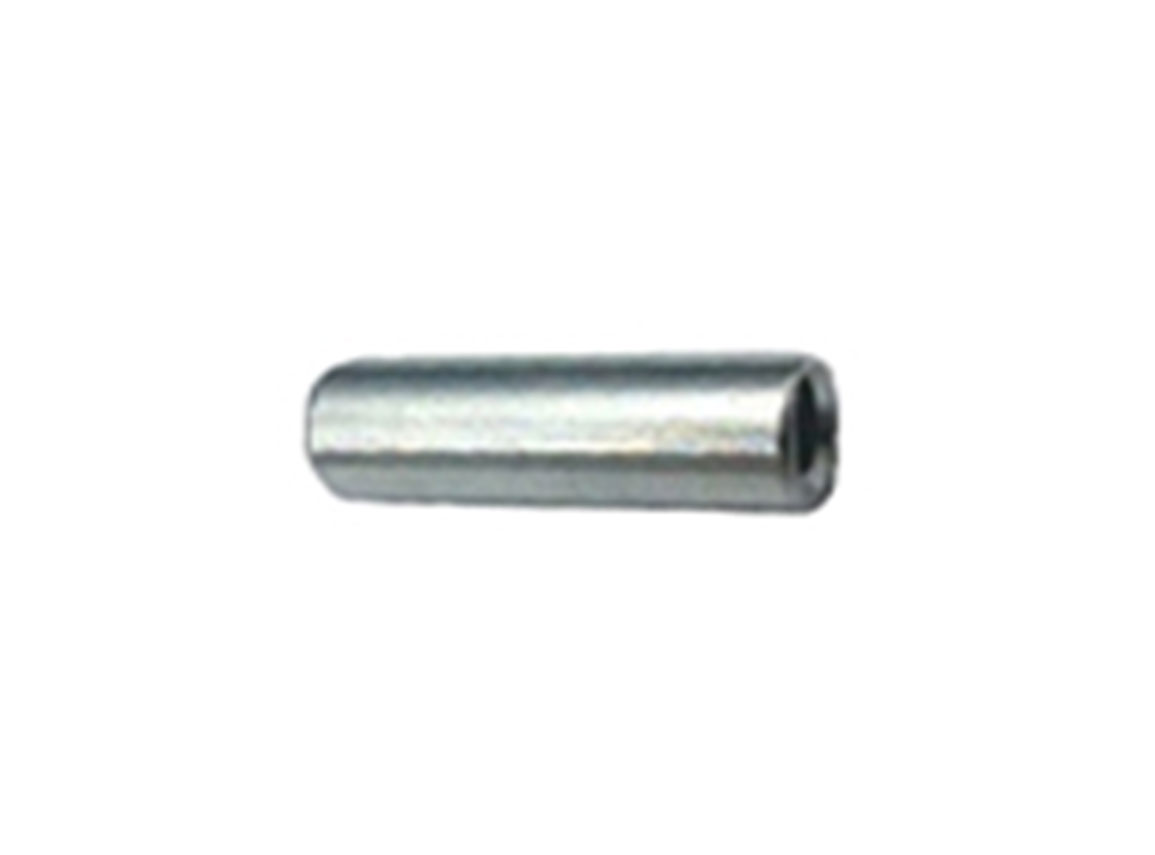

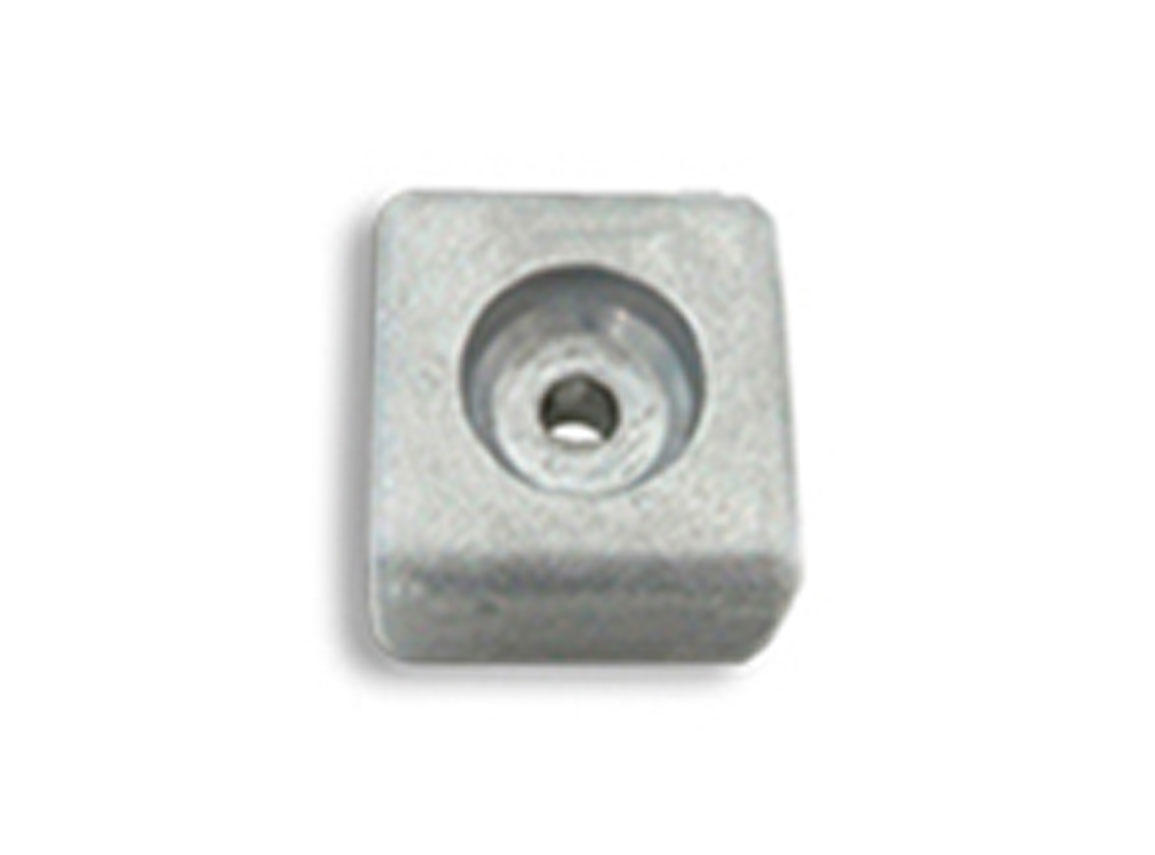

Anode
Easy to replace zinc anode protects your motor from galvanic corrosion in saltwater environments.



 Part Number

Applicable Models Location
 338-60218-2 M2.5/3.5/8/9.8 (2-Stroke) Mounts under cavitation plate
  25-70hp (2-St) & 40/50 (TLDI) Inside the water passage

Anode
Easy to replace zinc anode protects your motor from galvanic corrosion in saltwater environments.



 Part Number

Applicable Models Location
 3B7-60218-1 M40D2/M50D2 (Manual Tilt) Mounts on bottom of stern bracket
  70-140hp (2-Stroke & TLDI)
MFS40/50A (4-Stroke)
Inside the water passage

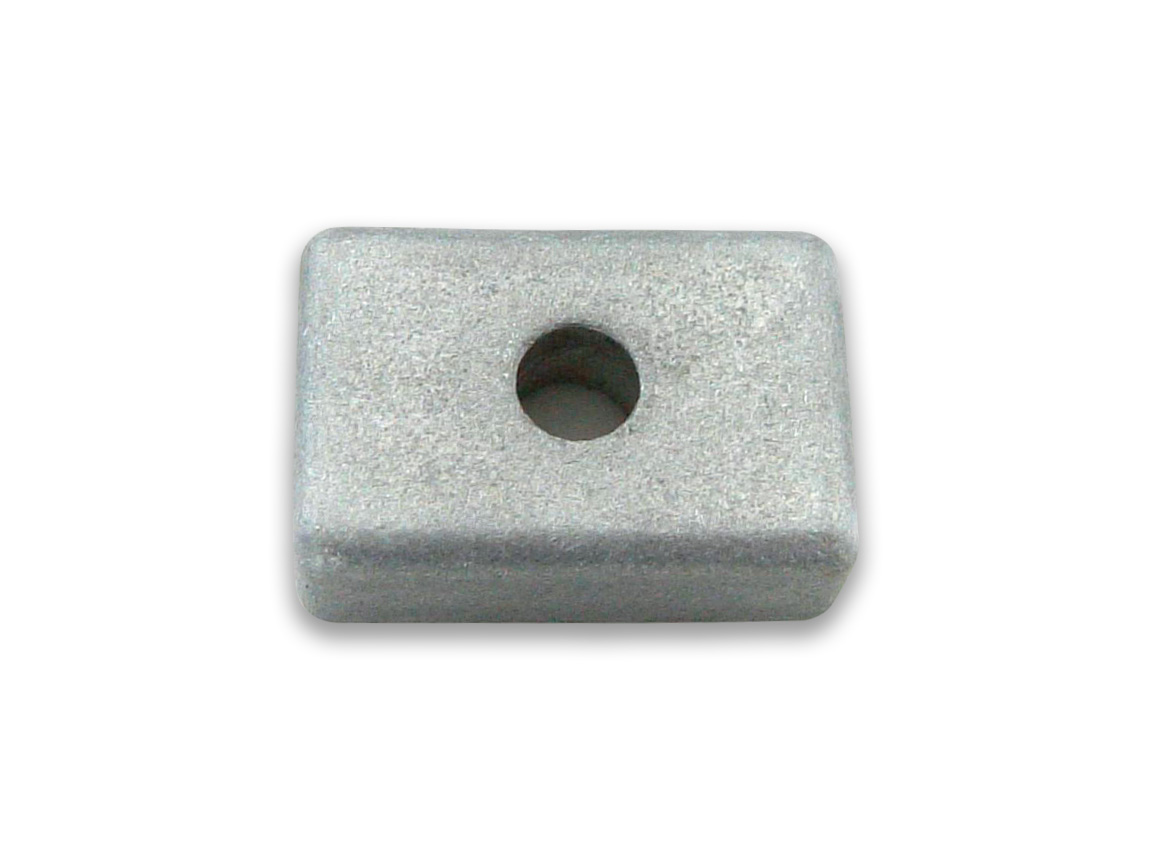

Anode
Easy to replace zinc anode protects your motor from galvanic corrosion in saltwater environments.



 Part Number

Applicable Models Location
 3H6-60218-0 4-6hp (2-Stroke& 4-Stroke)* Mounts on side of cavitation plate.
  MFS40/50A 4-Stroke Bracket (2)

(*Note: for 5B 2-stroke prior to serial #16748, use 369-60218-1 [round anode].)

Anode
Easy to replace zinc anode protects your motor from galvanic corrosion in saltwater environments.



 Part Number

Applicable Models Location
 3KY-60218-0 MFS40/50A 4-Stroke Lower unit (2)

Anode
Easy to replace zinc anode protects your motor from galvanic corrosion in saltwater environments.



 Part Number

Applicable Models Location
 3P0-60218-0 MFS40/50A 4-Stroke Inside the water passages (3)

Anode
Easy to replace zinc anode protects your motor from galvanic corrosion in saltwater environments.



 Part Number

Applicable Models Location
 3V9-60218-0 M9.9-20hp (2 -St & 4-St)* Mounts under cavitation plate.

(*Note: fits 15/18hp 4-stroke from serial #019935XC ~ #019256XD.)

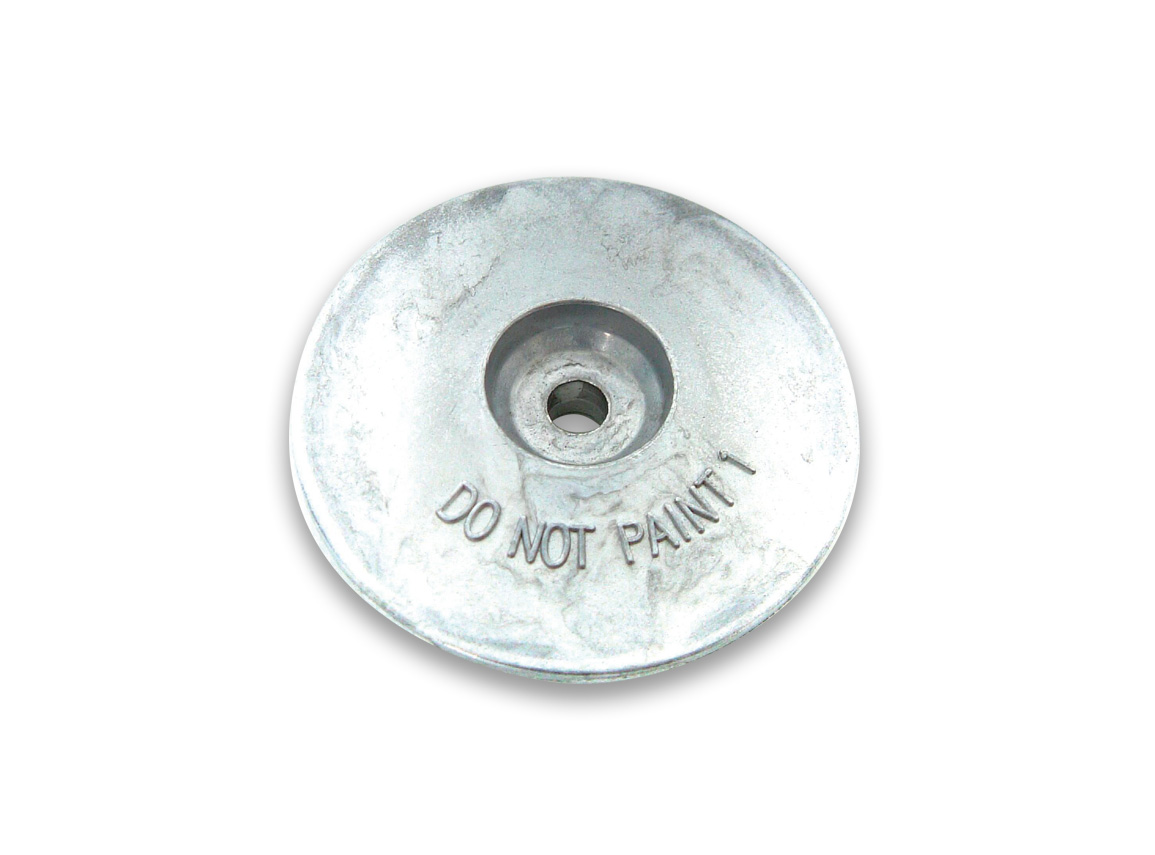

Anode
Easy to replace zinc anode protects your motor from galvanic corrosion in saltwater environments.



 Part Number

Applicable Models Location
 369-60218-1 MFS8/9.8/9.9/15/18/20/25/30 (4-Stroke)* Inside the water passage.
  MD75/90C2 TLDI Exhaust plate

(*Note: also fits 5B 2-stroke prior to serial #16748.)

Anode
Easy to replace zinc anode protects your motor from galvanic corrosion in saltwater environments.



 Part Number

Applicable Models Location
 3C7-60218-2 M40D2 - M140A2 w/PTT 2-Stroke & all TLDI models Mounts on bottom of stern bracket.

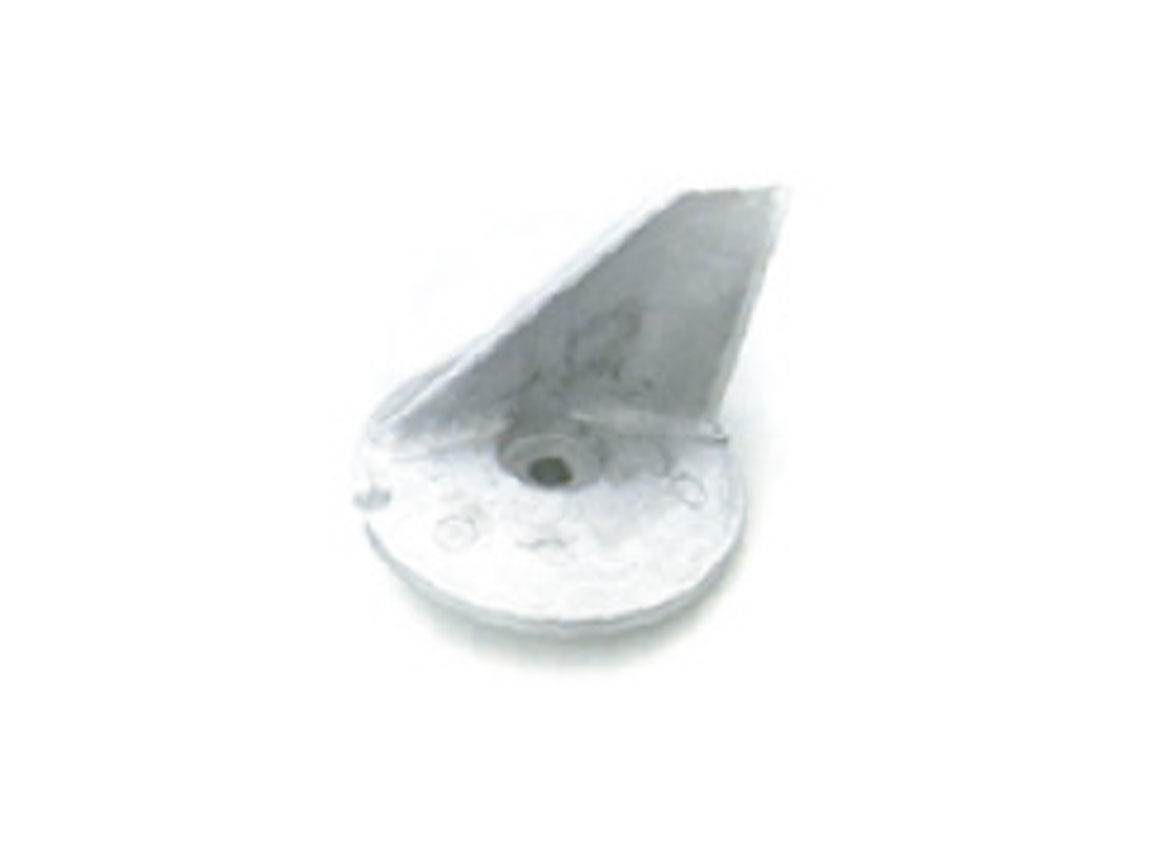

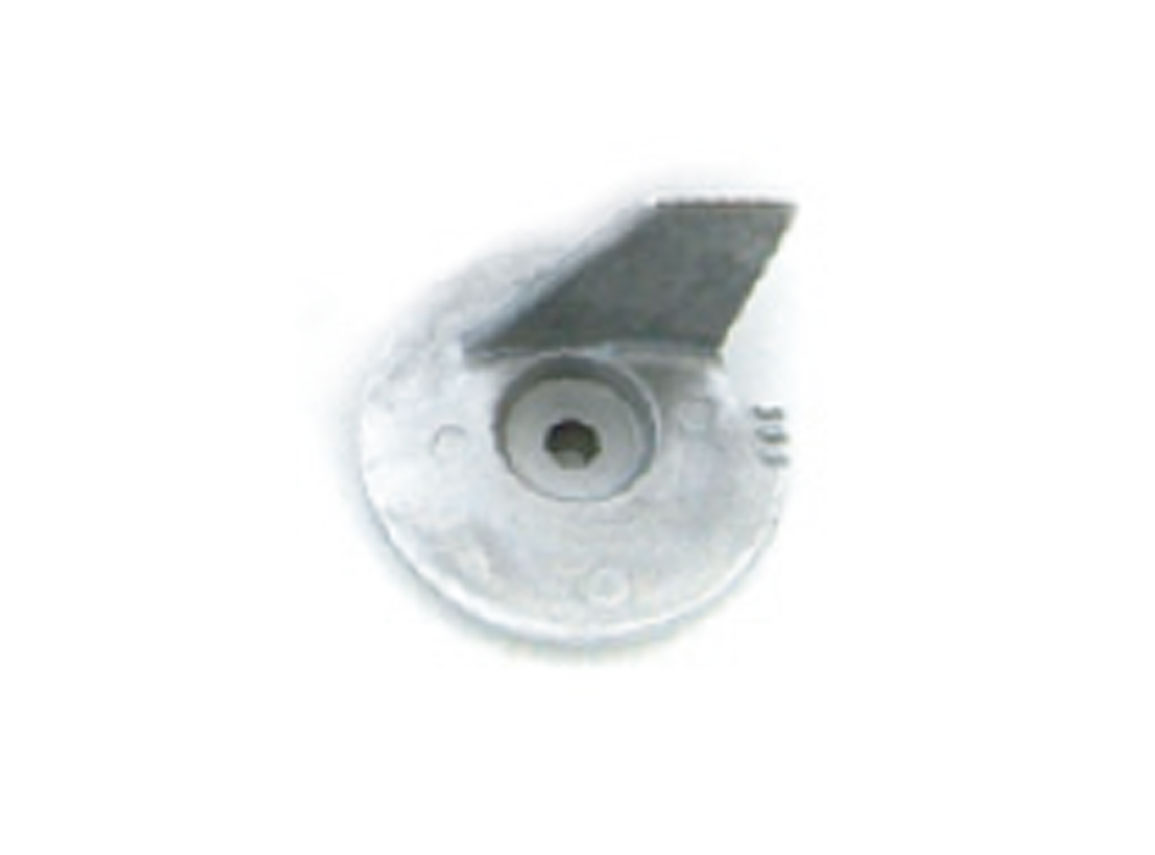

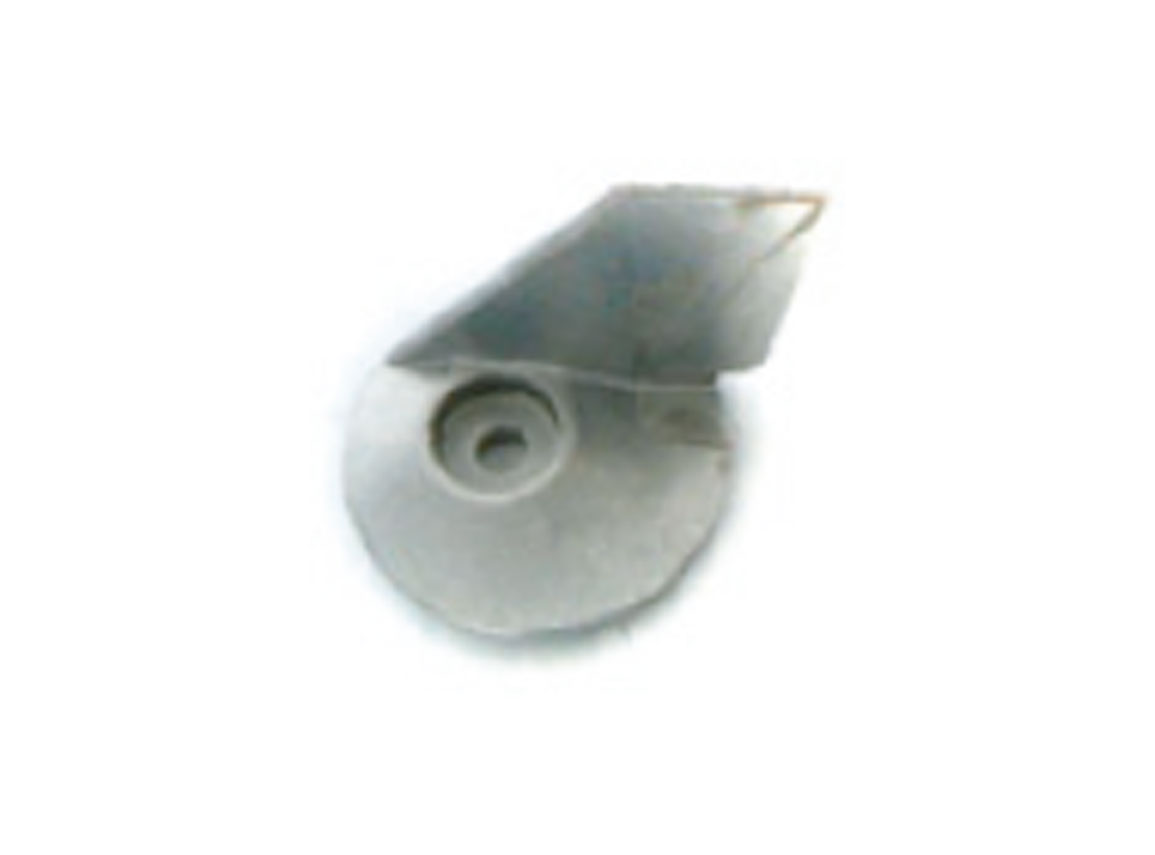

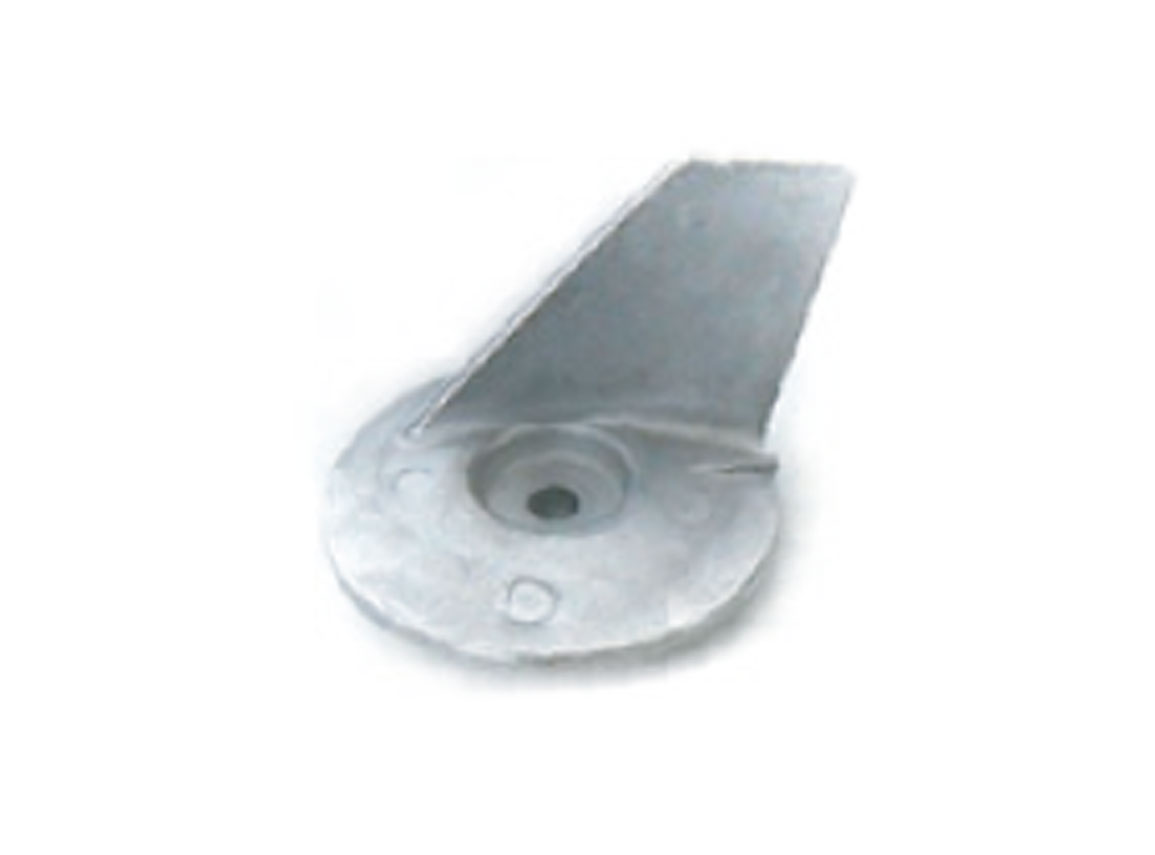

Trim Tab
Made of sacrificial anode metal, trim tabs protect the engine from corrosion and reduce propeller torque for easier steering.



 Part Number

Description Applicable Models

 3C8-60217-1

Trim Tab

M25C3 through MD50B2

Trim Tab
Made of sacrificial anode metal, trim tabs protect the engine from corrosion and reduce propeller torque for easier steering.



 Part Number

Description Applicable Models

 3V1-60217-0

Trim Tab

MFS8/9.8/15/18/20* (4-Stroke)

(*Note: fits 15hp/18hp 4-stroke from serial #023985XD and higher.)

Trim Tab
Made of sacrificial anode metal, trim tabs protect the engine from corrosion and reduce propeller torque for easier steering.



 Part Number

Description Applicable Models

 348-60217-0

Trim Tab

M40C (2-Stroke)

Trim Tab
Made of sacrificial anode metal, trim tabs protect the engine from corrosion and reduce propeller torque for easier steering.



 Part Number

Description Applicable Models

 3B7-60217-1

Trim Tab

M60C - M140A2 (2-St) & MD70-115 (TLDI)

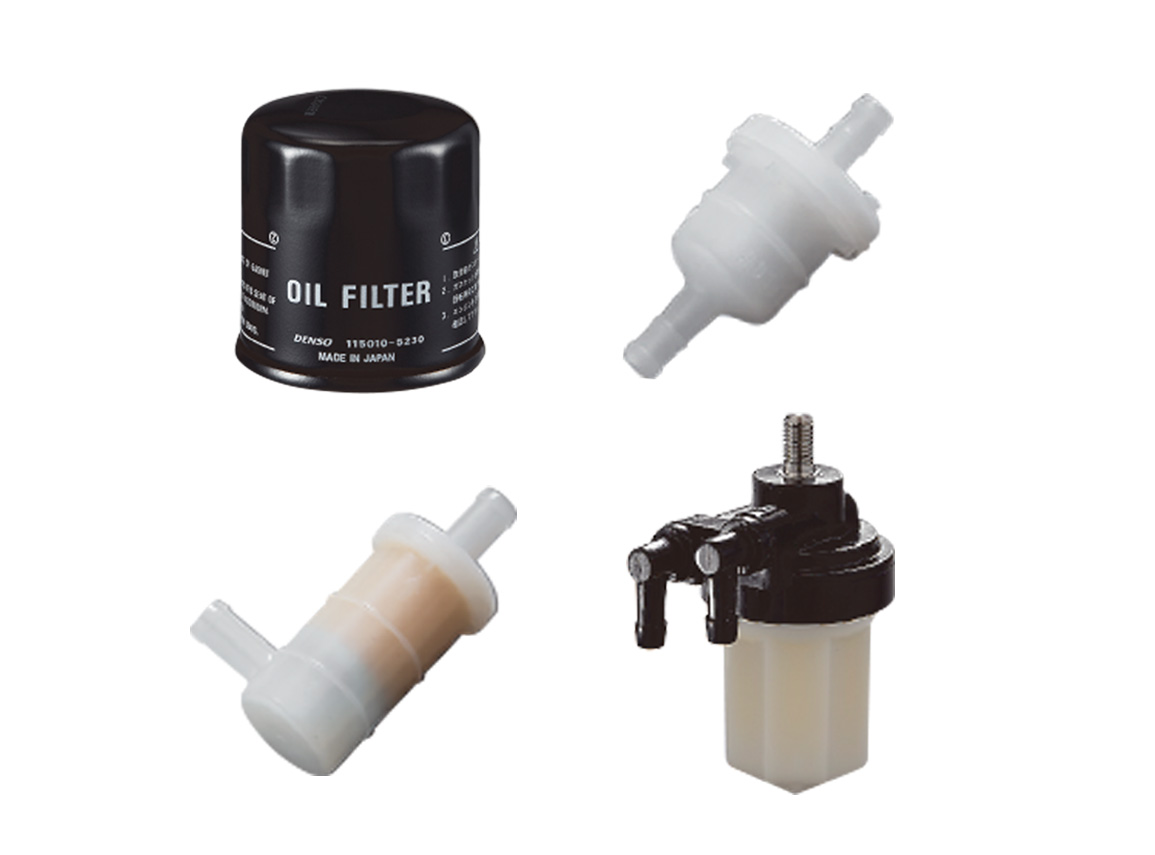

Replacement Filters
Tohatsu offers a variety of replacement fuel, air and oil filters to keep your outboard running at peak performance.



 Part Number

Description Applicable Models
 3T5-10130-0 Air Filter for Compressor 40-90A & B, 115A TLDI
 3GF-10130-0 Air Filter for Compressor 40/50B2, 75/90C2, 115A2 TLDI
 369-02230-0 Fuel Filter 5B & 8B/9.8B 2-Stroke
 369-02230-0 Fuel Filter 4/5/6/8/9.8/9.9/15/18/20/25A/30A 4-Stroke
 346-02230-0 Fuel Filter 9.9/15/18/25C/30A/40C/50C/60A/70A2 2-St.
 3AC-02230-0 Fuel Filter 25B/30B (EFI models) 4-Stroke
 3B7-02230-0 Fuel Filter 40D/50D/60B/60C/70B/70C/90A 2-Stroke
 3T5-02230-0 Low Pressure Fuel Filter 40/50, 70/90A, 70/90B TLDI
 3T5-B101430 High Pressure Fuel Filter 40 - 115 TLDI
 3T1-02230-0 Low Pressure Fuel Filter 75/90C2, 115 TLDI
 3C7-02230-0 Fuel Filter 115A/120A/140A 2-Stroke
 3R0-07615-0 Oil Filter MFS9.9 - 50 (4-stroke)
 HPFB-15400-014 Oil Filter BFT60 (4-stroke)

 HPLM-15400-A01PE

Oil Filter BFT75-250 (4-stroke)

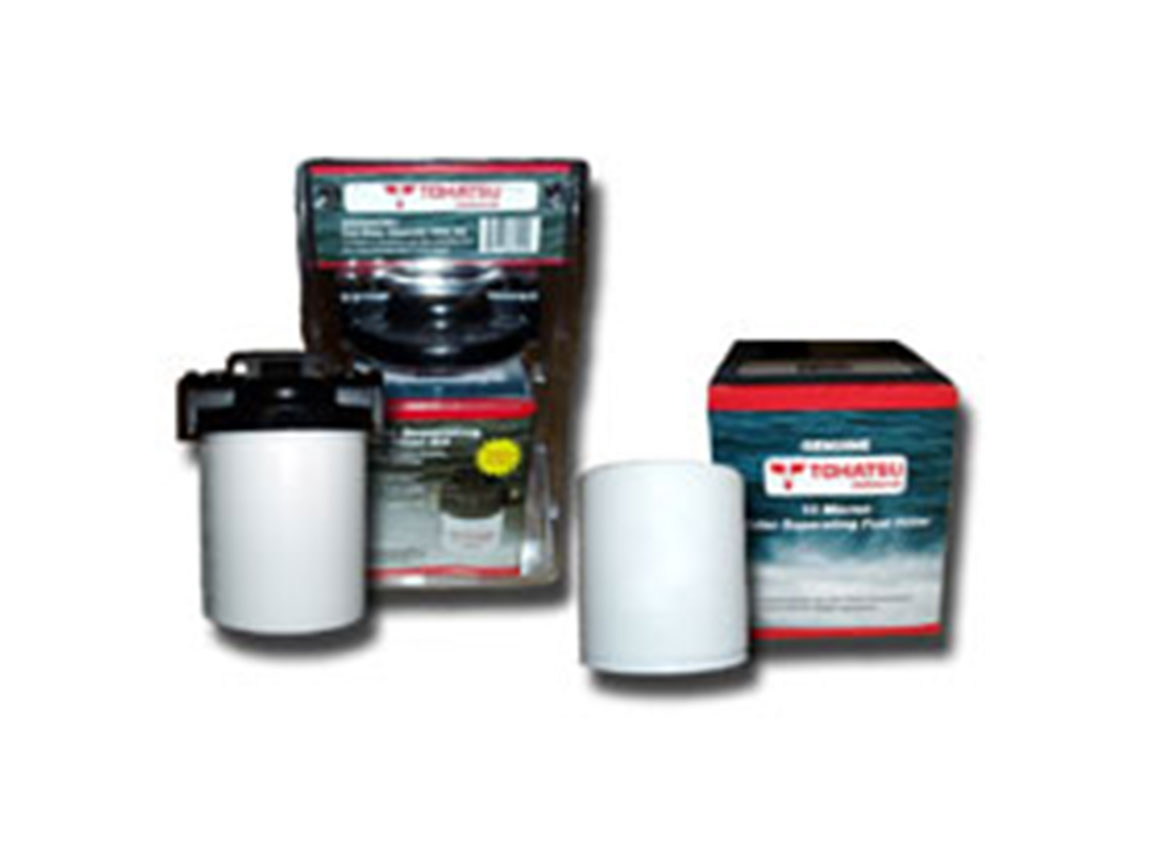

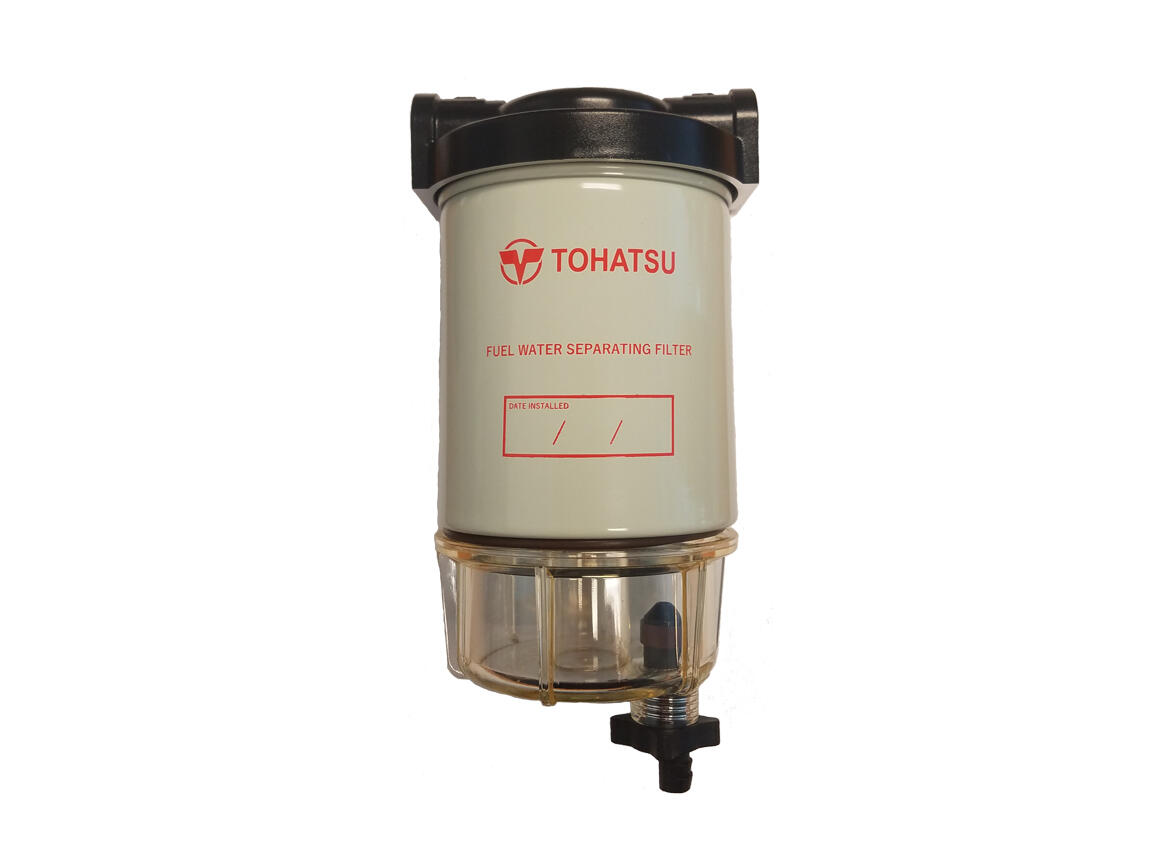

Water/Fuel Separator Filter
Easily connected between your fuel tank and engine, the 10 micron filter traps over 98% of the water that may be present in the fuel tank before it reaches your engine. This prevents moisture from damaging the critical engine parts such as the electric fuel feed pump and the fuel injection system or carburetors. This is especially important with today's ethanol based fuels which attracts water more easily than regular fuels.
1/4" NPT fittings required (not included)



 Part Number

Description

 99999-37851

Water/Fuel Separator kit (includes one filter)

 3Y902-2340M

Replacement 10 micron filter

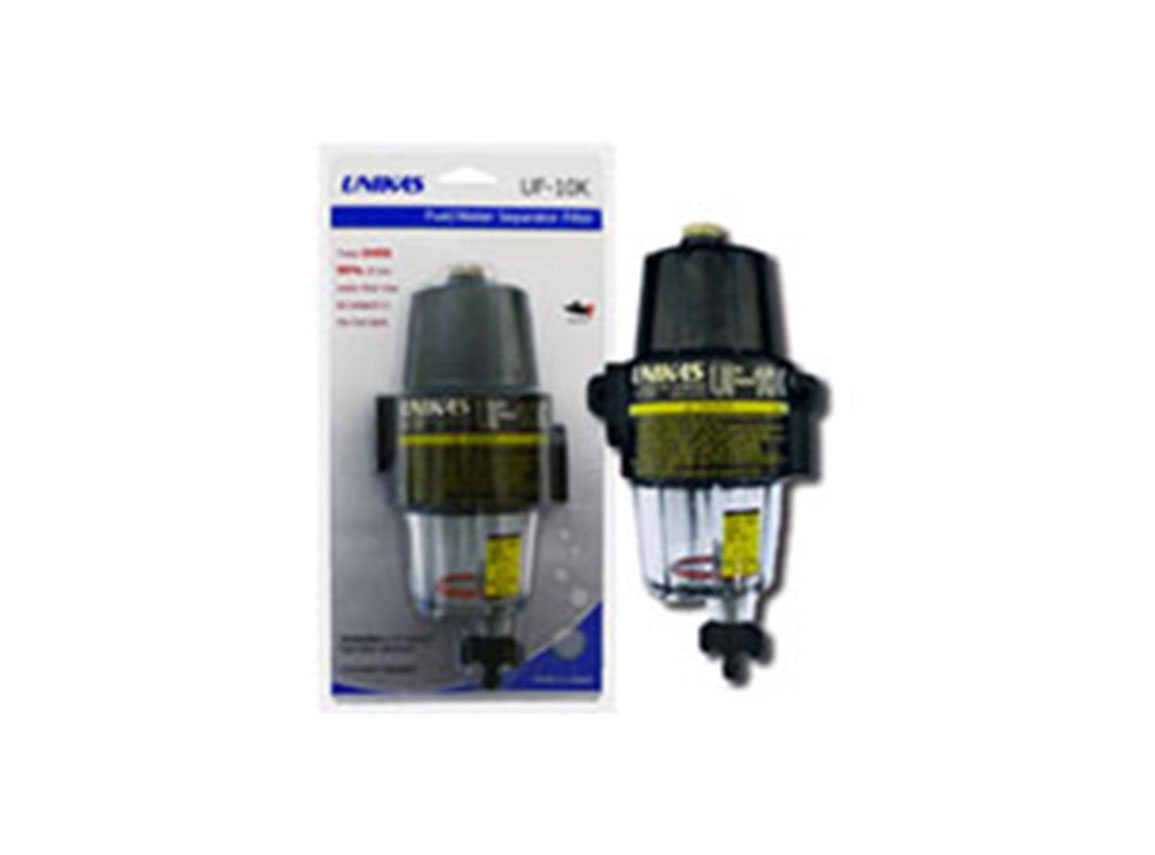

The Unikas Water/Fuel Separator Filter installs between your fuel tank and engine and is designed to trap 99% of any water that may be present in the fuel. Unlike traditional water/fuel separators, Unikas separators feature a transparent bowl with floating ring to quickly see at a glance how much water has been trapped. Also features a drain screw allowing the user to drain any accumulated water without having to remove the filter. Approved and recommended for use with ethanol blended fuels. Kit includes one 10 micron filter and connectors. Fits all outboard brands with a maximum fuel flow up to 31 gallons/hour (117 liters/hour).



 Part Number

Description

 99999-UF10K

UNIKAS UF-10 Water/Fuel Separator Kit (includes one filter)

 99999-UF10RF

Replacement 10 micron filter for Unikas UF-10K (includes replacement o-ring)

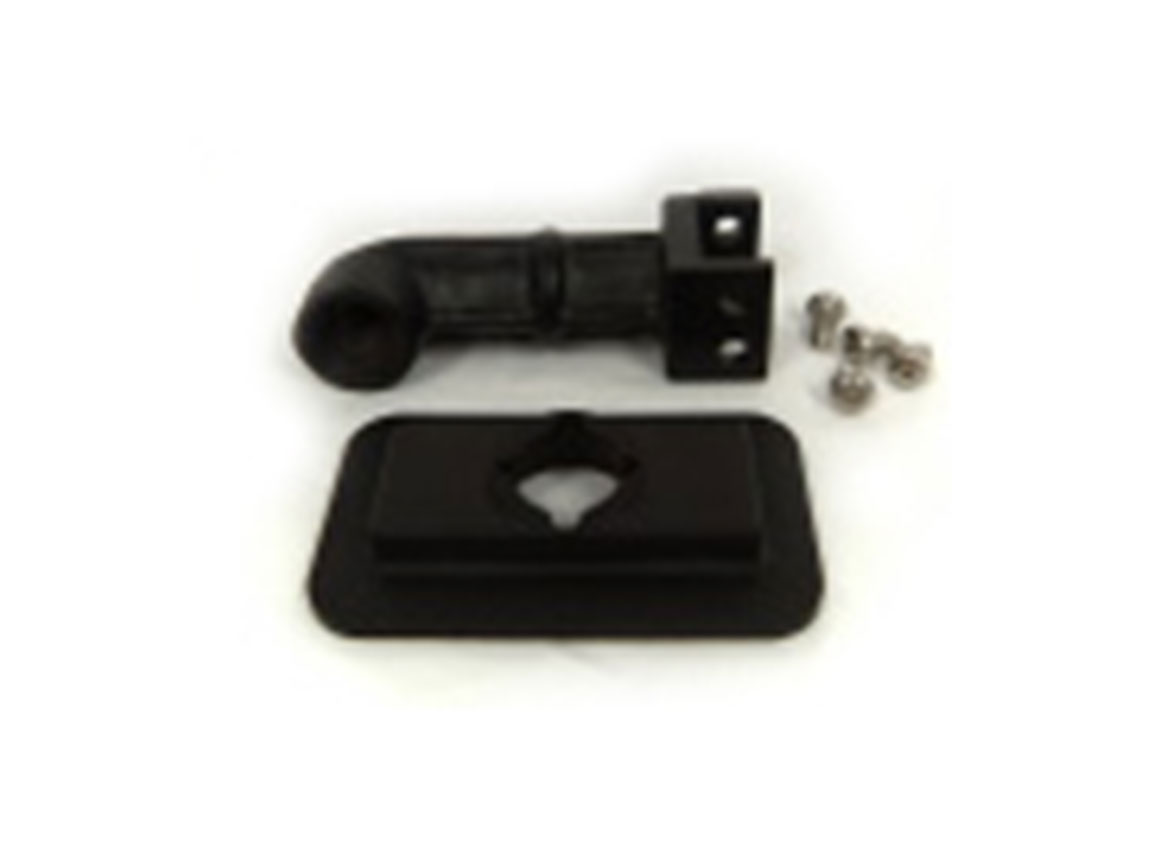

Vertical Starting Device Kit
Converts a manual start from a horizontal to vertical direction pull.



 Part Number

Description Applicable Models

 399-B05180-0

Vertical Starting Device Kit

M4C/5B (2-Stroke) & MFS4/5/6B (4-Stroke)

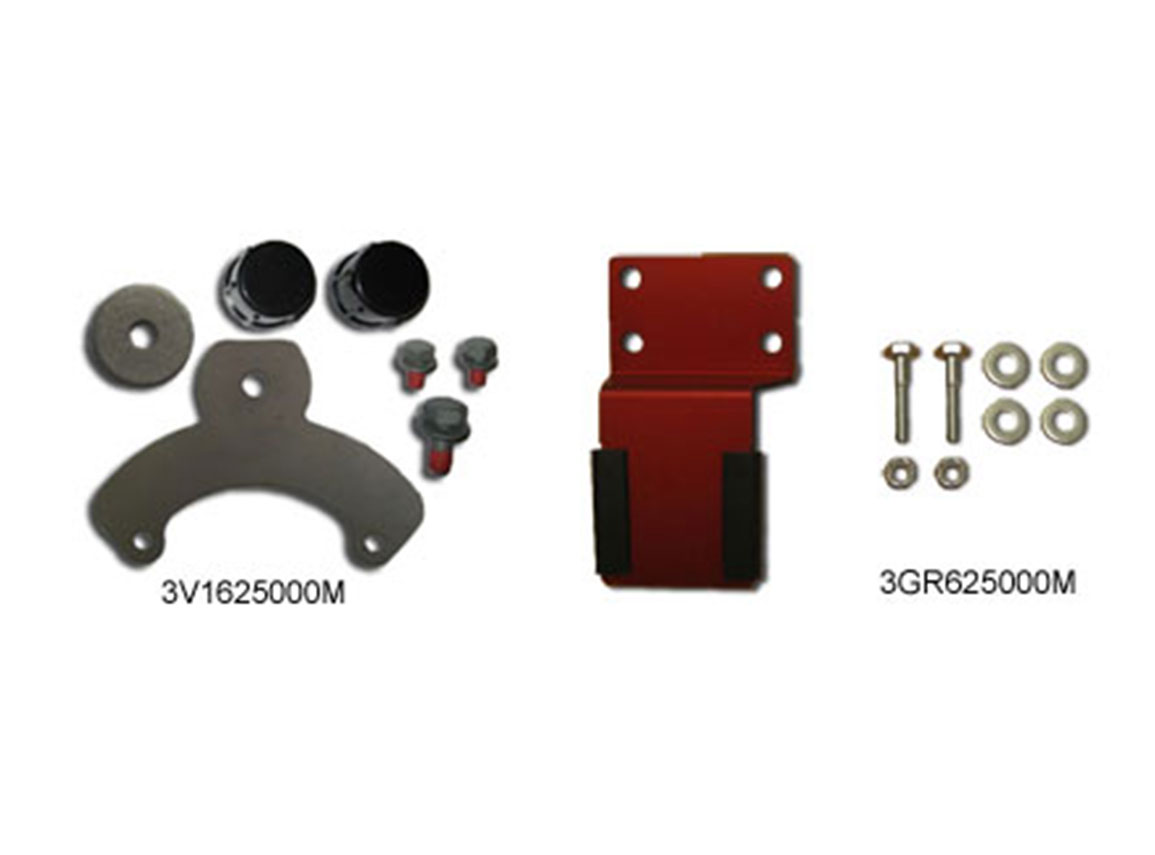

Steering Lock Kit
Kit allows motor to be locked into a fixed position to allow boat to be steered using the boat's rudder. Perfect for sail boaters that want to use their rudder to steer instead of the motor. Kit includes locking bracket, all necessary hardware and installation instructions.

Caution: Once installed, the motor is locked in place and the tiller handle cannot be used to steer the boat unless kit is removed.



 Part Number

Applicable Models

 3GR625000M

4/5/6hp - Fits "B" and "C" 4-stroke models only

 3V1625000M

8/9.8hp - Fits "remote" (EP or EPT) 4-stroke models only
