GAUGES

A variety of Tohatsu gauges are available through your local dealer; hour meters, volt meters, water pressure meters, speedometers, tilt/trim gauges, and tachometers. All manufactured to Tohatsu's precision standards. Listed below is just a sample of gauges offered. Contact your dealer for a complete list of all Tohatsu gauges available for your outboard.

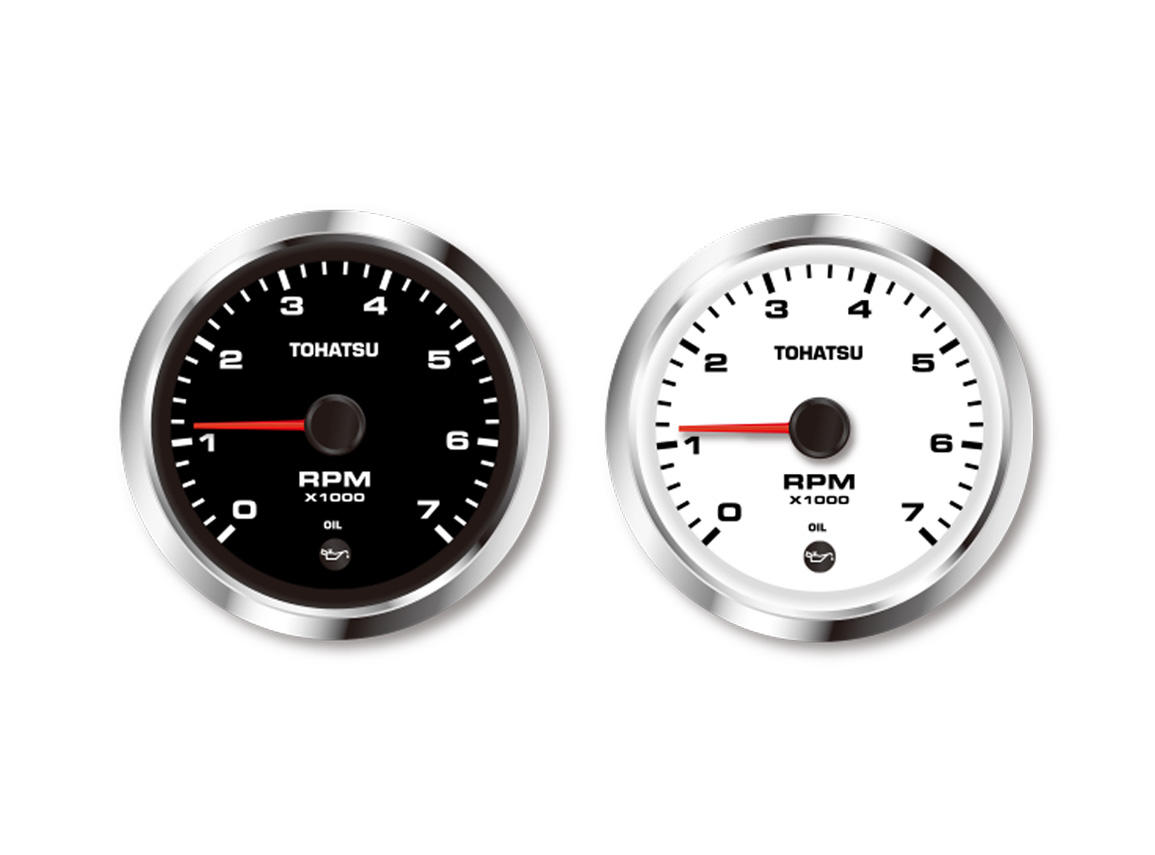

Tachometers

These 7,000 RPM tachometers (4" diameter) have a chrome bezel, are back-lit for easy viewing at night/dusk. Features a domed lens to minimize glare in direct sunlight and a fog and scratch resistant coating. "MFS 4-Stroke(models shown in the chart below) 2-stroke Auto Mixing Oil Model" tachometer includes low oil warning light. "BFT" tachometer Includes a built-in digital Hour Meter to automatically track engine hours. A great feature to make it easy to keep up with maintenance intervals.

Part Number Color Description
3PA-72638-2 Black (1 LAMP) MFS6/8/9.8B
MFS9.9/15/20E
MFS25/30D
MFS40/50/60A
MFS75/90/100/115/140A (4-Stroke)
& 2-stroke Auto Mixing Oil Models
3PB-72638-2 White (1 LAMP) MFS6/8/9.8B
MFS9.9/15/20E
MFS25/30D
MFS40/50/60A
MFS75/90/100/115/140A (4-Stroke)
& 2-stroke Auto Mixing Oil Models
3PV-72637-2 Black BFT model (4-Stroke)
3PU-72637-2 White BFT model (4-Stroke)
3UR-72647-3 Black (3 LAMP) TLDI Models
3WA-72647-3 White (3 LAMP) TLDI Models

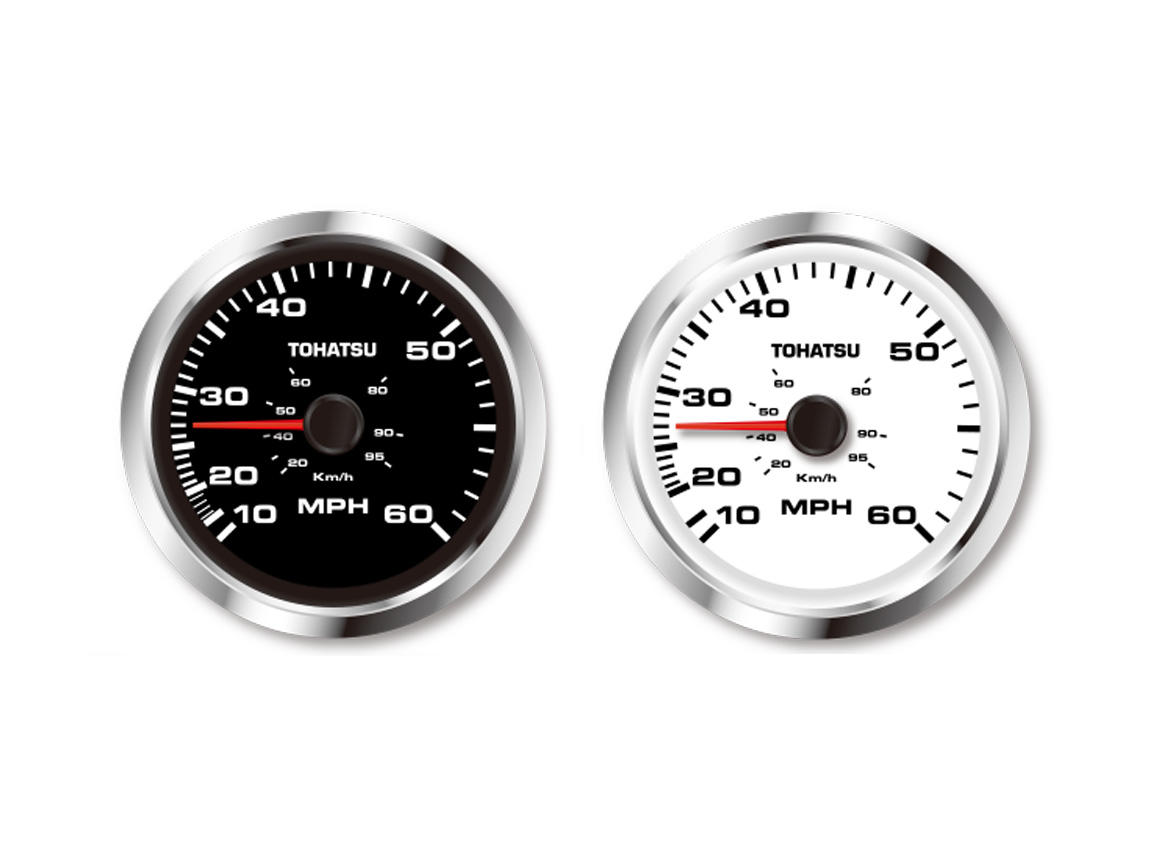

GPS Speedometers

GPS Speedometer (4'' diameter) has an internal GPS antenna, a chrome bezel and is back-lit for easy viewing at night/dusk. Features a domed lens to minimize glare in direct sunlight and a fog & scratch resistant coating.

Part Number Color Description
3KY-72682-1 Black 70 MPH 4" Diameter
3UW-72682-1 White 70 MPH 4" Diameter

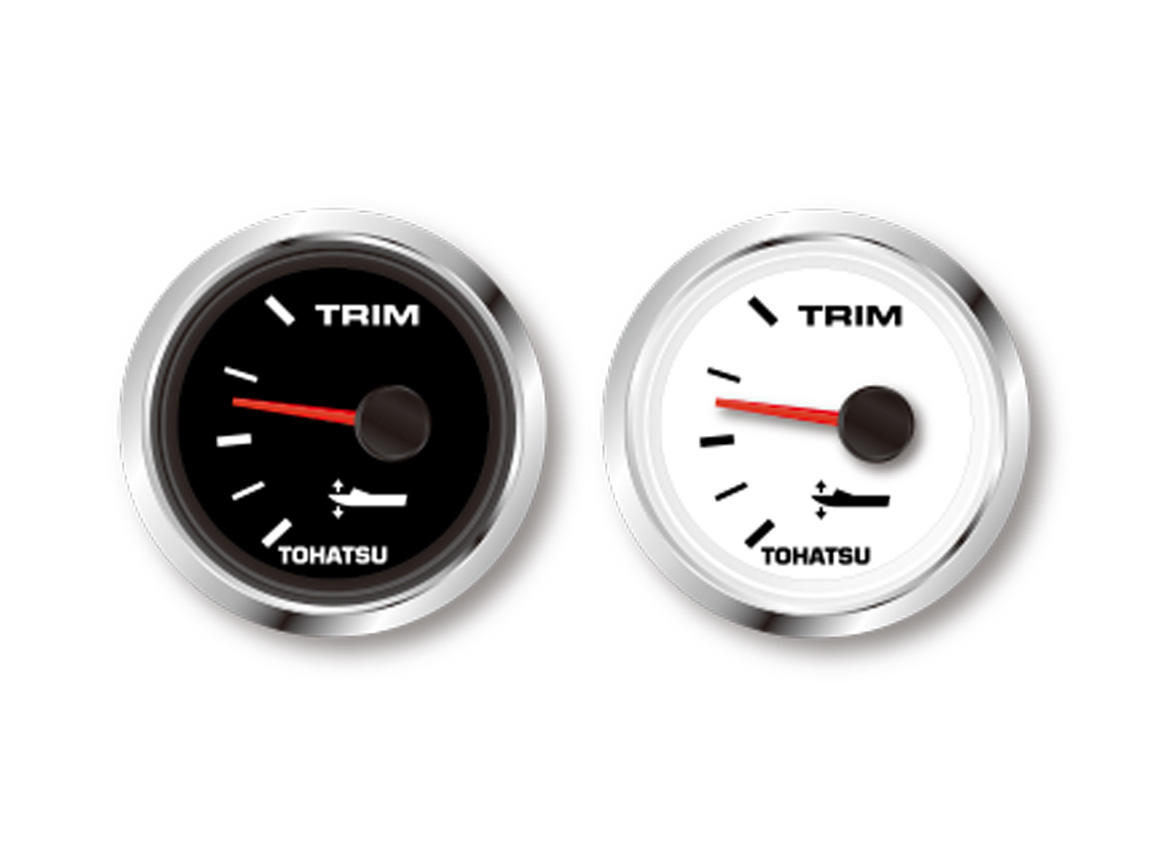

Trim Meter

Trim meter (2" diameter) shows angle of motor for optimum performance and efficiency. Features a domed lens to minimize glare in direct sunlight, a fog & scratch resistant coating and chrome bezel.

Part Number Color Description
3UR-72523-3 Black All Power Tilt models with 2-wire trim sender
3WA-72523-3 White All Power Tilt models with 2-wire trim sender
3PV-72571-3 Black For all BFT 60hp-250hp Power Tilt models
3PU-72571-3 White For all BFT 60hp-250hp Power Tilt models

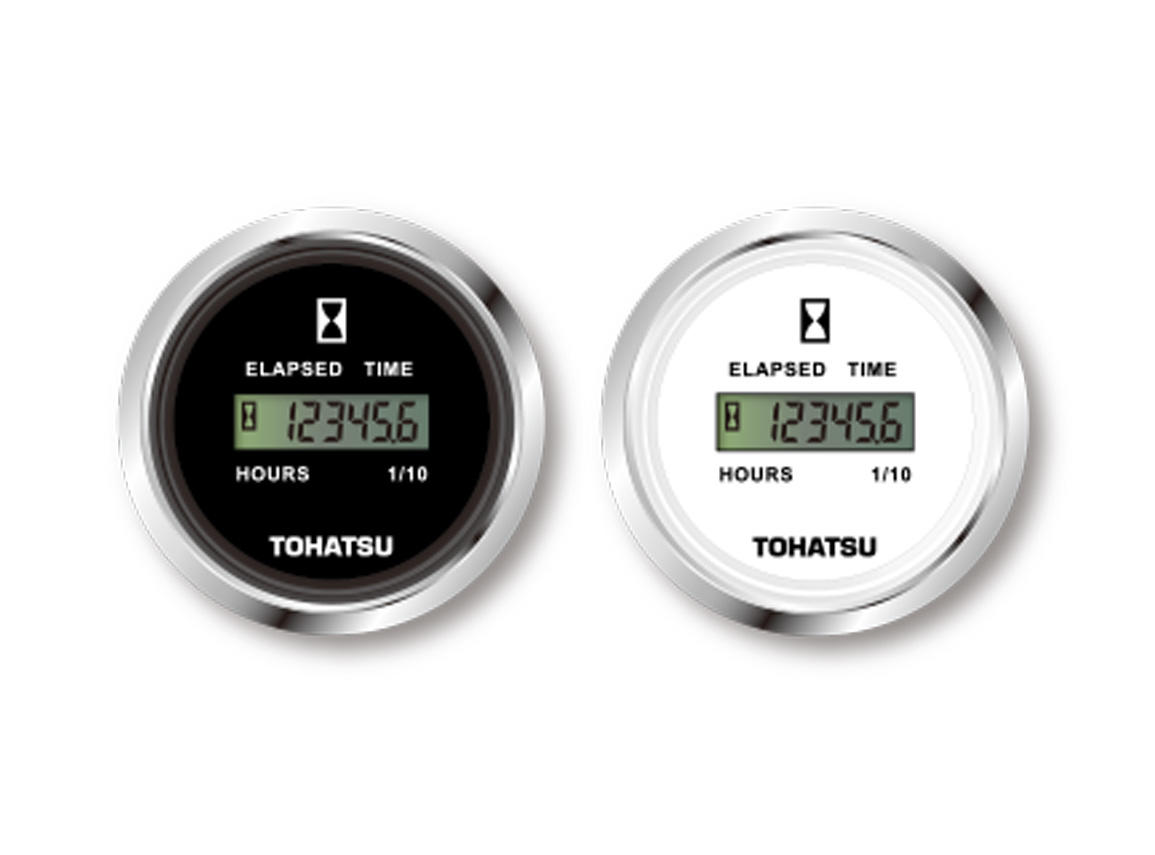

Hour Meters

Digital Hour Meter (2" diameter) keeps track of how many hours on your outboard. Features a domed lens to minimize glare in direct sunlight, a fog & scratch resistant coating and chrome bezel. For in-dash use only.

Part Number Color Description
3UR-72532-1 Black 2" Diameter
3WA-72532-1 White 2" Diameter

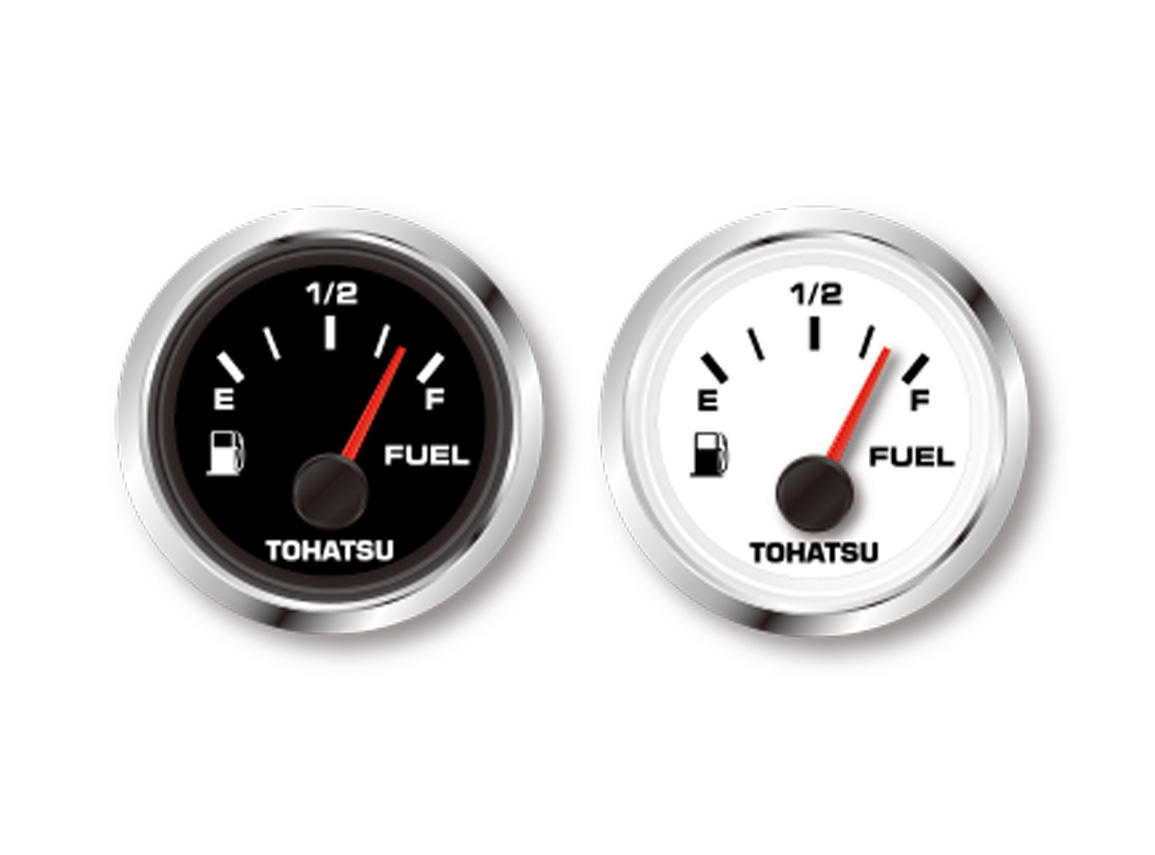

Fuel Gauges

Fuel Gauge (2" diameter) has a chrome bezel and is back-lit for easy viewing at night/dusk. Features a domed lens to minimize glare in direct sunlight and a fog & scratch resistant coating.

Part Number Color Description
3UR-72600-1 Black 2" Diameter
3WA-72600-1 White 2" Diameter

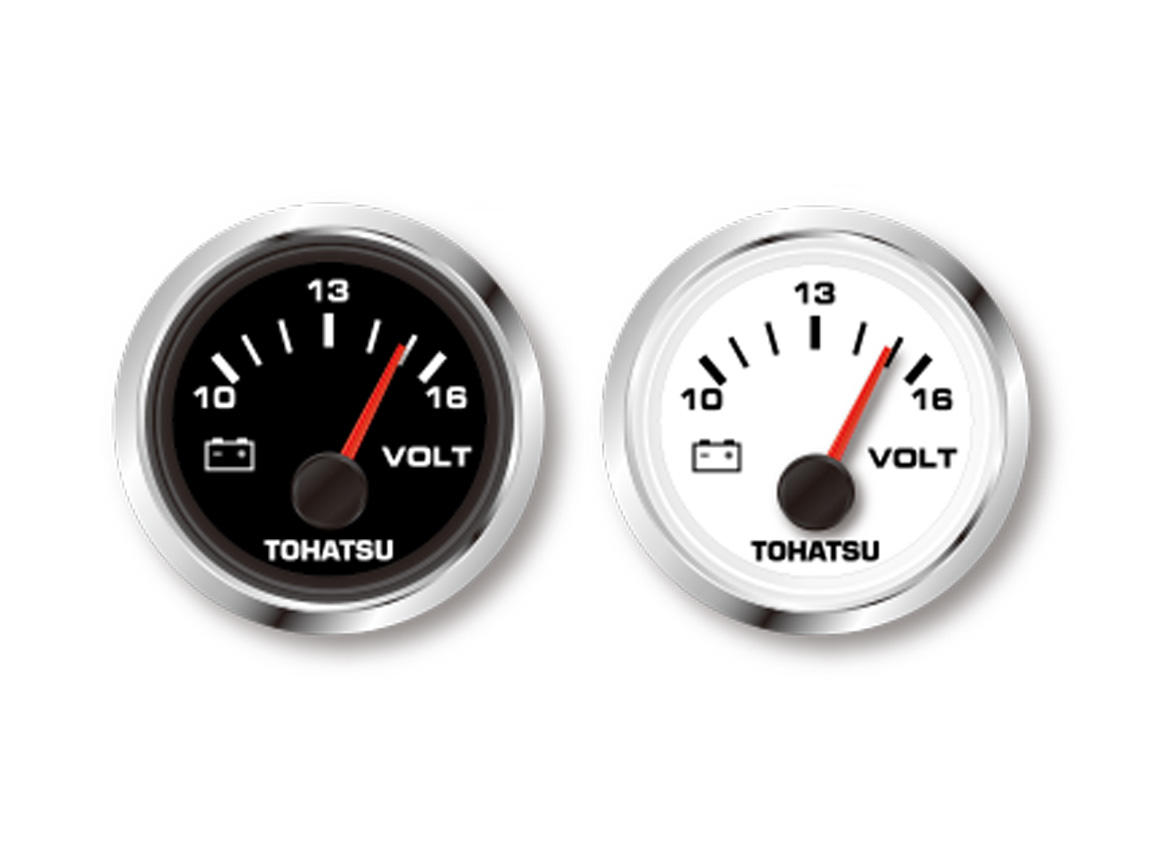

Volt Meters

Volt meter (2" diameter) has a chrome bezel and is back-lit for easy viewing at night/dusk. Features a domed lens to minimize glare in direct sunlight and a fog & scratch resistant coating.

Part Number Color Description
3UR-72531-1 Black 2" Diameter
3WA-72531-1 White 2" Diameter

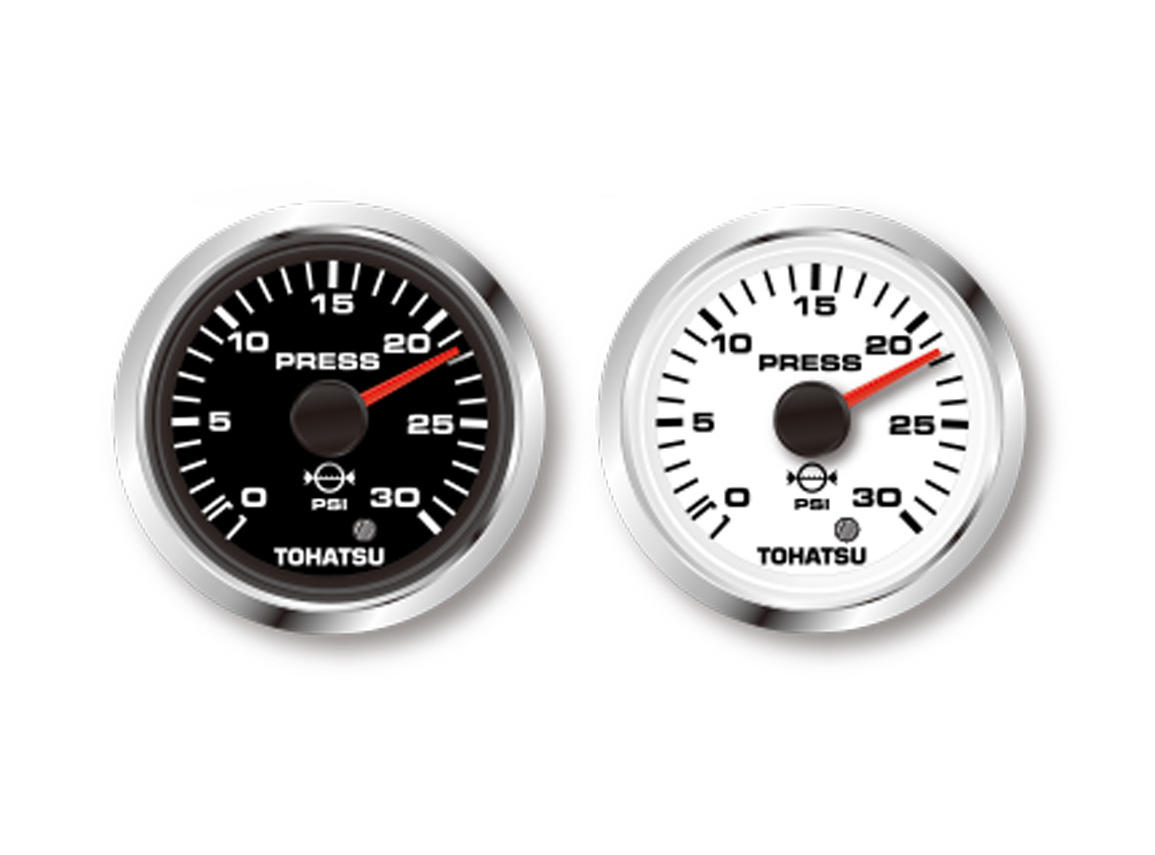

Water Pressure Meters

Water Pressure gauge (2" diameter) has a chrome bezel and is back-lit for easy viewing at night/dusk.
Features a domed lens to minimize glare in direct sunlight and a fog & scratch resistant coating.
Includes hose and t-nipple.

Part Number Color Description
3UR-72527-2 Black MFS40/50/60A (4-Stroke)
3WA-72527-2 White MFS40/50/60A (4-Stroke)
