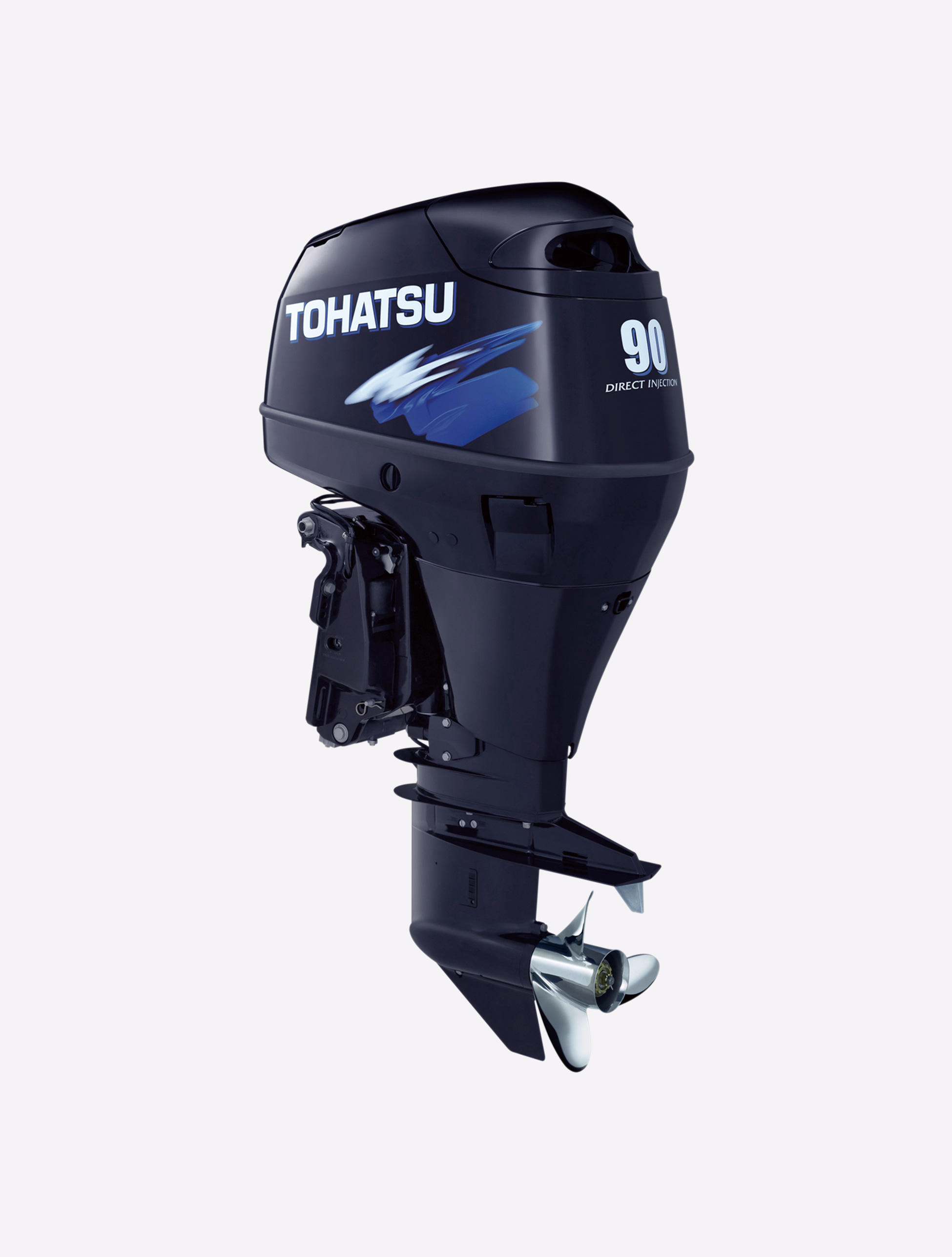

The Tohatsu 90hp TLDI® outboard is one of the premier members of our new generation of direct injection outboards. We developed our TLDI® line of outboards to provide consumers with the best possible choice for environmentally conscious yet powerful outboards. We have all of that and more in the 90 hp TLDI®.
The 90 hp TLDI® provides significant increases in fuel and oil economy while also providing a decrease in hydrocarbon emissions through the exhaust. This in turn gives you a clean, quiet, boat ride at a lessened operating cost. The Tohatsu 90hp TLDI® gives every boater a truly reliable outboard while providing advanced technology!
Tohatsu 90 hp TLDIR Benefits
- Air assisted direct fuel injection system that provides excellent fuel economy
- Extremely quiet operation
- Excellent horsepower-to-weight ratio
- Comes standard with a convenient built-in freshwater flush system that simplifies routine engine flushing
- Lightweight and compact
- Ultra-low emission, EPA and CARB approved
- 5 Year limited warranty
High Performance and Easy Operation
- Inductive ignition system for reliable starting
- Outstanding acceleration
- Electronic oil pump for more precise oil regulation throughout the rpm range
- Oil reservoir located on the top of the motor for quicker and easier refill onboard
- Multi-point oil injection system to more completely lubricate vital engine components
- Power Trim & Tilt
- Remote control box**
Fundamentals for User Convenience and Reliability
- Through-the-prop exhaust for a quieter ride
- Thermostatically controlled cooling system for consistent engine temperature
- Stainless steel water pump housing for outstanding durability
- High grade marine aluminum alloy that provides the ultimate protection against corrosion
- Zinc coating on internal water passages for superior corrosion resistance
- User adjustable idle and trolling speeds
- Tachometer and Trim & Tilt Gauge**
- Aluminum propeller
Warning & Protection
- Low oil level warning (visual and audible)
- Overheat warning (visual and audible)
- Battery voltage warning (visual only)
- Start-in-gear protection for safer engine starting
- Safety lanyard (an essential protection feature standard on all Tohatsu outboards)
- Over-rev. limiter
The TLDI® series are Tohatsu's award winning outboard motors that have an established reputation for being compact in size while demonstrating highly desired features such as low emissions and high fuel economy that are demanded by the new generation of boaters.
They are powered by a direct fuel injection system and a 32 bit ECU (Engine Control Unit). The ECU gives precise fuel injection instructions in accordance to the operating conditions detected by the multiple sensors located on the motor. The TLDI® outboard motors meets all of the emission regulations stipulated by EPA (Environmental Protection Agency) and CARB (California Air Resources Board).
Click here to read our TLDI® series "Frequently Asked Questions" page.
Engine Control Unit (ECU)
The 32 bit engine control unit controls the fuel injection and ignition timing for TLDI® outboards.
One of TLDI®'s essential engine components that is the driving force in achieving stabilized fuel injection.
Direct fuel Injection into Cylinders
Due to the intrinsic design of the chamber on the cylinder head, the finely atomized fuel mist created by the fuel injector is injected near the spark plug to achieve ideal combustion.
The tachometer informs the operator of potential problems through the meter indicator and warning lamp. (Remote models only.)

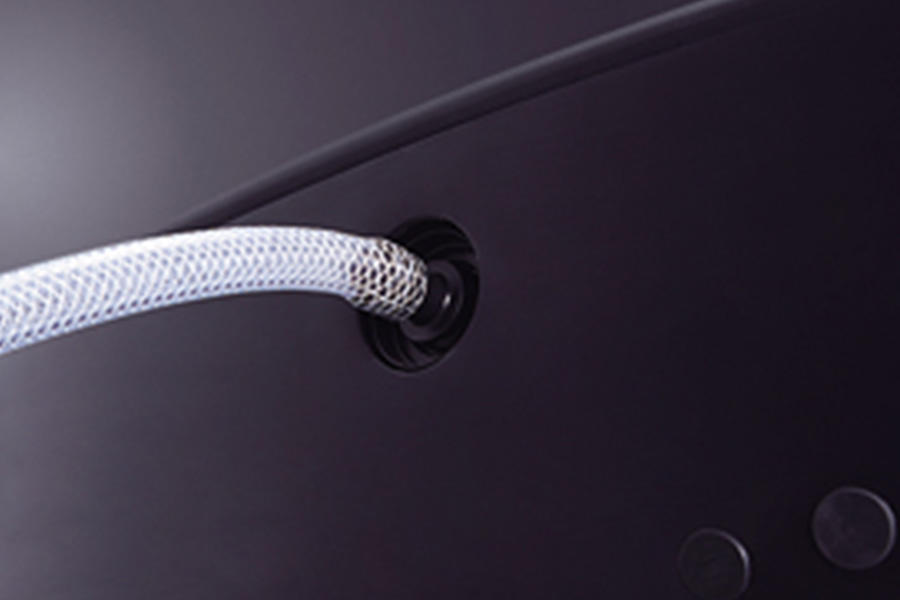

Fresh Water Flushing Port
The 115 hpTLDIR comes standard with a convenient built-in freshwater flush system. Located on the side of the engine, the flushing port simplifies routine engine flushing.

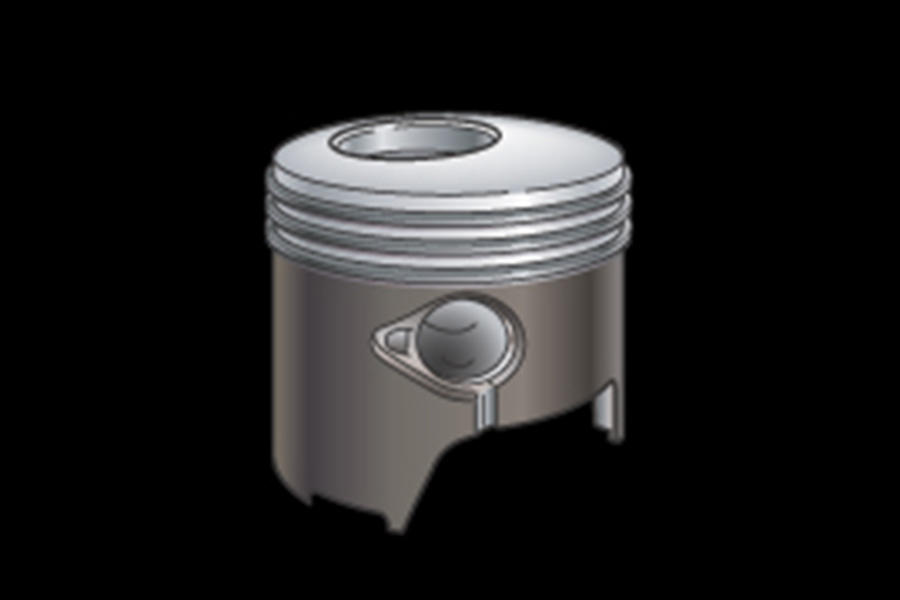

Pistons Dedicated to TLDIR Outboards
Teflon coated pistons (equipped on MD 75/90/115) with a concave shape to the head were specifically designed for TLDIR and significantly increase the fuel combustion efficiency.
3-Step Trolling Speed Control
The idling speed can be set to any of the three rpm ranges, 700, 800 or 900, by adjusting it on your key switch. This feature allows you to select the ideal trolling speed for maneuvering during a variety of current and wind conditions.
|Engine (No. of Cylinder)||3|
|Output||90hp (66.2 kw)|
|Displacement||1267 cc (77.3 cu.in)|
|Bore x Stroke||86 x 72.7 mm (3.39 x 2.86 in)|
|Control Type||Remote Control|
|Gear Shift||Forward - Neutral - Reverse|
|Propeller Selection Range||11" - 21"|
|Transom Height||20", 25"|
|Fuel||Unleaded Gasoline (87 Octane)|
|Oil Type||Premium TCW-3 or Recommended|
|Weight*||337 lbs (153 kg)|
|Alternator Output||12V, 490W, 40A|
|Max. RPM Range||5,150 - 5,850|
|Direct Fuel Injection||S|
|Inductive Ignition System||S|
|Start In Gear Protection||S|
|Thermostat Controlled Cooling System||S|
|Power Trim and Tilt||S|
|Variable Idle Speed||700, 800, 900 rpm|
|Model||MSRP||Shaft Length||Cylinders||Electric Start||Remote Control||12V Charging
