Small & Compact

VF21BS
VF21BS

VF21BS

4 stroke engine model.

Providing simplicity & quickness with consolidated operation panel.

Engine
209 cc Tohatsu 4-stroke,2-cylinder,
water cooled gasoline engine
Authorized output
10 PS (7.3 kW)
Pump performance
500 liter / min. at 0.6MPa
250 liter / min. at 0.8MPa
Dry weight
52 kg

Features

Light and compact

・Light and compact

The lightest & the most compact model in its class. Compact design allows it to fit fire truck layouts. Light weight & compact design gives it maximum transportability, usability and maneuverability.

・Simple mechanism

Easy to handle with its simplicity, portability & straight forward usage.

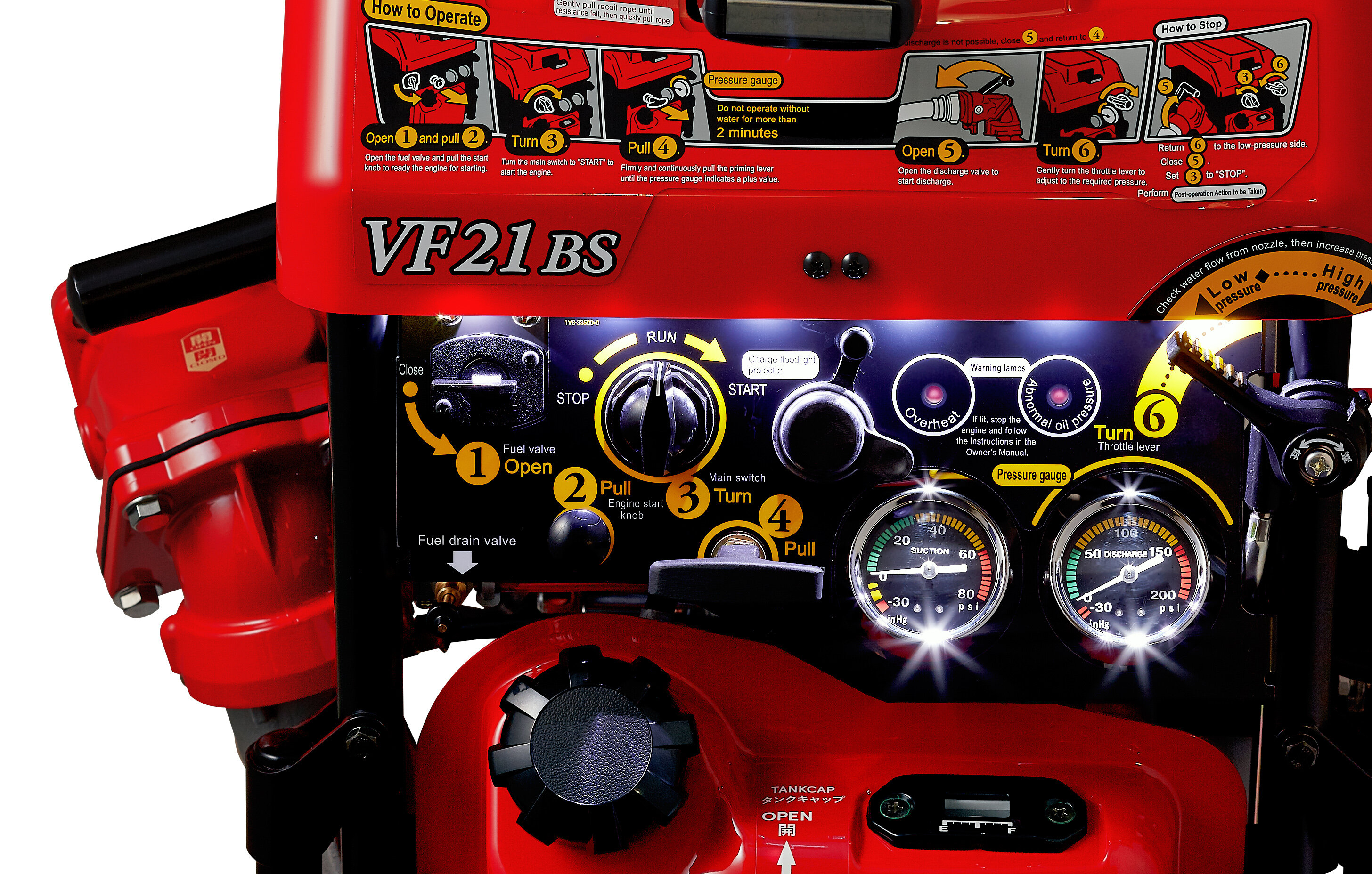

・Easy operation

Designed for easy & smooth operation Easy to understand instruction panel.

Specifications

Specification VF21BS
Engine Type 4-Cycle
Number of Cylinder 2 Cylinder
Cooling System Suction Water Cooled
Bore x Stroke 55 x 44 mm (2.17 x 1.73 inch)
Piston displacement 209 mL (12.7 cu in)
Output 7.3 kW (10 PS)
Fuel Type Unleaded Gasoline (Min. 87 Octane)
Fuel Tank Capacity 4.0 Lit (1.06 gal)
Fuel Consumption 3.9 Lit / Hr (0.82 gal / Hr)
Fuel System Single Carburetor
Oil Tank Capacity 1 Lit (0.26 gal)
Suction Starting Electric and manual
Suction System 4 Blade Rotary-vane vaccum pump (Oilless-type)
Priming System Semi-Auto Priming
Pump Pump Type Single Suction, Single Stage centrifugal pump
Suction Thread and Dia. JIS 2-1/2" (65mm)
BSP 2-1/2" (65mm)
Discharge Thread and Dia. JIS 2-1/2" (65mm)
BSP 2-1/2" (65mm)
Discharge Number Single
Discharge Valve Ball
Weight Dry Weight 52 kg (114.64 lbs)
Wet Weight 57 kg (125.66 lbs)
Dimension(mm) Overall
Length x Width x Height
480 x 590 x 560
Remote Control Panel
*optional
Number of Panel (Maximum) -
Length of cable for panel -
NOTE JIS: Japanese Industrial Standard Thread BSP: British Standard Pipe Thread Wet Weight: Ready for Operation
