MAINTENANCE KITS

TOHATSU Maintenance Kits are composed of items that we consider they are "consumable parts".
Thus, having a maintenance using this kit will mostly cover major points which need to be checked and updated periodically.

Maintenance Kits for MFS2/ 2.5/ 3.5B (3GT-87500-0) including following items

Part Number Description Quantity
309-64126-1 Shear Pin 4-24 1
332-60006-0 Gasket 8.1-15-1 2
338-60218-2 Anode 1
369-65021-1 Water Pump Impeller 1
369-65022-0 Key φ2-11 1
3AB-65025-0 Water Pump Guide Plate 1
3F0-65011-0 Pump Case Liner 1
3F0-65018-0 Pump Case Gasket 1
3F0-65029-0 Guide Plate Gasket 1
3H6-07406-0 Washer 10.2-19-1 1
951503-0435 Split Pin 4-35 1
9701-1-1103 Spark Plug (DCPR6E) 1

Maintenance Kits for MFS4/5/6C (3GR-87500-0) including following items

Part Number Description Quantity
332-60006-0 Gasket 8.1-15-1 2
369-02230-0 Fuel Filter Assy 1
369-65011-0 Pump Case Liner 1
369-65018-0 Pump Case Gasket 1
369-65021-1 Water Pump Impeller 1
369-65022-0 Key φ2-11 1
369-65025-0 WATER PUMP GUIDE PLATE 1
369-65029-0 Guide Plate Gasket 1
3H6-07406-0 Washer 10.2-19-1 1
3H6-60218-0 Anode 1
951503-0318 Split Pin 3-18 1
9701-1-1103 Spark Plug (DCPR6E) 1

Maintenance Kits for MFS6BZ/8/9.8B (3V1-87500-0) including following items

Part Number Description Quantity
332-60006-0 Gasket 8.1-15-1 2
369-02230-0 Fuel Filter Assy 1
369-60218-1 Anode 1
3B2-65011-0 Pump Case Liner 1
3B2-65018-2 Pump Case Gasket 1
3B2-65021-1 Water Pump Impeller 1
3B2-65022-0 Key φ3-11 1
3B2-65025-0 Water Pump Guide Plate 1
3B2-65029-2 Guide Plate Gasket 1
3R3-01144-0 Gasket 1
3R3-07406-0 Washer 14.5-24-1 1
3V1-60217-0 Trim Tab 1
951403-0310 Spring Pin 3-10 2
951503-0318 Split Pin 3-18 1
9701-1-1103 Spark Plug (DCPR6E) 2

Maintenance Kits for MFS9.9/15/20D (3SA-87500-0) including following items

Part Number Description Quantity
332-60006-0 Gasket 8.1-15-1 2
334-65021-0 Water Pump Impeller 1
350-65011-1 Pump Case Liner 1
350-65022-0 Key φ2-16 1
350-65025-0 Water Pump Guide Plate 1
369-60218-1 Anode 1
3BJ-07615-0 Oil Filter 1
3FS-65029-0 Guide Plate Gasket 1
3R3-01144-0 Gasket 1
3R3-07406-0 Washer 14.5-24-1 1
3V1-60217-0 Trim Tab 1
951503-0322 Split Pin 3-22 1
9701-1-1103 Spark Plug (DCPR6E) 2

Maintenance Kits for MFS9.9/15/20E (3RS-87500-0) including following items

Part Number Description Quantity
332-60006-0 Gasket 8.1-15-1 2
3LD-65021-0 Water Pump Impeller 1
350-65011-1 Pump Case Liner 1
3RS-65022-0 Key 1
3RS-65025-0 Water Pump Guide Plate 1
3P0-60218-0 Anode 1
3BJ-07615-0 Oil Filter 1
3RS-65029-0 Guide Plate Gasket 1
3R3-07406-0 Washer 14.5-24-1 1
3KY-60218-0 Anode 1
951503-0322 Split Pin 3-22 1
9701-1-1103 Spark Plug (DCPR6E) 2

Maintenance Kits for MFS25/30C (3NV-87500-0) including following items

Part Number Description Quantity
332-60006-0 Gasket 8.1-15-1 2
332-65022-0 Key φ20-4.6-2 1
345-65021-0 Water Pump Impeller 1
348-65029-1 Guide Plate Gasket 1
3BJ-07615-0 Oil Filter 1
3C8-60217-1 Trim Tab 1
3P0-60218-0 Anode 2
3R0-65011-0 Pump Case Liner 1
3R0-65018-0 Pump Case Gasket 1
3R0-65025-0 Water Pump Guide Plate 1
3R3-07406-0 Washer 14.5-24-1 1
951403-0312 Spring Pin 3-12 1
951503-0322 Split Pin 3-22 1
9701-1-1103 Spark Plug (DCPR6E) 3

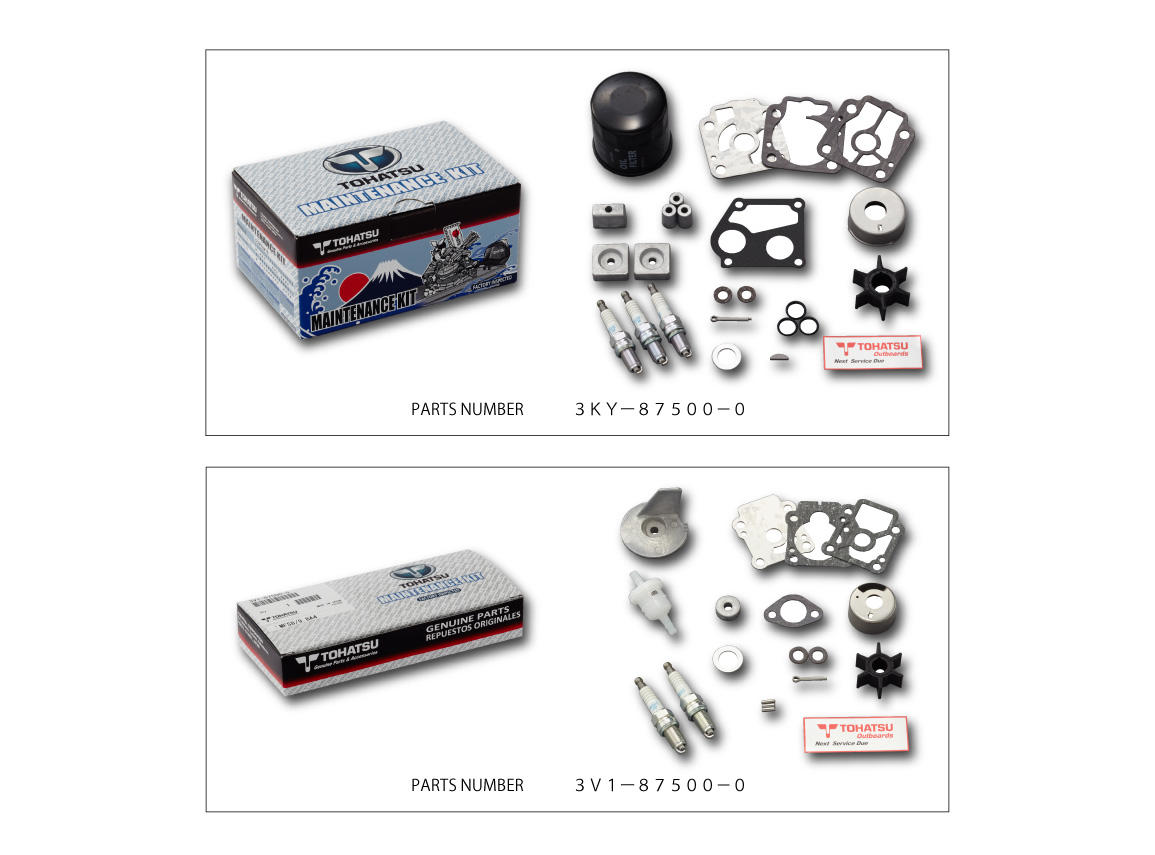

Maintenance Kits for MFS40/50A (3KY-87500-0) including following items

Part Number Description Quantity
332-60006-0 Gasket 8.1-15-1 2
332-65022-0 Key φ20-4.6-2 1
3B7-60218-1 Anode 1
3BJ-07615-0 Oil Filter 1
3C8-65021-2 Water Pump Impeller 1
3C8-65025-0 Water Pump Guide Plate 1
3C8-65029-2 Guide Plate Gasket 1
3KY-01032-0 Thermostat Cap Gasket 1
3KY-60218-0 Anode 2
3P0-60218-0 Anode 3
3R3-07406-0 Washer 14.5-24-1 1
3T5-10046-0 O-Ring 1.9-13 3
3T5-65011-0 Pump Case Liner 1
3T5-65018-2 Pump Case Gasket 1
951503-0325 Split Pin 3-25 1
9701-1-1121 Spark Plug (DCPR6E) 3
