OUTBOARDS

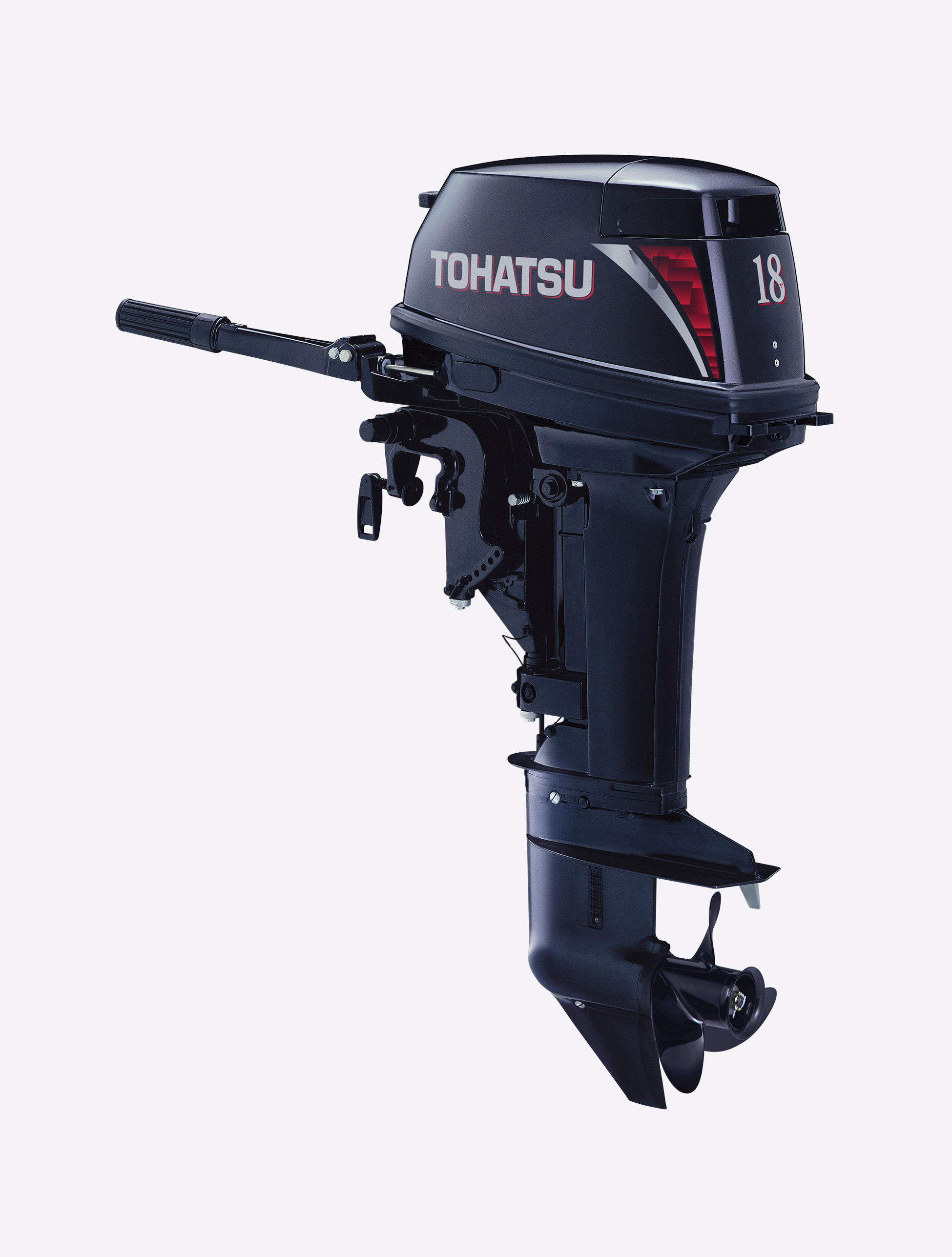

M18E2
PORTABLE
Tohatsu gives boaters exactly what they need in mid-range portables: more power and less weight! All of these truly portable models offer an incredible horsepower-to-weight ratio. Whatever your boating application, these are the ultimate outboards for convenience, reliability and portability.
Tohatsu 2-stroke benefits
- Excellent reliability with proven 2-stroke technology
- Simple in design
Easy operation and handling
- Loop charged induction for smooth operation and fuel economy
- CD ignition system for quicker starts
Fundamentals for user convenience and reliability
- Through-the-prop exhaust for a quiet ride
- Thermostatically controlled cooling system for consistent engine temperature
- Stainless steel water pump housing for outstanding durability
- High grade marine aluminum alloy that provides the ultimate protection against corrosion
- Zinc coating on internal water passages for superior corrosion resistance
- Aluminum propeller
Protection
- Safety lanyard (an essential protection feature standard on all Tohatsu outboards)
- Start-in-gear protection for safer engine starting
SPECIFICATIONS
| Engine | Two Stroke 2 Cylinder |
|---|---|
| Output | 18 hp (13.2 kw) |
| Displacement | 294 cc (17.94 cu.in.) |
| Bore x Stroke | 60 x 52 mm (2.36 x 2.05 in) |
| Starting | Electric or Manual |
| Control Type | Remote Control or Tiller Handle |
| Gear Shift | Forward - Neutral - Reverse |
| Gear Ratio | 1.85:1 (13:24) |
| Propeller Selection Range | 6" - 11.5" |
| Transom Height | 15", 20" |
| Fuel | Unleaded Gasoline (87 Octane) |
| Oil Type | Genuine recommended 2stroke engine oil (TCW-3) |
| Fuel Tank | 25 L (6.6 US Gal.) Separate Fuel Tank |
| Weight* | 41 Kg (90 lbs.) |
| Alternator Output | Optional: 12V, 80W, 7A (Standard on Electric Start Models) |
| Max. RPM Range | 5,200 - 5,800 |
| Start In Gear Protection | Standard |
| Thermostat Controlled Cooling System | Standard |
| Through-The-Prop Exhaust | Standard |
| Shallow Water Drive | Standard |
| Engine lubrication system | Premixed Fuel |
* Weight specification is based on the lightest version.
Specifications and descriptions are subject to change without notice.
Specifications and descriptions are subject to change without notice.
| Model | Shaft Length | Cylinders | Electric Start | Tiller Handle | Remote Control | 12V Charging System |
Remote Fuel Tank | Propeller |
|---|---|---|---|---|---|---|---|---|
| M18E2S | 15" | 2 | S | S | S | |||
| M18E2L | 20" | 2 | S | S | S | |||
| M18E2EFS | 15" | 2 | S | S | S | S | S | |
| M18E2EFL | 20" | 2 | S | S | S | S | S | |
| M18E2EPS | 15" | 2 | S | S | S | S | S | |
| M18E2EPL | 20" | 2 | S | S | S | S | S |
- Specifications subject to change without notice. Additional models and/or configurations may be available. Contact your local dealer for details.
