OUTBOARDS

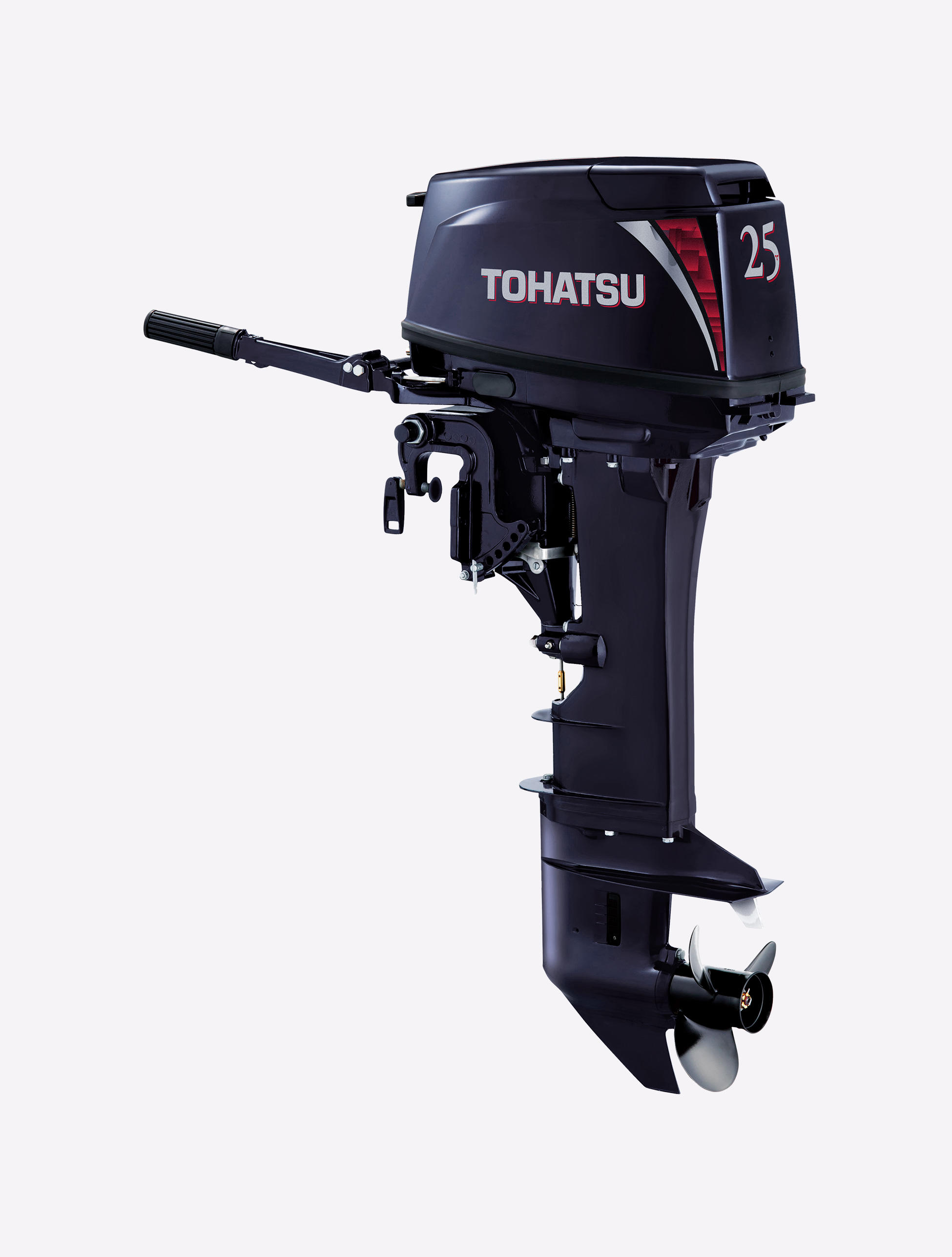

M25H
MID RANGE
Tohatsu 25 2-stroke have a well-earned reputation for incredible power and unprecedented reliability, all at manageable weights. Because of these factors, these three models are among the top choices of commercial fishermen all over the world - and pleasure boaters as well.
Tohatsu 2-stroke benefits
- Excellent reliability with proven 2-stroke technology
- Simple in design
Easy operation and handling
- Loop charged induction for smooth operation and fuel economy
- CD ignition system for quicker starts
- Remote control*
Fundamentals for user convenience and reliability
- Through-the-prop exhaust for a quiet ride
- Thermostatically controlled cooling system for consistent engine temperature
- Stainless steel water pump housing for outstanding durability
- High grade marine aluminum alloy that provides the ultimate protection against corrosion
- Zinc coating on internal water passages for superior corrosion resistance
- Aluminum propeller
Protection
- Safety lanyard (an essential protection feature standard on all Tohatsu outboards)
- Start-in-gear protection for safer engine starting
* Remote control models
SPECIFICATIONS
| Engine | Two Stroke 2 Cylinder |
|---|---|
| Output | 25 hp (18.4 kw) |
| Displacement | 429cc (26.16 cu.in.) |
| Bore x Stroke | 68 x 59 mm (2.68 x 2.32 in) |
| Starting | Electric or Manual |
| Control Type | Remote Control or Tiller Handle |
| Gear Shift | Forward - Neutral - Reverse |
| Gear Ratio | 1.92:1 (12:23) |
| Propeller Selection Range | 8" - 14" |
| Transom Height | 15", 20" |
| Fuel | Unleaded Gasoline (87 Octane) |
| Oil Type | Genuine recommended 2stroke engine oil (TCW-3) |
| Fuel Tank | 25 L (6.6 US Gal.) Separate Fuel Tank |
| Weight* | 51.0 Kg (112 lbs.) |
| Alternator Output | Optional: 12V, 80W, 7A (Standard on Electric Start Models) |
| Max. RPM Range | 5,000 - 6,000 |
| Start In Gear Protection | Standard |
| Thermostat Controlled Cooling System | Standard |
| Through-The-Prop Exhaust | Standard |
| Shallow Water Drive | Standard |
| Engine lubrication system | Premixed Fuel |
* Weight specification is based on the lightest version.
Specifications and descriptions are subject to change without notice.
Specifications and descriptions are subject to change without notice.
| Model | Shaft Length | Cylinders | Electric Start | Tiller Handle | Remote Control | 12V Charging System |
Remote Fuel Tank | Propeller |
|---|---|---|---|---|---|---|---|---|
| M25H S | 15" | 2 | S | S | S | |||
| M25H L | 20" | 2 | S | S | S | |||
| M25H EPS | 15" | 2 | S | S | S | S | S | |
| M25H EPL | 20" | 2 | S | S | S | S | S |
- Specifications subject to change without notice. Additional models and/or configurations may be available. Contact your local dealer for details.
