OUTBOARDS

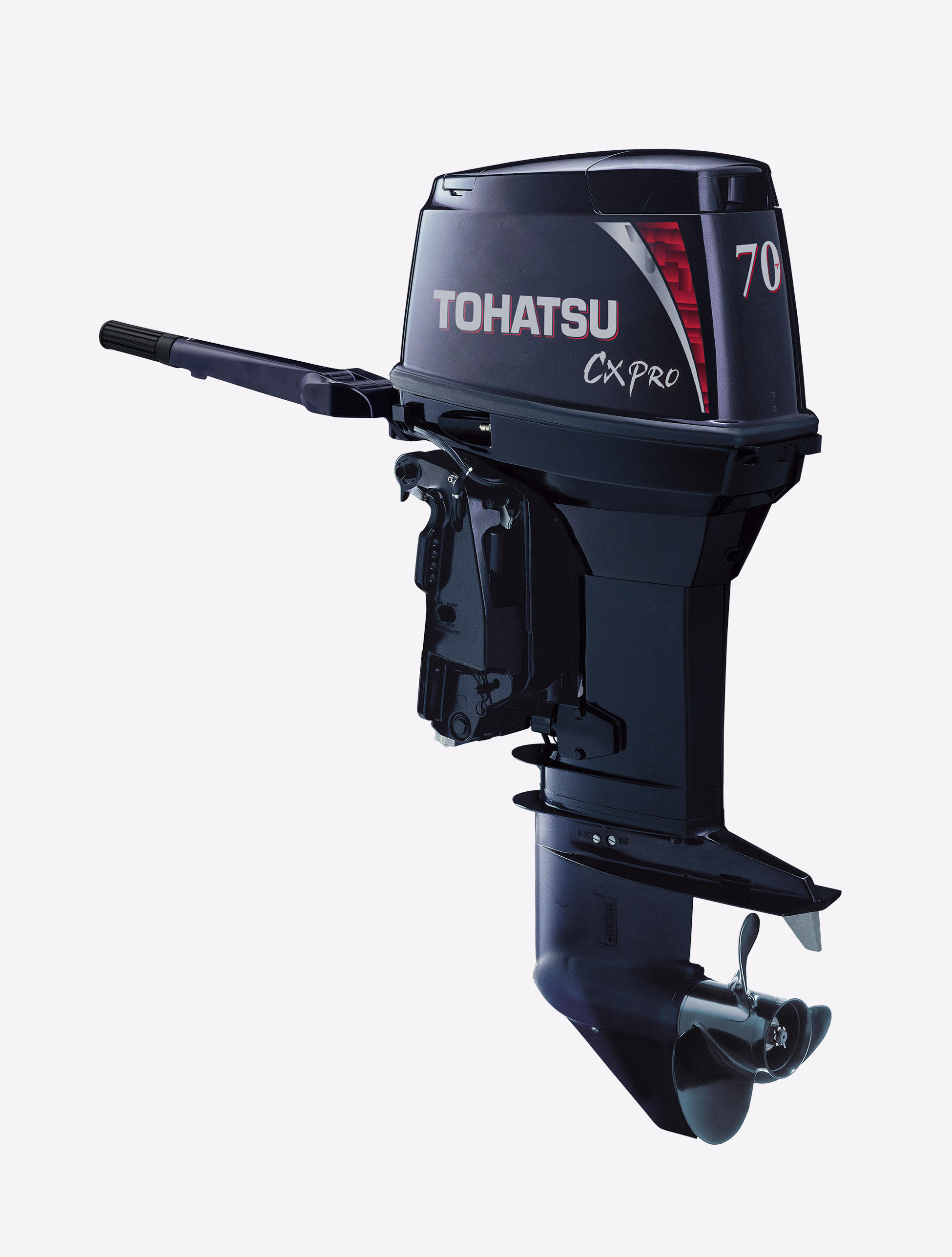

M70CX

MID RANGE

Globally well reputed Tohatsu 2 Stroke 70HP has been upgraded for its further possibilities. These models are the best choise for the commercial fisherman and of course for the pleasure boaters as well. Experience the brilliantly modified CXPRO Model.

Tohatsu 2-stroke benefits

  • Excellent reliability with proven 2-stroke technology
  • Simple in design
  • More Durability
  • New Top Cowl graphic

Easy operation and handling

  • Loop charged induction for smooth operation and fuel economy
  • CD ignition system for quicker starts
  • Easy maintenance access
  • Easy shift operation
  • Smoother acceleration
  • Gas Assist Tilt

Fundamentals for user convenience and reliability

  • Through-the-prop exhaust for a quiet ride
  • Thermostatically controlled cooling system for consistent engine temperature
  • Chrome plated stainless steel water pump housing for outstanding durability
  • High grade marine aluminum alloy that provides the ultimate protection against corrosion
  • Zinc coating on internal water passages for superior corrosion resistance
  • Aluminum propeller
  • Adopted;
    - Low compression ratio cylinder head,
    - Half Key-Stone Top Piston Ring to increase durability

Warning and protection

  • Electronic Safety Governor limits engine rpm to protect the outboard against over-reving
  • Overheat warning
  • Safety lanyard (an essential protection feature standard on all Tohatsu outboards)
  • Start-in-gear protection for safer engine starting

SPECIFICATIONS

Engine Two Stroke 3 Cylinder
Output 70 hp (51.5 kw)
Displacement 938 cc (57.23 cu.in.)
Bore x Stroke 74 x 72.7 mm (2.91 x 2.86 in)
Starting Manual
Control Type Tiller Handle
Gear Shift Forward - Neutral - Reverse
Gear Ratio 2.33:1 (12:28)
Propeller Selection Range 9" - 21"
Transom Height 20", 25"
Fuel Unleaded Gasoline (87 Octane)
Oil Type Genuine recommended 2stroke engine oil (TCW-3)
Fuel Tank 25 L (6.6 US Gal.) Separate Fuel Tank
Weight* 105.5 Kg (233 lbs.)
Alternator Output Optional: 12V, 130W, 11A
Max. RPM Range 5,150 - 5,850
Start In Gear Protection Standard
Thermostat Controlled Cooling System Standard
Through-The-Prop Exhaust Standard
Power Trim and Tilt
Shallow Water Drive
Engine lubrication system Premixed Fuel
* Weight specification is based on the lightest version.
Specifications and descriptions are subject to change without notice.
Model Shaft Length Cylinders Tiller Handle Tachometer Remote Fuel Tank Propeller
M70CXMFGL 20" 3 S S S S
M70CXMFGUL 25" 3 S S S S
  • Specifications subject to change without notice. Additional models and/or configurations may be available. Contact your local dealer for details.
