OUTBOARDS

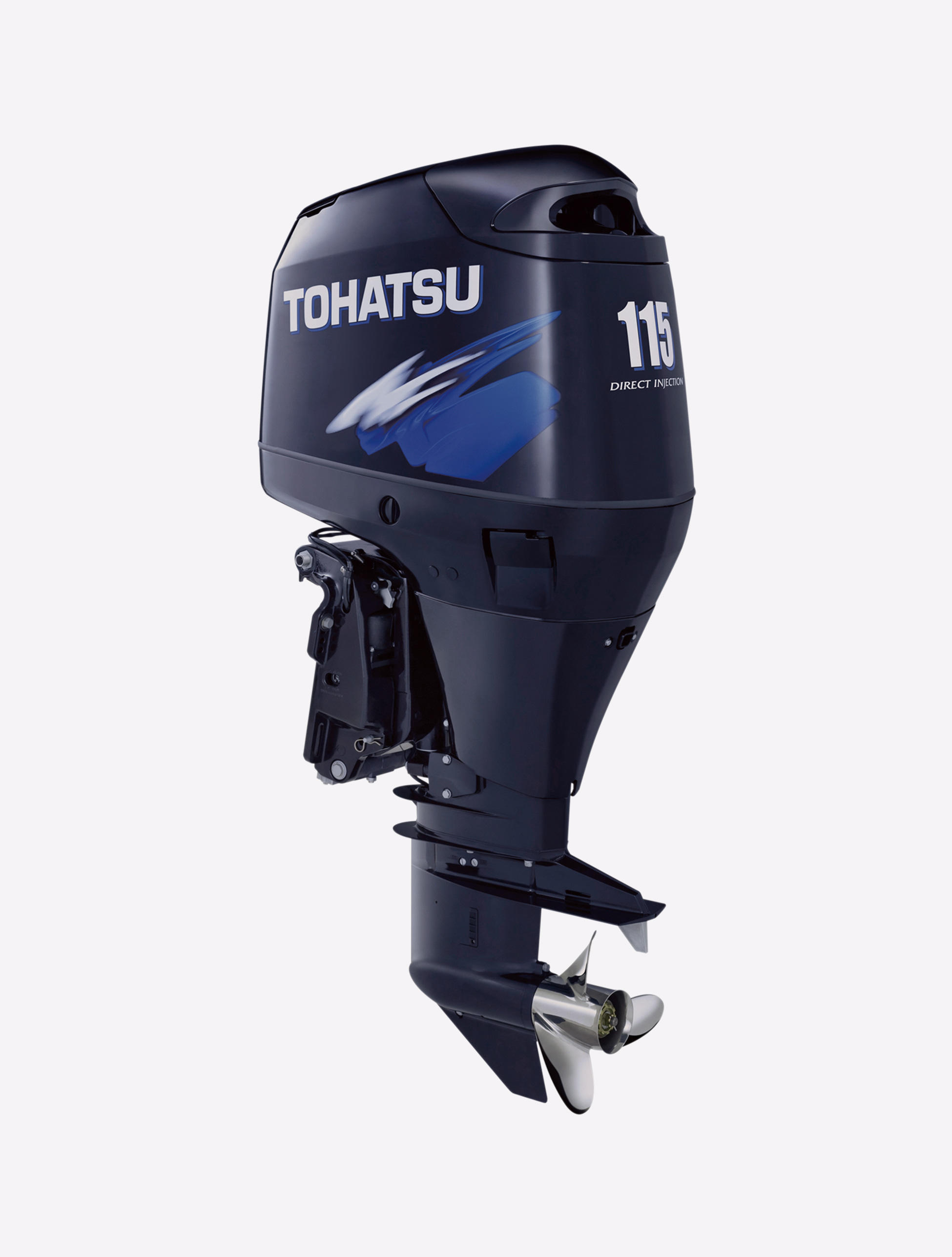

MD115A2

HIGH POWER

TLDI® outboards provide the environmental offerings of four-strokes while never compromising the powerful running performance of two-strokes and our TLDI® 115 hp outboard is no exception.

With its three step adjustable trolling speed control, quick acceleration response, compact size, and fuel economy unlike any other, The 115 hp TLDI® can support a wide range of needs for both the pleasure and commercial boater alike. The 115hp TLDI® outboard continues the long standing Tohatsu tradition of anticipating the tough demands of the next generation of boaters.

Tohatsu 115 hp TLDI® Benefits

  • Uniquely designed cowling with extra internal layering to provide a much quieter operation than conventional 2-stroke outboards
  • Equipped with a high output alternator that produces 37 amps of power even at 1000rpm and a whopping 40 amps at wide-open throttle
  • Comes standard with a convenient built-in freshwater flush system that simplifies routine engine flushing
  • Air assisted direct fuel injection system that provides excellent fuel economyTohatsu Outboards Triple 115hp TLDI®
  • Excellent horsepower-to-weight ratio
  • Lightweight and compact
  • Ultra-low emission, EPA and CARB approved

High Performance and Easy Operation

  • Inductive ignition system for reliable starting
  • Outstanding acceleration
  • Electronic oil pump for more precise oil regulation throughout the rpm range
  • Multi-point oil injection system to more completely lubricate vital engine components
  • Power Trim & Tilt
  • Remote control box**

Fundamentals for User Convenience and Reliability

  • Through-the-prop exhaust for a quieter ride
  • Thermostatically controlled cooling system for consistent engine temperature
  • Stainless steel water pump housing for outstanding durability
  • High grade marine aluminum alloy that provides the ultimate protection against corrosion
  • Zinc coating on internal water passages for superior corrosion resistance
  • User adjustable idle and trolling speeds
  • Tachometer and Trim & Tilt Gauge**
  • Aluminum propeller

Warning & Protection

  • Low oil level warning (visual and audible)
  • Overheat warning (visual and audible)
  • Battery voltage warning (visual only)
  • Start-in-gear protection for safer engine starting
  • Safety lanyard (an essential protection feature standard on all Tohatsu outboards)
  • Over-rev. limiter

FEATURES

The TLDI® series are Tohatsu's award winning outboard motors that have an established reputation for being compact in size while demonstrating highly desired features such as low emissions and high fuel economy that are demanded by the new generation of boaters.
They are powered by a direct fuel injection system and a 32 bit ECU (Engine Control Unit). The ECU gives precise fuel injection instructions in accordance to the operating conditions detected by the multiple sensors located on the motor. The TLDI® outboard motors meets all of the emission regulations stipulated by EPA (Environmental Protection Agency) and CARB (California Air Resources Board).

Click here to read our TLDI® series "Frequently Asked Questions" page.

SPECIFICATIONS

Engine 2 Stroke TLDI 4 Cylinder
Output 115 ps (84.6 kw)
Displacement 1768 cc (107.9 cu.in)
Bore x Stroke 88 x 72.7 mm (3.46 x 2.86 in)
Starting Electric
Control Type Remote Control
Gear Shift Forward - Neutral - Reverse
Gear Ratio 2.0:1 (13:26)
Propeller Selection Range 9" - 21"
Transom Height 20", 25"
Fuel Unleaded Gasoline (87 Octane)
Oil Type Premium TCW-3 or Recommended
Oil Capacity 6.7L (1.77 US Gal.)
Weight* 178 kg (392 lbs.)
Alternator Output 12V, 490W, 40A
Max. RPM Range 5,150 - 5,850
Direct Fuel Injection Standard
Inductive Ignition System Standard
Start In Gear Protection Standard
Thermostat Controlled Cooling System Standard
Through-The-Prop Exhaust Standard
Power Trim and Tilt Standard
Variable Idle Speed 700, 800, 900 rpm
* Weight specification is based on the lightest version.
Specifications and descriptions are subject to change without notice.
Model Shaft Length Cylinders Electric Start Remote Control 12V Charging
System
Power
Trim &Tilt
Oil injection Propeller
MD115A2EPTOL 20" 4 S S S S S S
MD115A2EPTOUL 25" 4 S S S S S S
S:Starndard
  • Specifications subject to change without notice. Additional models and/or configurations may be available. Contact your local dealer for details.
