OUTBOARDS

MD40B2

MID RANGE

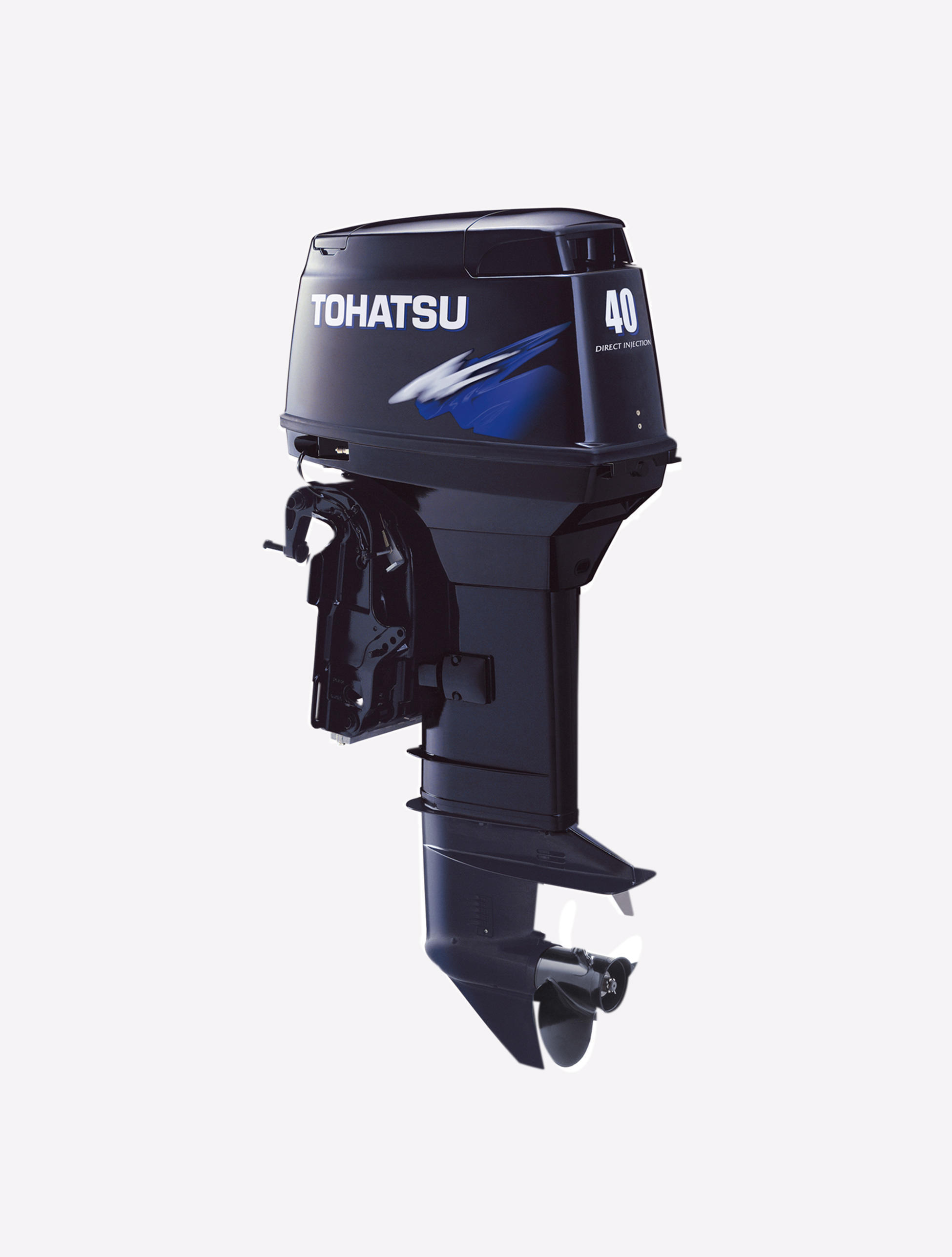

The Tohatsu 40hp TLDI® is one of the smallest engines available with air-assisted direct injection technology. This outboard has all of the benefits of new and improved 21st century technology without compromising power or performance.

We have added this new low-pressure air/fuel delivery system to our proven engine block to give you an outboard superior to al others. It provides exceptional fuel savings over 4-Strokes and conventional 2-Strokes alike and is very gentle on the environment.

If you’re looking for a tiller model, we now offer a multi-function tiller handle as standard equipment. This tiller handle includes all controls conveniently located on the handle for easy access giving you more control, better maneuverability and increased safety. And our 40 hp TLDI® outboard weighs up to 15% less than competitive 4-stroke outboards and meets EPA emission regulations.

When clean, mean outboard power is what you need, look no further than the Tohatsu 40hp TLDI®.

Tohatsu 40 hp TLDI® Benefits

  • Air assisted direct fuel injection system that provides excellent fuel economy
  • Extremely quiet operation
  • Excellent horsepower-to-weight ratio
  • Lightweight and compact
  • Available in short (15”) & long (20”) shaft lengths
  • Ultra-low emission, EPA and CARB approved

High Performance and Easy Operation

  • Inductive ignition system for reliable starting
  • Outstanding acceleration
  • Oil reservoir located on the top of the motor for quicker and easier refill onboard
  • Multi-point oil injection system to more completely lubricate vital engine components
  • Power Trim & Tilt
  • Remote control box**

Fundamentals for User Convenience and Reliability

  • Through-the-prop exhaust for a quieter ride
  • Thermostatically controlled cooling system for consistent engine temperature
  • Stainless steel water pump housing liner for outstanding durability
  • High grade marine aluminum alloy that provides the ultimate protection against corrosion
  • Zinc coating on internal water passages for superior corrosion resistance
  • User adjustable idle and trolling speeds
  • Tachometer and Trim & Tilt Gauge**
  • Aluminum propeller

Warning and Protection

  • Low oil level warning (visual and audible)
  • Overheat warning (visual and audible)
  • Battery voltage warning (visual only)
  • Start-in-gear protection for safer engine starting
  • Safety lanyard (an essential protection feature standard on all Tohatsu outboards)
  • Over-rev. limiter
** Remote control models

FEATURES

The TLDI® series are Tohatsu's award winning outboard motors that have an established reputation for being compact in size while demonstrating highly desired features such as low emissions and high fuel economy that are demanded by the new generation of boaters.
They are powered by a direct fuel injection system and a 32 bit ECU (Engine Control Unit). The ECU gives precise fuel injection instructions in accordance to the operating conditions detected by the multiple sensors located on the motor. The TLDI® outboard motors meets all of the emission regulations stipulated by EPA (Environmental Protection Agency) and CARB (California Air Resources Board).

Click here to read our TLDI® series "Frequently Asked Questions" page.

SPECIFICATIONS

Engine 2 Stroke TLDI 3 Cylinder
Output 40 ps (29.4 kw)
Displacement 697 cc (42.5 cu.in.)
Bore x Stroke 68 x 64 mm (2.68 x 2.52 in)
Starting Electric
Control Type Remote Control or Tiller Handle
Gear Shift Forward - Neutral - Reverse
Gear Ratio 1.85:1 (13:24)
Propeller Selection Range 7" - 15"
Transom Height 20"
Fuel Unleaded Gasoline (87 Octane)
Oil Type Premium TCW-3 or Recommended
Oil Capacity 2L (0.53 US Gal.)
Fuel Tank 25 L (6.6 US Gal.) Separate Fuel Tank
Weight* 94.5 kg (208 lbs.)
Alternator Output 12V, 280W, 23A
Max. RPM Range 5,150 - 5,850
Direct Fuel Injection Standard
Inductive Ignition System Standard
Start In Gear Protection Standard
Thermostat Controlled Cooling System Standard
Through-The-Prop Exhaust Standard
Power Trim and Tilt Standard
Variable Idle Speed 700, 800, 900 rpm
* Weight specification is based on the lightest version.
Specifications and descriptions are subject to change without notice.
Model Shaft Length Cylinders Electric Start Remote Control 12V Charging
System
Power
Trim &Tilt
Oil injection Tachometer Remote Fuel Tank Propeller
MD40B2EPTOL 15" 3 S S S S S S S S
MD40B2EPTOL 20" 3 S S S S S S S S
S:Starndard
  • Specifications subject to change without notice. Additional models and/or configurations may be available. Contact your local dealer for details.
