OUTBOARDS

MFS3.5B

PORTABLE

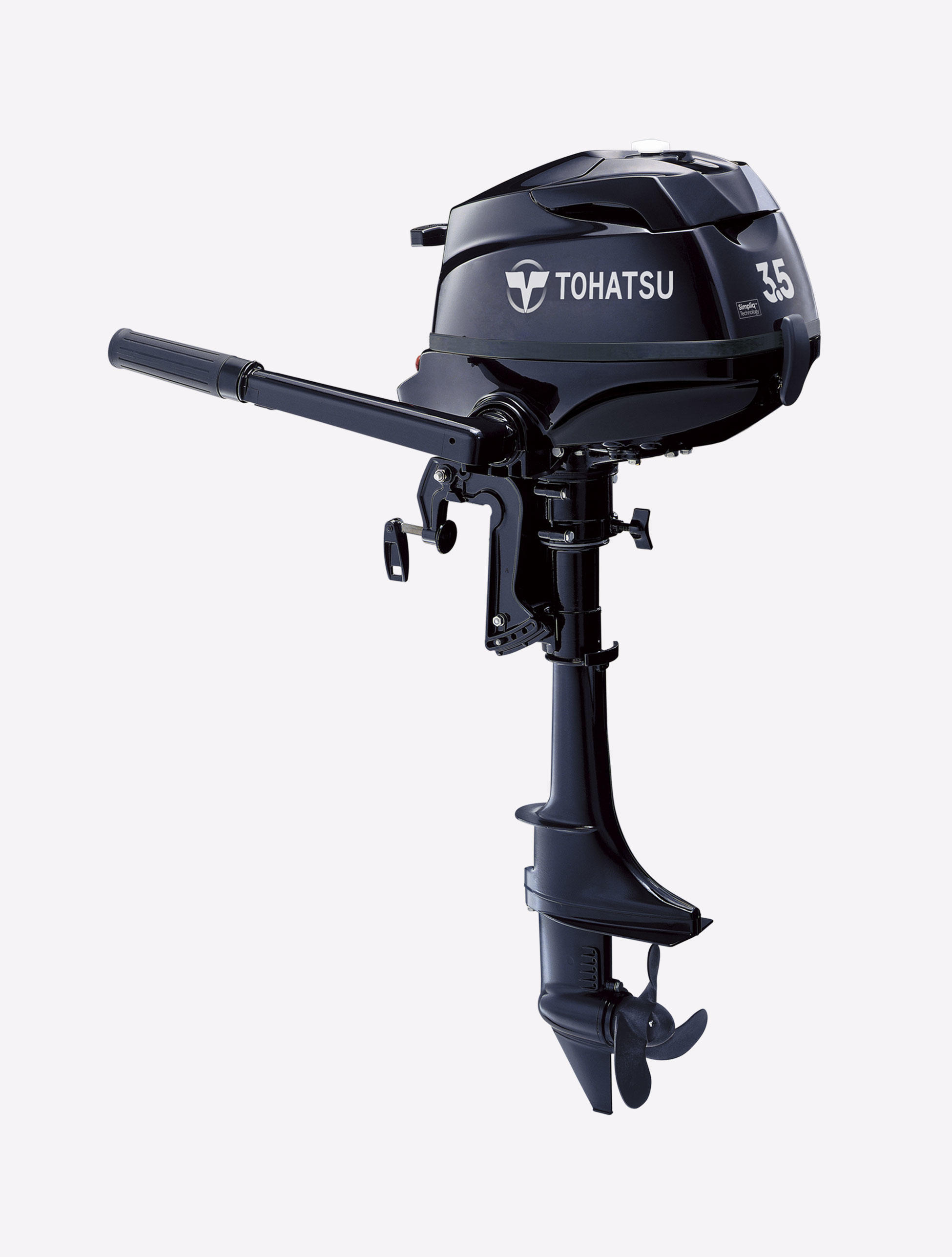

The 3.5 hp 4-stroke is the perfect outboard for a variety of small boats. This dynamic little powerhouse may be petite in size, but has all of the benefits you need in an outboard.

The 3.5 hp is lightweight and has a four point vibration absorption system to minimize vibration. And with sensational fuel economy, this compact little 3.5hp engine has it all… making it one of the best choices available for portable outboard power.

Tohatsu 3.5 hp 4-Stroke Benefits

  • Water cooled and thermostatically controlled cooling system for consistent engine temperature
  • Digital CD ignition system for easier starting, quicker throttle response and smoother trolling
  • Forward-neutral shifting with 360° steering
  • Easy to check oil level gauge indicator located on the engine's side
  • Light and compact
  • Convenient carrying handle
  • Ultra-low emission, EPA and CARB 3-Star rating approved

FEATURES

SPECIFICATIONS

Engine 4 Stroke 1 Cylinder
Output 3.5 hp (2.6 kw)
Displacement 85.5 cc (5.2 cu.in.)
Bore x Stroke 55 x 36 mm (2.17 x 1.42 in)
Starting Manual
Control Type Tiller Handle
Gear Shift Forward - Neutral
Gear Ratio 2.15:1 (13:28)
Propeller Selection Range 4.5" - 7"
Transom Height 15", 20"
Fuel Unleaded Gasoline (87 Octane)
Oil Type NMMA Certified FC-W® 4-stroke oil** SAE 10W-30/40 (SF, SG, SH, SJ)
Oil Capacity 300 mL (10 fl. oz.)
Fuel Tank 1L (0.26 US Gal.) Integral Tank
Weight* 18.4 kg (41 lbs.)
Max. RPM Range 5,000 - 6,000
Digital CD Ignition System Standard
Thermostat Controlled Cooling System Standard
Shallow Water Drive Standard
* Weight specification is based on the lightest version.
** FC-W® is a registered trademark of the National Marine Manufacturers Assoc. (NMMA)
Specifications and descriptions are subject to change without notice.
Model Shaft Length Cylinders Tiller Handle Propeller
MFS3.5BS 15 1 S S
MFS3.5BL 20 1 S S
S:Starndard
  • Specifications subject to change without notice. Additional models and/or configurations may be available. Contact your local dealer for details.
