OUTBOARDS

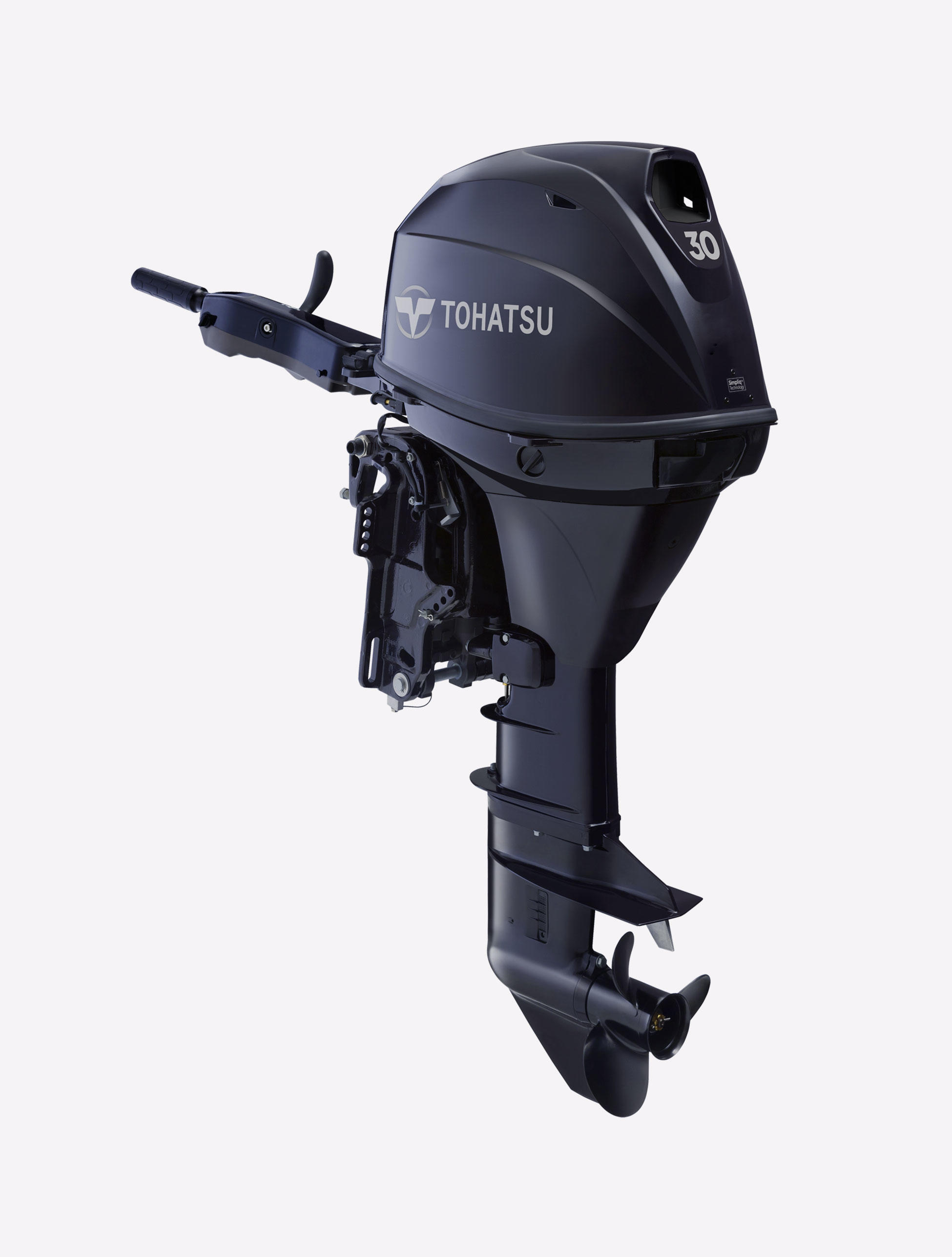

MFS30C

MID RANGE

Redesigned for 2015, our 30hp 4-stroke has it all! Whether you are cruising, fishing or working, the 30 hp EFI (Electronic Fuel Injection) will meet your needs. We are the first to offer a battery-less EFI system that provides quick throttle response and very smooth rides on the water.

The upper and lower motor cover features a more modern look, and easier access to regular maintenance items. Plus, the multi-function tiller handle comes standard on all 30 hp models with electric start. This tiller includes all controls conveniently located on the handle for easy access giving you more control, better maneuverability and increased safety.

When you need compact power, the 30hp 4-stroke has exactly what you need.

Tohatsu 30 hp 4-Stroke Benefits

  • All new sleek design
  • Designed with proven technology
  • Advanced cross-flow induction for smooth operation
  • Canister style oil filter for easy replacement
  • Larger capacity oil reservoir for optimum lubrication
  • Tuned intake system for crisp takeoffs
  • Ultra Low emission, EPA and CARB approved

High Performance and Easy Operation

  • Lower gear ratio from 1.92:1 to 2.17:1 gives you better low end torque and the ability to turn a higher pitch prop for better top end performance
  • Electronic Fuel Injection
  • The boating industry's first battery-free, manual start EFI 4-stroke
  • Digital CD ignition system for quicker starts
  • Large alternator and rectifier for superior battery charging
  • Adjustable steering friction and trim tab for reducing steering effort
  • Front mounted shift lever for easier operation
  • Shallow water drive, 6 tilt positions*
  • Power trim and tilt*
  • Remote control**

Fundamentals for User Convenience and Reliability

  • Redesigned upper and lower motor cover for a more modern look and easier access to regular maintenance items
  • Built in fresh water flush system on lower motor cover for easy access
  • Through-the-prop exhaust for a quieter ride
  • Thermostatically controlled cooling system for consistent engine temperature
  • Stainless steel water pump housing liner for outstanding durability
  • High grade marine aluminum alloy that provides the ultimate protection against corrosion
  • Zinc coating on internal water passages for superior corrosion resistance
  • 6.6 gallon (25 liter) fuel tank including fuel fittings and fuel line
  • Aluminum propeller

Warning and Protection

  • Overheat warning (audible)
  • Low oil pressure warning (audible)
  • Safety lanyard (an essential protection feature standard on all Tohatsu outboards)
  • Start-in-gear protection for safer engine starting
  • Over-rev. limiter
*Certain models
** Remote control models

FEATURES

SPECIFICATIONS

Engine 4 Stroke 3 Cylinder
Output 30 ps (22.1 kw)
Displacement 526 cc (32.09 cu.in.)
Bore x Stroke 61 x 60 mm (2.4 x 2.36 in)
Starting Electric or Manual
Control Type Remote Control or Tiller Handle
Gear Shift Forward - Neutral - Reverse
Gear Ratio 2.17:1 (12:26)
Propeller Selection Range 8" - 14"
Transom Height 15", 20"
Fuel Unleaded Gasoline (87 Octane)
Oil Type NMMA Certified FC-W® 4-stroke oil** SAE 10W-30/40 (SF, SG, SH, SJ)
Oil Capacity 1.8L (2 qt.)
Fuel Tank 25 L (6.6 US Gal.) Separate Fuel Tank
Weight* 71.5 kg (158 lbs.)
Alternator Output 12V, 180W, 15A
Max. RPM Range 5,250 - 6,250
Electronic Fuel Injection Standard
Digital CD Ignition System Standard
Start In Gear Protection Standard
Thermostat Controlled Cooling System Standard
Through-The-Prop Exhaust Standard
Power Trim and Tilt Option
Oil Pressure Warning Standard
Shallow Water Drive Option
Model Shaft Length Cylinders Electric Start Tiller Handle Remote Control 12V Charging
System
Power
Trim &Tilt
Remote Fuel Tank Propeller
MFS30CS 15" 3 S S S
MFS30CL 20" 3 S S S
MFS30CEPS 15" 3 S S S S S
MFS30CEPL 20" 3 S S S S S
MFS30CEPTS 15" 3 S S S S S S
MFS30CEPTL 20" 3 S S S S S S
S:Starndard
1:Multi-Function Tiller Handle
  • Specifications subject to change without notice. Additional models and/or configurations may be available. Contact your local dealer for details.
