OUTBOARDS

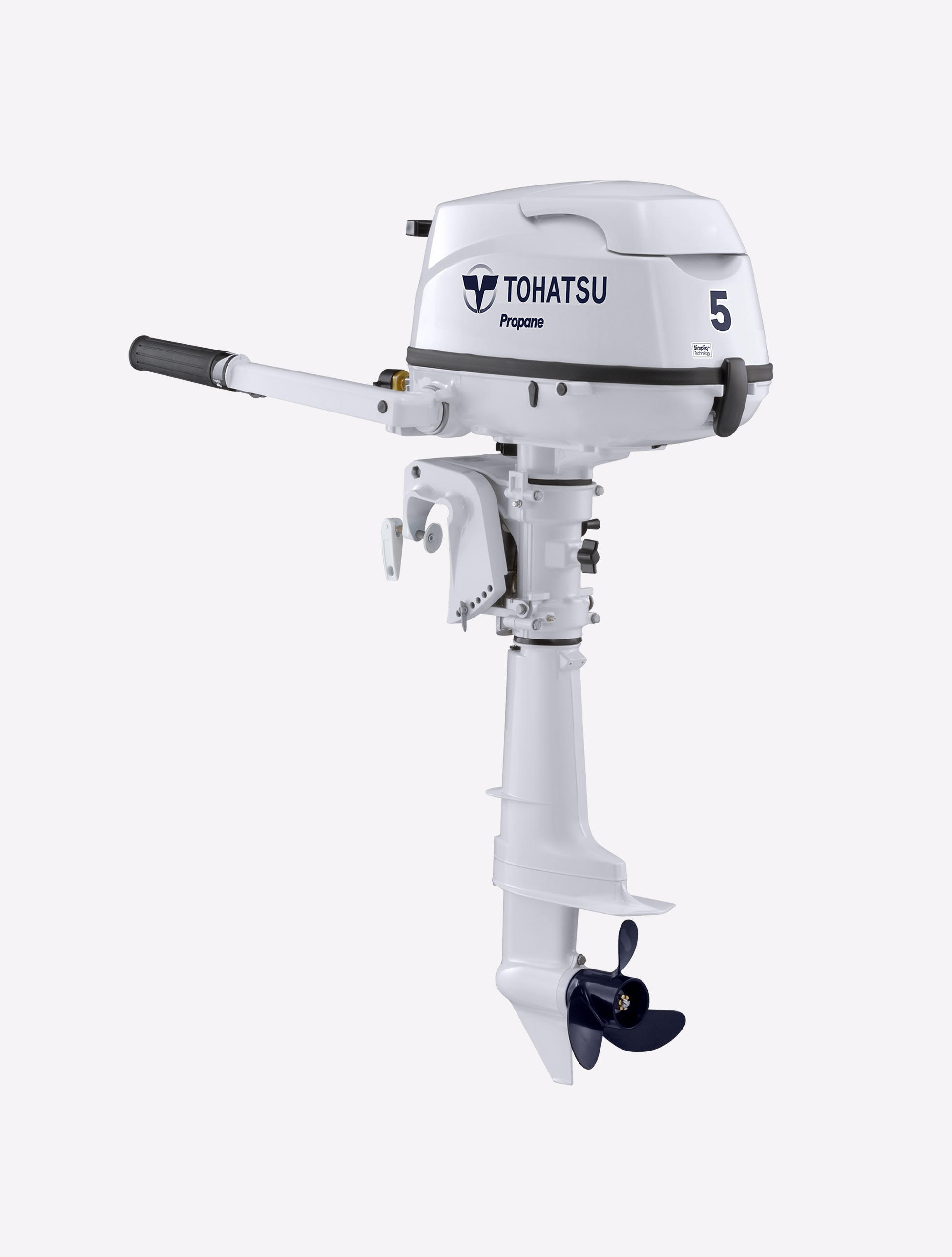

MFS5C-LPG

PORTABLE

Thanks to Tohatsu’s 5hp Liquefied Petroleum Gas (LPG) outboard, sailors are no longer forced to carry gasoline on board. The 5hp LPG comes equipped with a fuel line that will connect to any standard North American propane tank. Our innovative LPG outboard will run for a full 5 hours at WOT on a single 11lb propane tank, without sacrificing performance.

Exclusive to Tohatsu’s LPG outboard is the Safety Fuel Shut Off Valve which keeps propane fuel from continuously running when engine is not in use. Plus, since the 5hp LPG does not require ethanol or gas, this propane outboard requires almost zero maintenance on fuel related components. We offer a 20” and 25” shaft Sail Pro model which includes a 12V 60W 5A charging system and high thrust prop. What sailor doesn’t want a virtually maintenance free engine that has their back?

Tohatsu 5hp Propane 4-Stroke Benefits

  • Sailors are no longer forced to carry gasoline on board
  • No possibility of ethanol/gasoline related failures
  • Virtually maintenance free fuel system
  • 30% cleaner emissions*
  • Quieter operations without compromising engine performance
  • Ultra-low emission, EPA and CARB 3-Star rating approved
*Based on Tohatsu Corporation Engineering Department data.

Easy Operation and Handling

  • Digital CD ignition for easier engine starting, quicker throttle response and smoother trolling
  • A larger recoil reel and compression release valve makes starting fast and easy
  • Shallow water drive and 6 trim positions
  • Adjustable steering friction for reducing steering effort
  • Optional steering lock kit available

Fundamentals for User Convenience and Reliability

  • Through-the-prop exhaust for a quieter ride
  • Aluminum rubber hub propeller for quieter operation, less vibration and better performance
  • Thermostatically controlled cooling system for consistent engine temperature
  • Stainless steel water pump housing liner for outstanding durability
  • High grade marine aluminum alloy that provides the ultimate protection against corrosion
  • Zinc coating on internal water passages for superior corrosion resistance

Protection

  • Low oil pressure indicator
  • Safety lanyard (an essential protection feature standard on all Tohatsu outboards)
  • Start-in-gear protection for safer engine starting
  • Over-rev. limiter
  • Exclusive Fuel Safety Shut Off Valve

FEATURES

SPECIFICATIONS

Engine 4 Stroke 1 Cylinder
Output 5 ps (3.7 kw)
Displacement 123 cc (7.5 cu.in.)
Bore x Stroke 59 x 45 mm (2.32 x 1.77 in)
Starting Manual
Control Type Tiller Handle
Gear Shift Forward - Neutral - Reverse
Gear Ratio 2.15:1
Propeller Selection Range 6" - 9"
Transom Height 15", 20", 25"
Fuel LPG HD-5 (More than 65% Propane)
Fuel Consumption @ WOT Fuel Efficiency: 11lb (5kg) 5h @ WOT
Oil Capacity 450 mL (15 fl. oz.)
Max Torque 7.2/4,100 (N-m/rpm)
Regulator 2-Step Diaphragm
Fuel Tank Internal Fuel Tank Models (MFS5CD) : 1.1L (0.29 US Gal.) Integral Tank (Includes an External Fuel Tank Connector installed on engine to allow user to use an optional external fuel tank), External Fuel Tank Models (MFS5CS) : 12L (3.1 US Gal.) Separate Fuel Tank
Weight* 27.2 kg (59.5 lbs.)
Alternator Output Optional: 12V, 60W, 5A (Standard on SP Model)
Max. RPM Range 5,000 - 6,000
Digital CD Ignition System Standard
Safety Fuel Shut Off Valve Standard
Start In Gear Protection Standard
Thermostat Controlled Cooling System Standard
Through-The-Prop Exhaust Standard
Oil Pressure Warning Standard
Shallow Water Drive Standard
* Weight specification is based on the lightest version.
** Optional on short shaft model, standard on Sailpro models.
Specifications and descriptions are subject to change without notice.
Model Shaft Length Cylinders Tiller Handle 12V Charging
System
Propeller
MFS5CLPGS 15" 1 S S
MFS5CLPGL 20" 1 S S
MFS5CLPGSPL* 20" 1 S S S
MFS5CLPGSPUL* 25" 1 S S S
* SP models come standard with a high-thrust prop and 12V charging system.
  • Specifications subject to change without notice. Additional models and/or configurations may be available. Contact your local dealer for details.
