OUTBOARDS

MFS5C

PORTABLE

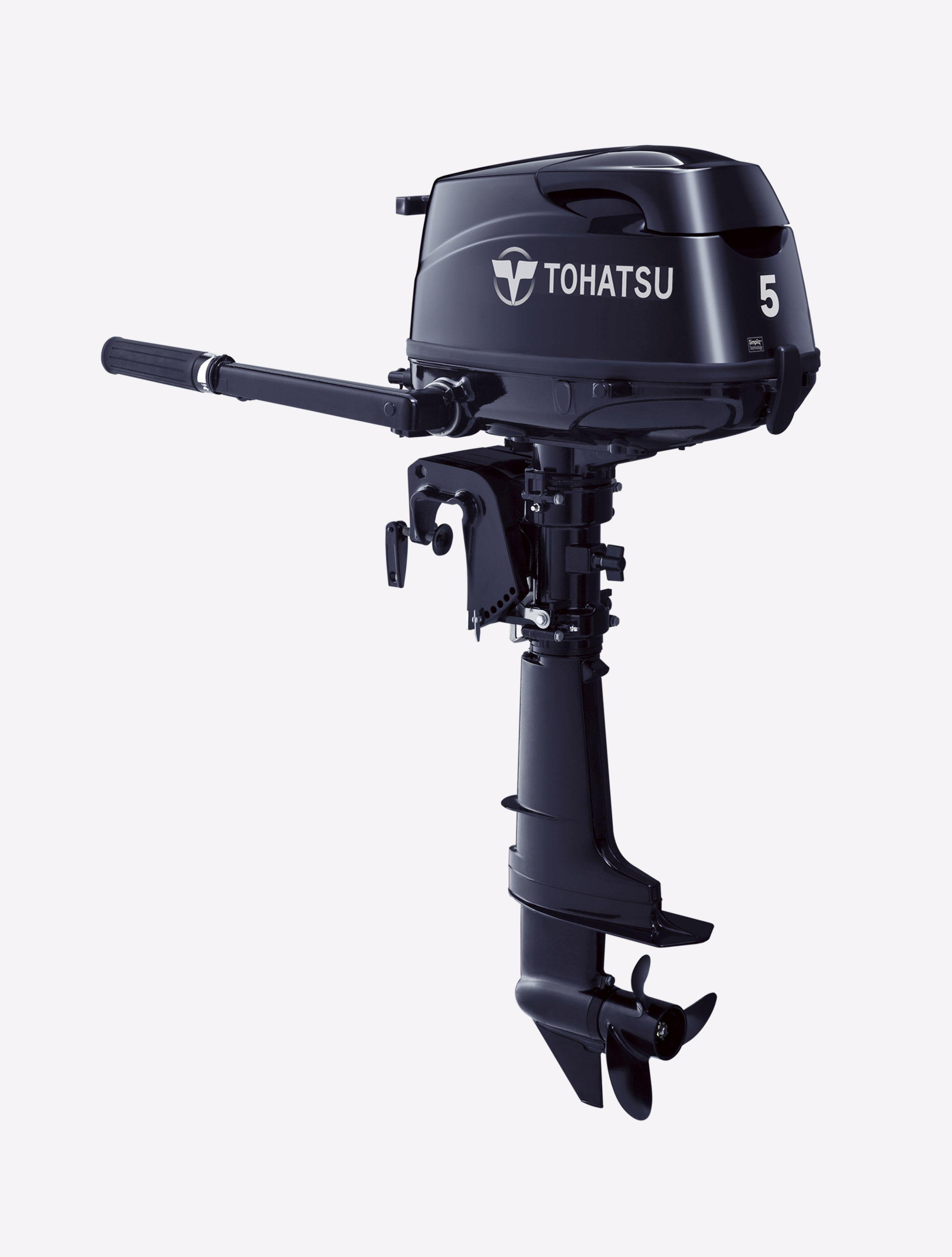

The Tohatsu 5 hp 4-stroke gives you that peace of mind you need when purchasing an outboard. With Tohatsu’s excellence in engineering, you can be assured that you are choosing an engine that will be with you for years to come.

The 5 hp features a new front mounted shift lever, an industry first in its class and with reduced emissions and exceptional fuel economy, this little 5hp 4-stroke is cleaner burning while also keeping your cost at the gas pump down.

Tohatsu 5 hp 4-Stroke Benefits

  • Light and compact!
  • Front mounted shift lever, an industry first in its class!
  • Designed with proven technology
  • Greatly reduced vibration for smooth and stable running at all speeds
  • Greatly reduced induction noise for a quieter ride
  • Ultra-low emission, EPA and CARB 3-Star rating approved

Easy Operation and Handling

  • Digital CD ignition for easier engine starting, quicker throttle response and smoother trolling
  • Recoil starter with larger reel making manual starting fast and easy
  • Shallow water drive
  • 6 trim positions
  • Adjustable steering friction for reducing steering effort
  • New longer tiller handle (110mm extension)
  • Newly designed holding grip and larger carrying handle

Fundamentals for User Convenience and Reliability

  • Through-the-prop exhaust for a quieter ride
  • Thermostatically controlled cooling system for consistent engine temperature
  • Stainless steel water pump housing liner for outstanding durability
  • High grade marine aluminum alloy that provides the ultimate protection against corrosion
  • Zinc coating on internal water passages for superior corrosion resistance
  • 3.1 Gallon (12 liter) fuel tank with fuel gauge
  • Aluminum propeller

Protection

  • Low oil pressure indicator
  • Safety lanyard (an essential protection feature standard on all Tohatsu outboards)
  • Start-in-gear protection for safer engine starting
  • Over-rev. limiter

FEATURES

SPECIFICATIONS

Engine 4 Stroke 1 Cylinder
Output 5 ps (3.7 kw)
Displacement 123 cc (7.5 cu.in.)
Bore x Stroke 59 x 45 mm (2.32 x 1.77 in)
Starting Manual
Control Type Tiller Handle
Gear Shift Forward - Neutral - Reverse
Gear Ratio 2.15:1
Propeller Selection Range 6" - 9"
Transom Height 15", 20"
Fuel Unleaded Gasoline (87 Octane)
Oil Type NMMA Certified FC-W® 4-stroke oil** SAE 10W-30/40 (SF, SG, SH, SJ)
Oil Capacity 450 mL (15 fl. oz.)
Fuel Tank Internal Fuel Tank Models (MFS5CD) : 1.1L (0.29 US Gal.) Integral Tank (Includes an External Fuel Tank Connector installed on engine to allow user to use an optional external fuel tank), External Fuel Tank Models (MFS5CS) : 12L (3.1 US Gal.) Separate Fuel Tank
Weight* 25 kg (55 lbs.)
Alternator Output Optional: 12V, 60W, 5A
Max. RPM Range 4,500 - 5,500
Digital CD Ignition System Standard
Start In Gear Protection Standard
Thermostat Controlled Cooling System Standard
Through-The-Prop Exhaust Standard
Oil Pressure Warning Standard
Shallow Water Drive Standard
Model Shaft Length Cylinders Tiller Handle Remote Fuel Tank Propeller
MFS5CSS 15" 1 S S
MFS5CSL 20" 1 S S
MFS5CDS 15" 1 S See Note S
MFS5CDL 20" 1 S See Note S
Note : MFS5CD models includes an external fuel tank connector installed on the engine to allow user to connect an optional external fuel tank.
  • Specifications subject to change without notice. Additional models and/or configurations may be available. Contact your local dealer for details.
