OUTBOARDS

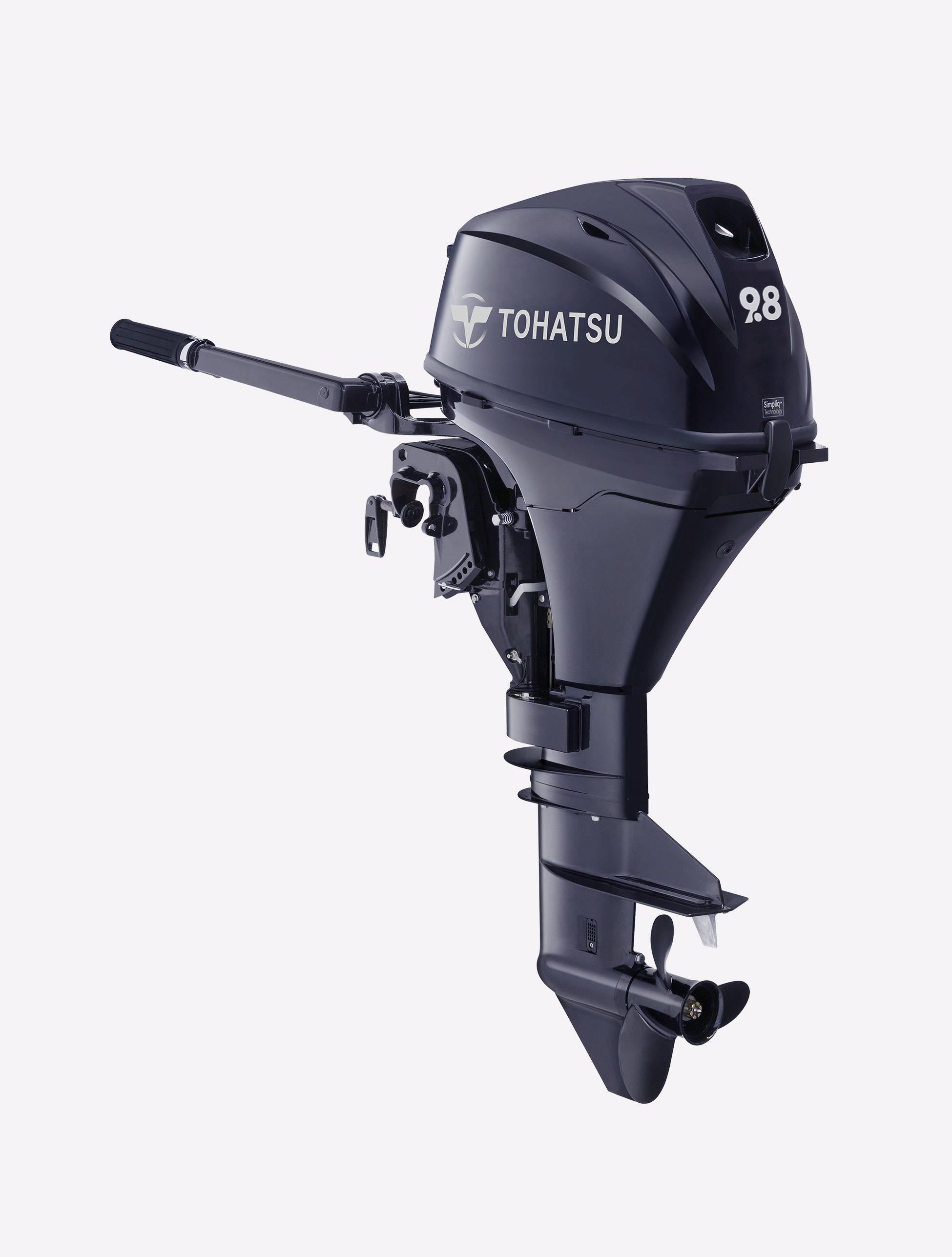

MFS9.8B

PORTABLE

Unmatched in its class, the Tohatsu 9.8 hp 4-stroke has set the standard in portable outboard power! This lightweight motor weighs in at barely over the 80 lb mark and has undeniable characteristics of a true marine champion.

Our 9.8hp outboard is skinny on fuel and big on power while never compromising performance or reliability. It has a ton of features that are usually only found on larger, more expensive outboards. We pack a lot of punch for the buck in this truly unique outboard! In the 10 hp/9.9 hp category, Tohatsu has once again proven itself the leader of the pack with this 9.8 hp 4-stroke.

9.8hp Power Tilt Models Now Available! Tohatsu’s 9.8 hp has a new option. Power Tilt! That’s right, our award winning 9.8hp engines have an added feature that sets it miles apart from the competition. You can’t beat the power and reliability of Tohatsu’s 9.8hp and now with the new power tilt option, why would you try anything else?

Tohatsu 9.8 hp 4-Stroke Benefits

  • Light and compact!
  • Designed with proven technology
  • Available in a wide variety of models
  • Greatly reduced vibration for smooth and stable running at all speeds
  • Greatly reduced induction noise for a quieter ride
  • Trim tab reduces steering effort, functioning also as the sacrificial anode that protects the engine from electrolysis
  • Ultra Low emission, EPA and CARB 3-Star rating approved

Easy Operation and Handling

  • Digital CD ignition for easier engine starting, quicker throttle response and smoother trolling
  • Manual choke on tiller models, electric choke on remote models
  • Recoil starter with larger reel making manual starting fast and easy
  • Shallow water drive*
  • 6 trim positions*
  • Adjustable steering friction for reducing steering effort*

Fundamentals for User Convenience and Reliability

  • Through-the-prop exhaust for a quieter ride
  • Thermostatically controlled cooling system for consistent engine temperature
  • Stainless steel water pump housing liner for outstanding durability
  • High grade marine aluminum alloy that provides the ultimate protection against corrosion
  • Zinc coating on internal water passages for superior corrosion resistance
  • 3.1 Gallon (12 liter) fuel tank with fuel gauge
  • Aluminum propeller

Protection

  • Low oil pressure indicator
  • Safety lanyard (an essential protection feature standard on all Tohatsu outboards)
  • Start-in-gear protection for safer engine starting
  • Over-rev. limiter
*certain models

FEATURES

SPECIFICATIONS

Engine 4 Stroke 2 Cylinder
Output 9.8 ps (7.2 kw)
Displacement 209 cc (12.8 cu.in.)
Bore x Stroke 55 x 44 mm (2.17 x 1.73 in)
Starting Electric or Manual
Control Type Remote Control or Tiller Handle
Gear Shift Forward - Neutral - Reverse
Gear Ratio 2.08:1
Propeller Selection Range 6.5" - 9.5"
Transom Height 15", 20", 25"
Fuel Unleaded Gasoline (87 Octane)
Oil Type NMMA Certified FC-W® 4-stroke oil** SAE 10W-30/40 (SF, SG, SH, SJ)
Oil Capacity 800 mL (27 fl. oz.)
Fuel Tank 12 L (3.1 US Gal.) Separate Fuel Tank
Weight* 37 kg (81.5 lbs.)
Alternator Output Optional: 12V, 80W, 6A (Standard on Electric Start Models)
Max. RPM Range 5,000 - 6,000
Digital CD Ignition System Standard
Start In Gear Protection Standard
Thermostat Controlled Cooling System Standard
Through-The-Prop Exhaust Standard
Oil Pressure Warning Standard
Shallow Water Drive Standard
Power Tilt Option
* Weight specification is based on the lightest version.
** FC-W® is a registered trademark of the National Marine Manufacturers Assoc. (NMMA)
Specifications and descriptions are subject to change without notice.
Model Shaft Length Cylinders Electric Start Tiller Handle Remote Control 12V Charging
System
Power Tilt Remote Fuel Tank Propeller
MFS9.8BS 15" 2 S S S
MFS9.8BL 20" 2 S S S
MFS9.8BUL 25" 2 S S S
MFS9.8BEFS 15" 2 S S S S S
MFS9.8BEFL 20" 2 S S S S S
MFS9.8BEPS 15" 2 S S S S S
MFS9.8BEPL 20" 2 S S S S S
MFS9.8BEFTS 15" 2 S S S S S S
MFS9.8BEFTL 20" 2 S S S S S S
MFS9.8BEPTS 15" 2 S S S S S S
MFS9.8BEPTL 20" 2 S S S S S S
S:Starndard
  • Specifications subject to change without notice. Additional models and/or configurations may be available. Contact your local dealer for details.
