OUTBOARDS

MFS9.9E

PORTABLE

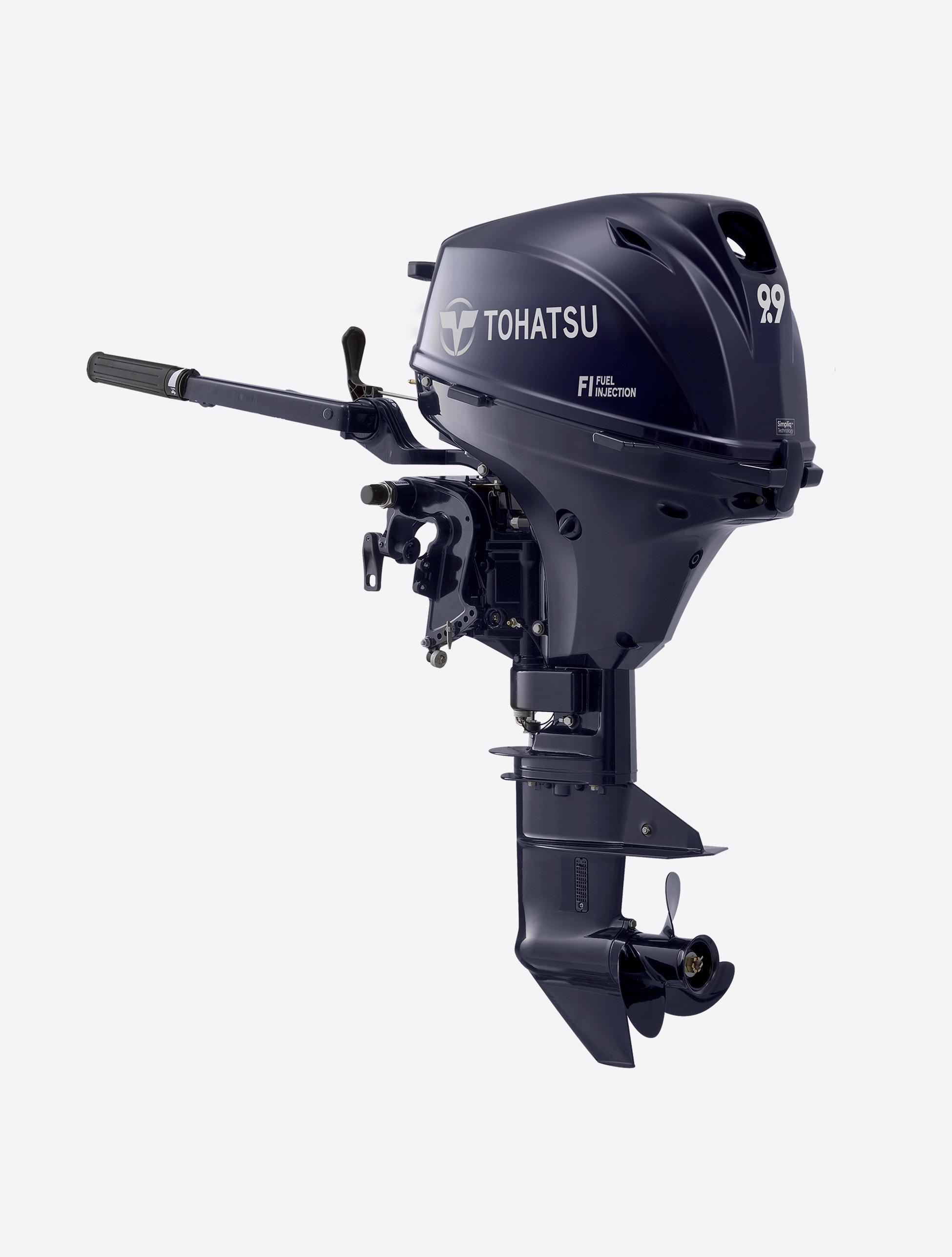

New innovations allowed Tohatsu to introduce a new Electronic Fuel Injection (EFI) four stroke outboard to its lineup; meet the 9.9hp EFI Sport. The lightest weight outboard in its class features exceptional torque and top end speed so you can get where you need to go in a flash. The battery-less EFI system on the MFS9.9 offers superior starting performance as compared to previous carbureted models. Also, with an EFI outboard, no choke is required during start up and you’ll notice smooth, crisp acceleration throughout all RPM ranges.

We set out to completely redesign an already top performing motor, and well exceeded that goal. Tohatsu’s new 9.9 EFI Sport accepts top honors for top speed, fuel consumption at idle and most importantly fuel efficiency at wide open throttle. Our fuel efficiency is so much better than the competition, users can go up to 50% farther on less fuel***.

So what are you waiting for, get a 9.9hp EFI Sport and Feel The Wind?.

The 9.9hp EFI comes in three available shaft lengths, 15”, 20”, and 25”. Tohatsu’s 9.9 hp has a fantastic option for boaters: Power Tilt! Our 9.9hp EFI engine has an added feature on its power tilt models, a 4 blade high thrust propeller that sets it miles apart from the competition. You can’t beat the power and reliability of Tohatsu’s 9.9hp and now with electronic fuel injection and a power tilt option, why would you try anything else?

Tohatsu 9.9 hp EFI 4-Stroke Benefits

  • Battery-less Electronic Fuel Injection (EFI) operation
  • Light and compact
  • Advanced EFI for smooth operation, easier starting and increased fuel efficiency
  • “Light Weight ECO Sport” development and design concept
  • Simpliq™ Technology - the result of continuous technological innovation fueled by the pursuit of nothing less than the very best
  • Designed with innovative technology
  • Available in a wide variety of models
  • Canister style oil filter for easy replacement
  • A high quality, user-friendly fuel water separator
  • Greatly reduced vibration for a smoother and quieter ride
  • Ultra Low emission, EPA and CARB 3-Star rating approved

High Performance and Easy Operation

  • Digital Electronic Control Unit (ECU) for immediate engine starting in all conditions, quicker throttle response and smoother trolling
  • Battery-less EFI with recoil starter on all models
  • Outboard is easier to lift and tilt into shallow drive because we’ve moved heavy components forward
  • Large alternator and rectifier for superior battery charging*
  • Multi-Function Tiller Handle: Stop Switch, Front Shift, Friction Adjusting Screw and Power Tilt Switch (PTS: on power tilt models only) integrated into the tiller handle for convenience
  • Remote control model available
  • Power Tilt Models come standard with high thrust 4-blade propeller
  • Shallow water drive*
  • 90 degree turning radius
  • Adjustable steering friction for reducing steering effort*

Fundamentals for User Convenience and Reliability

  • Through-the-prop exhaust for a quieter ride
  • Thermostatically controlled cooling system for consistent engine temperature
  • Stainless steel water pump housing liner for outstanding durability
  • High grade marine aluminum alloy that provides the ultimate protection against corrosion
  • Zinc coating on internal water passages for superior corrosion resistance
  • 3.1 Gallon (12 liter) fuel tank includes fuel fittings and fuel line with fuel gauge on the cap
  • Aluminum propeller

Warning and Protection

  • Low oil pressure warning (visual and audible**)
  • Safety lanyard (an essential protection feature standard on all Tohatsu outboards)
  • Start-in-gear protection for safer engine starting
  • Over-rev. limiter
*certain models
**remote control models
***research based on Engineering Department at Tohatsu Corporation

FEATURES

Multi-Function Tiller Handle

Stop Switch, Front Shift, Friction Adjusting Screw and Power Tilt Switch (PTS: on power tilt models only) are integrated into the tiller handle for convenience.

Stowable Carrying Handle

We’ve incorporated a carrying handle on the front that can easily be tucked away when not in use.

Fuel Water Separator

A high quality, user-friendly fuel water separator is standard equipment on all EFI 20 | 15 | 9.9 motors. This unique yet simple fuel water separator doesn’t require the use of a single tool to drain the water.

Center of Gravity Improved

By moving heavy components (i.e. crankshaft, driveshaft) 30mm forward compared to the previous model, the tilting weight has decreased by 26% from the previous version, making it much easier for users to tilt manually.

Compact Fuel System Layout for Easy Maintenance

The Vapor Separator Tank (VST) has been designed to integrate the high pressure fuel feed pump, regulator, and fuel cooler into one component.

SPECIFICATIONS

Engine 4 Stroke 2 Cylinder
Output 9.9 ps (7.3 kw)
Displacement 333 cc (20.32 cu.in.)
Bore x Stroke 61 x 57 mm (2.40 x 2.24 in)
Max. RPM Range 5,400 - 6,100
Starting Electric & Manual or Manual
Control Type Remote Control or Tiller Handle
Gear Shift Forward - Neutral - Reverse
Gear Ratio 2.15:1
Propeller Selection Range 6" - 11.5"
Transom Height 15", 20"
Fuel Unleaded Gasoline (87 Octane)
Oil Type NMMA Certified FC-W® 4-stroke oil** SAE 10W-30/40 (SF, SG, SH, SJ)
Oil Capacity 1L (1.06 qt.)
Fuel Tank 12 L (3.1 US Gal.) Separate Fuel Tank
Weight* 43 kg (94.8 lbs.)
Alternator Output Optional: 12V, 145W, 12A (Standard on Electric Start Models)
Start In Gear Protection Standard
Thermostat Controlled Cooling System Standard
Through-The-Prop Exhaust Standard
Oil Pressure Warning Standard
Shallow Water Drive Standard
* Weight specification is based on the lightest version.
** FC-W® is a registered trademark of the National Marine Manufacturers Assoc. (NMMA)
Specifications and descriptions are subject to change without notice.
Model Shaft Length Cylinders Electric Start Tiller Handle Remote Control 12V Charging
System
Remote Fuel Tank Propeller
MFS9.9ES 15" 2 S S S
MFS9.9EL 20" 2 S S S
MFS9.9EEPS 15" 2 S S S S S
MFS9.9EEPL 20" 2 S S S S S
S:Starndard
  • Specifications subject to change without notice. Additional models and/or configurations may be available. Contact your local dealer for details.
