OUTBOARDS

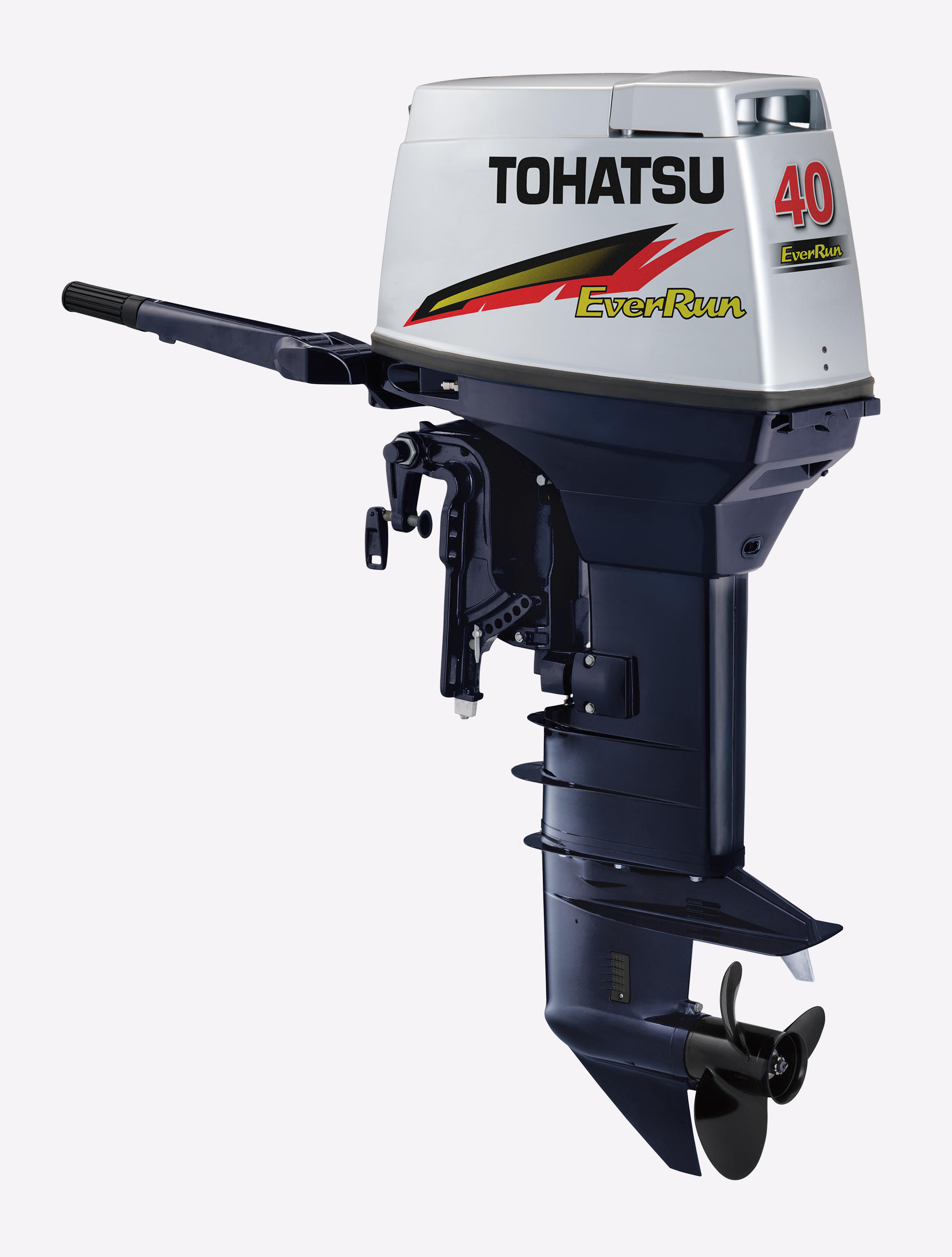

MX40D3

MID RANGE

Globally well reputed Tohatsu 2 Stroke 40 2-stroke has been upgraded for its further possibilities. These models are the best choise for the commercial fisherman and of course for the pleasure boaters as well. Experience the brilliantly modified EverRun Model.

Tohatsu 2-stroke EverRun benefits

  • Excellent reliability with proven 2-stroke technology
  • Simple in design
  • More Durability
  • More Power
  • New Top Cowl graphic

Easy operation and handling

  • Loop charged induction for smooth operation and fuel economy
  • CD ignition system for quicker starts
  • Easy maintenance access
  • Optimized Standard Propeller
  • Easy shift operation
  • Smoother acceleration

Fundamentals for user convenience and reliability

  • Through-the-prop exhaust for a quiet ride
  • Thermostatically controlled cooling system for consistent engine temperature
  • Stainless steel water pump housing for outstanding durability
  • High grade marine aluminum alloy that provides the ultimate protection against corrosion
  • Zinc coating on internal water passages for superior corrosion resistance
  • Aluminum propeller
  • Adopted;
    - Low compression ratio cylinder head
    - Loose Needle Bearing
    - Chrome Plated Half Key-Stone Top Piston Ring to increase durability
    - Maintenance parts kit is included inside the engine carton box.

Warning and protection

  • Electronic Safety Governor limits engine rpm to protect the outboard against over-reving
  • Overheat warning*
  • Safety lanyard (an essential protection feature standard on all Tohatsu outboards)
  • Start-in-gear protection for safer engine starting
* Electric start models

SPECIFICATIONS

Engine Two Stroke 3 Cylinder
Output 40 ps (29.4 kw)
Displacement 697 cc (42.53 cu.in.)
Bore x Stroke 68 x 64 mm (2.68 x 2.52 in)
Starting Electric or Manual
Control Type Tiller Handle
Gear Shift Forward - Neutral - Reverse
Gear Ratio 2.08 (13:27)
Propeller Selection Range 7" - 17"
Transom Height 15", 20", 22.5", 25"
Fuel Unleaded Gasoline (87 Octane)
Oil Type Genuine recommended 2stroke engine oil (TCW-3)
Fuel Tank 25 L (6.6 US Gal.) Separate Fuel Tank
Weight* 72 Kg (159 lbs.)
Alternator Output Optional: 12V, 130W, 11A (Standard on Electric Start Model)
Max. RPM Range 5,000 - 5,800
Start In Gear Protection Standard
Thermostat Controlled Cooling System Standard
Through-The-Prop Exhaust Standard
Overheat Buzzer O
Shallow Water Drive Standard
Engine lubrication system Premixed Fuel
* Weight specification is based on the lightest version.
Specifications and descriptions are subject to change without notice.
Model Shaft Length Cylinders Electric Start Tiller Handle Remote Fuel Tank Propeller
MX40D3S 15" 3 S S S
MX40D3L 20" 3 S S S
MX40D3LL 22.5" 3 S S S
MX40D3UL 25" 3 S S S
MX40D3EFL 20" 3 S S S S
  • Specifications subject to change without notice. Additional models and/or configurations may be available. Contact your local dealer for details.
