OUTBOARDS

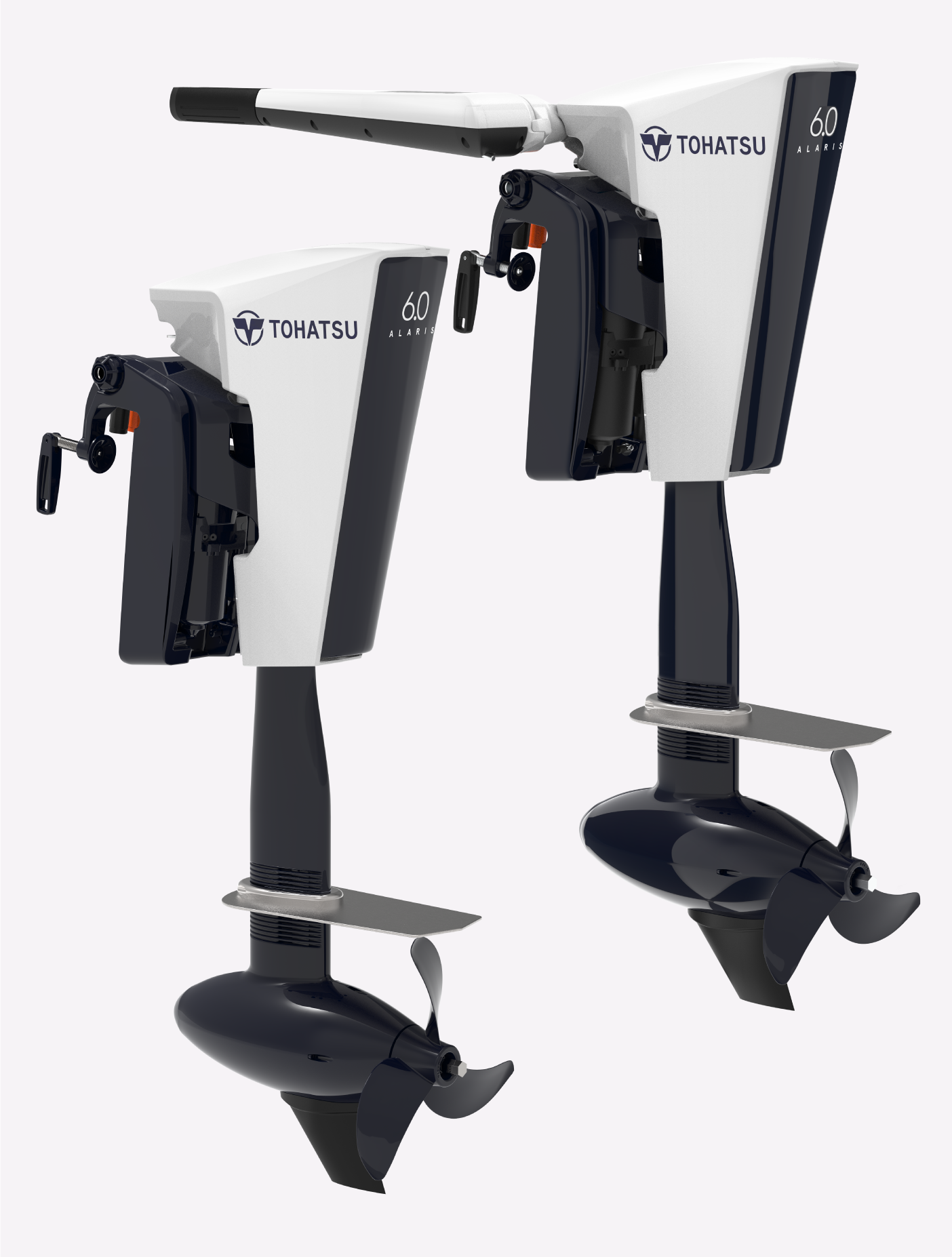

ALARIS™ 6.0
PORTABLE
Immerse yourself in the tranquility of nature, feel the rush of acceleration, and embrace a greener future. Welcome to that world with the all-new ALARIS™ 6.0kW electric outboard, the pinnacle of electric propulsion technology for watercraft enthusiasts. Unleash the power of the future technology today!
This model is for USA, CANADA, EU only.
ALARIS™ 6.0kW Electric Propulsion Benefits
- Brushless DC Motor
- Built in GPS
- Passive cooling
- No exhaust fumes and emissions
- Smooth and quiet operation
- Available in short (15”), long (20”), ultra long (25”) transom height
High Performance and Easy Operation
- Integrated Power Tilt
- 3” touch screen control display for remote model and 4.6” touch screen control display for tiller model with variety of functions such as, Integrated Pass Key, Diagnostics, Speed, Tilt position, Battery type, Battery level, multiple-language selection (English, Spanish, Dutch, French, German, Italian)
Fundamentals for User Convenience and Reliability
- Lithium, Lead-Acid or AGM Battery configuration
- Side and Top mounted control to fit wide range of boat and rigging options
- Less maintenance and enhanced longevity achieved by “passive cooling”
Warning & Protection
- Corrosion-preventive materials are selected for use in brackish water or saltwater
- Safety lanyard (an essential protection feature standard on all Tohatsu outboards)
- Replaceable skeg
FEATURES
Integrated power trim & tilt
Incorporated Electric-Hydraulic Tilt comes standard. Trim buttons are located on the control box.
Passive cooling
Motor and heat sync are located underwater, resulting in passive cooling. Passive cooling does not require moving parts, resulting in less maintenance and enhanced longevity.

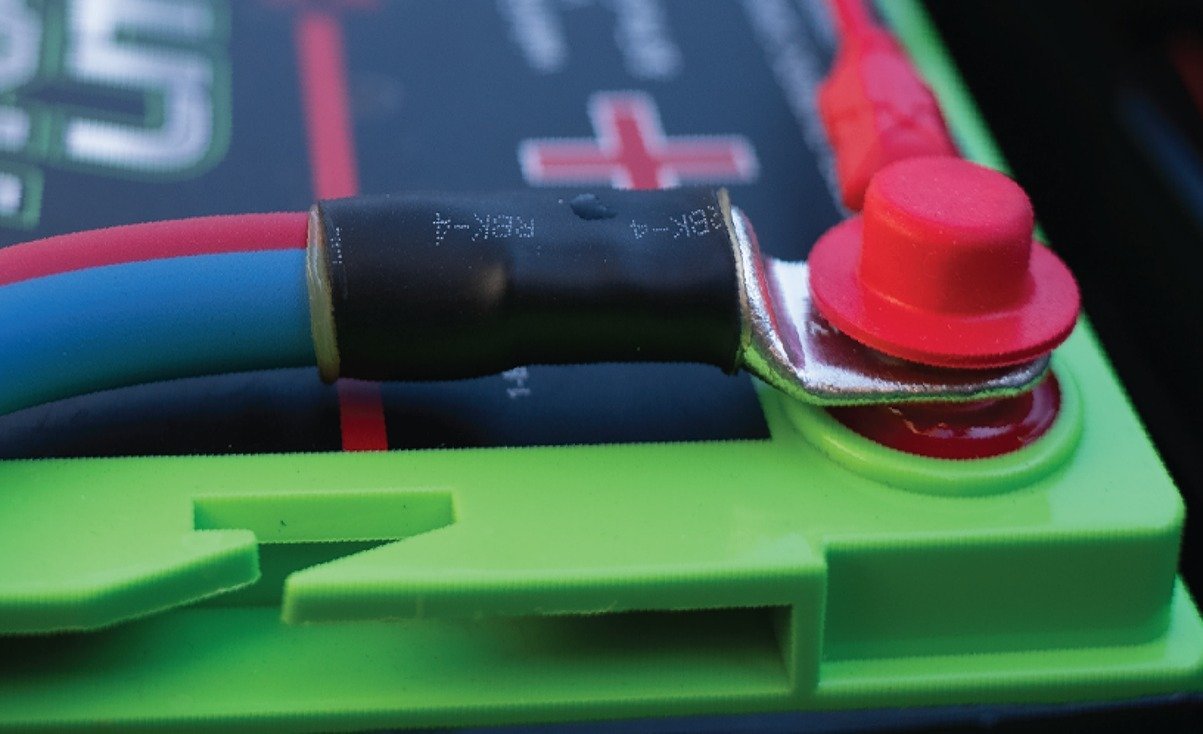

Flexible battery configurations
・48-60V ・Compatible with: - Lithium Ion - Lithium Iron Phosphate - AGM - Lead Acid *Power cable set with battery switch included
Bulit-in GPS
GPS is built in to the outboard and provides data to the Control Display, eliminating the need for a separate speedometer.
3" touch screen control display for remote model
・Integrated Pass Key ・Diagnostics ・Speed, Tilt and Trim ・Battery Type, Percentage ・Language Selection
Side or Top mount controls for remote model
Available in both side and top-mount, the control box fits a wide range of boat and rigging options. Includes the Tohatsu standard safety lanyard.
Integrated Shift in Handle

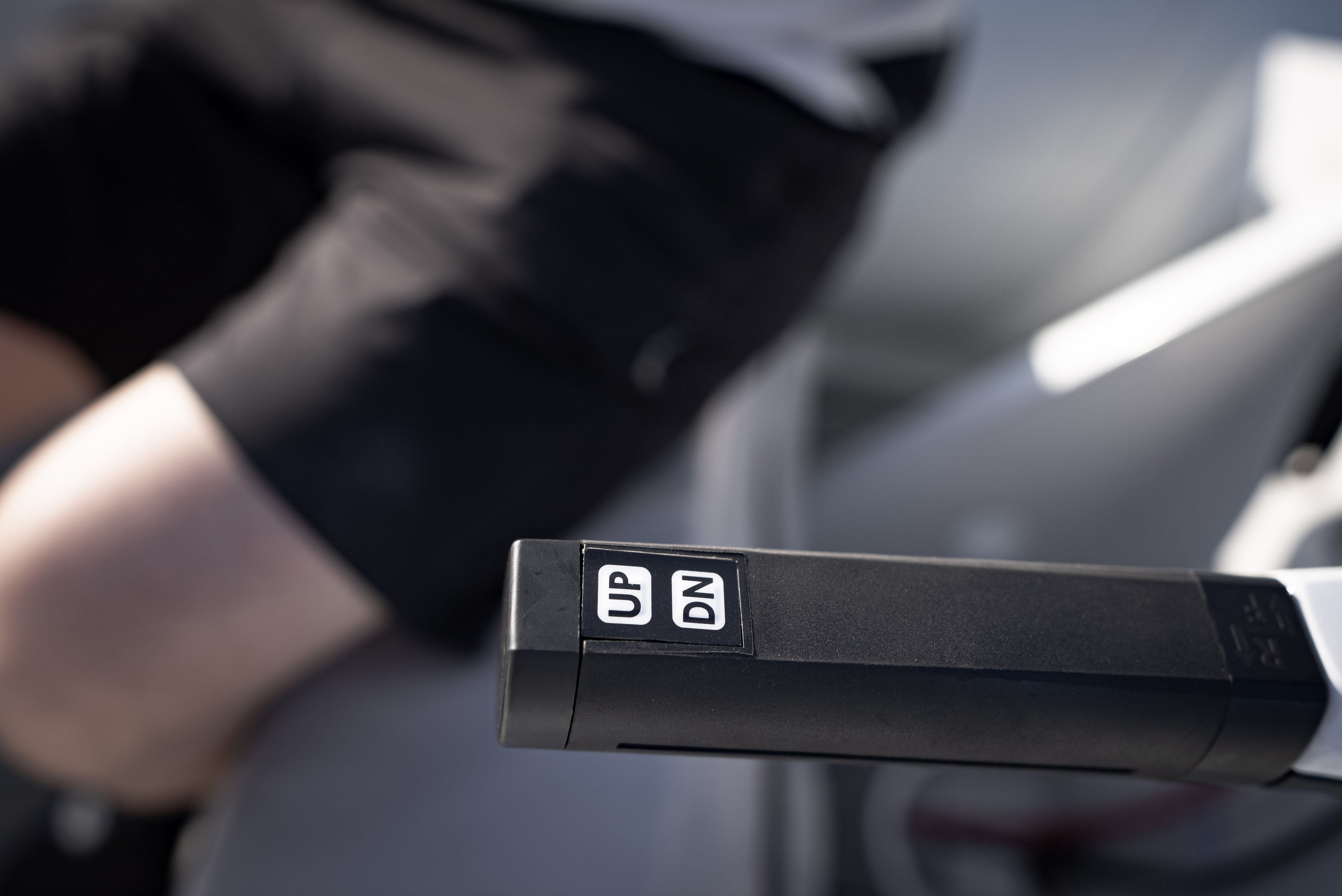

The innovative design integrates shift and throttle controls into the tiller handle, allowing seamless steering, acceleration, and gear changes. All with one hand and without the need for a separate shift lever. Incorporated electric-hydraulic trim and tilt also comes standard on the ALARIS™ 6.0, enabling smooth and effortless adjustment directly from the tiller handle grip.

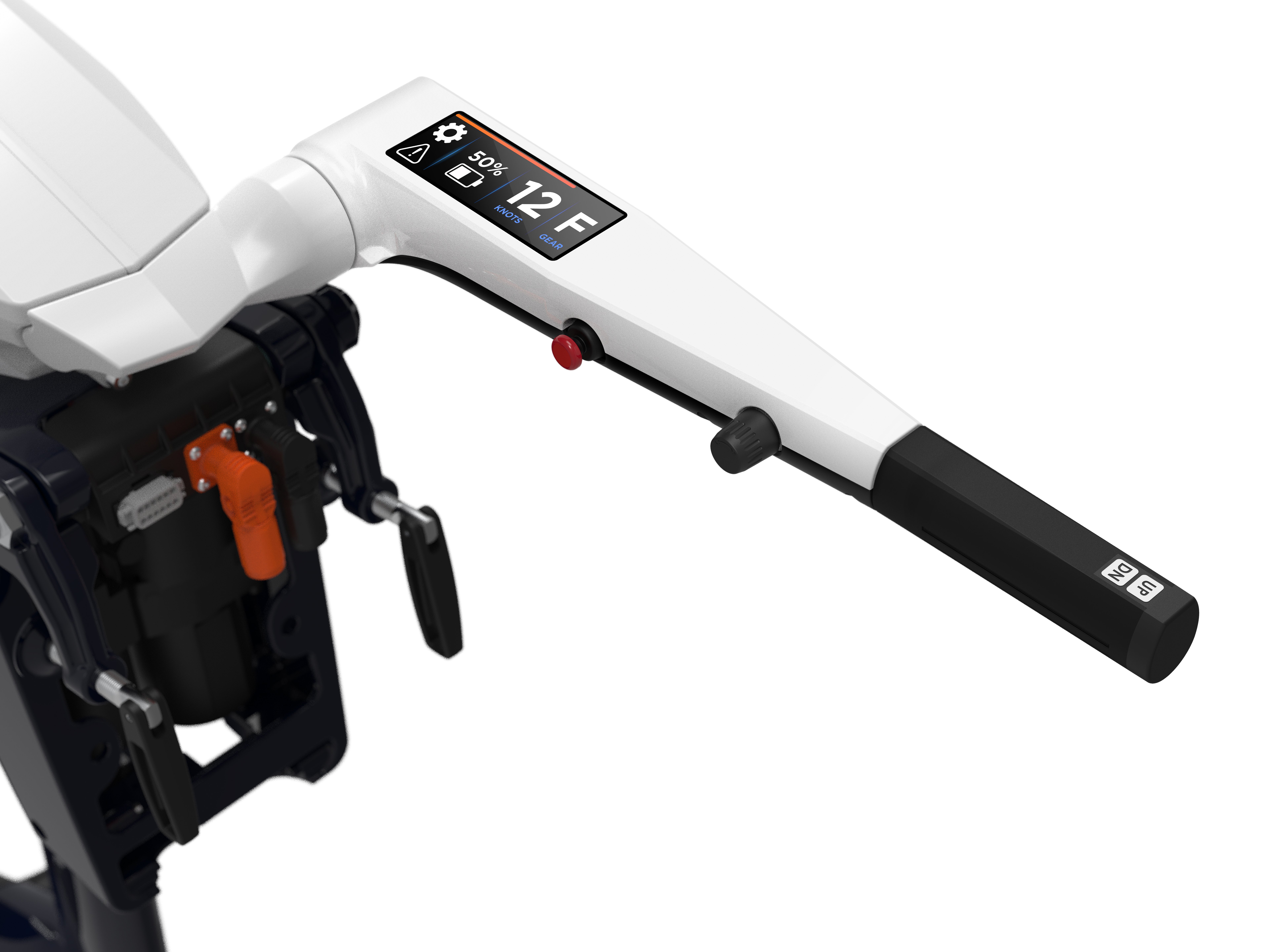

Built-in 4.6'' touch screen control display
Experience a tiller handle featuring a 4.6-inch touchscreen display with digital pass key security, real-time speed-over-ground monitoring, battery status, and a clear gear indicator for forward, neutral, and reverse. For enhanced safety, the standard Tohatsu safety lanyard and stop switch provide reliable operator protection.

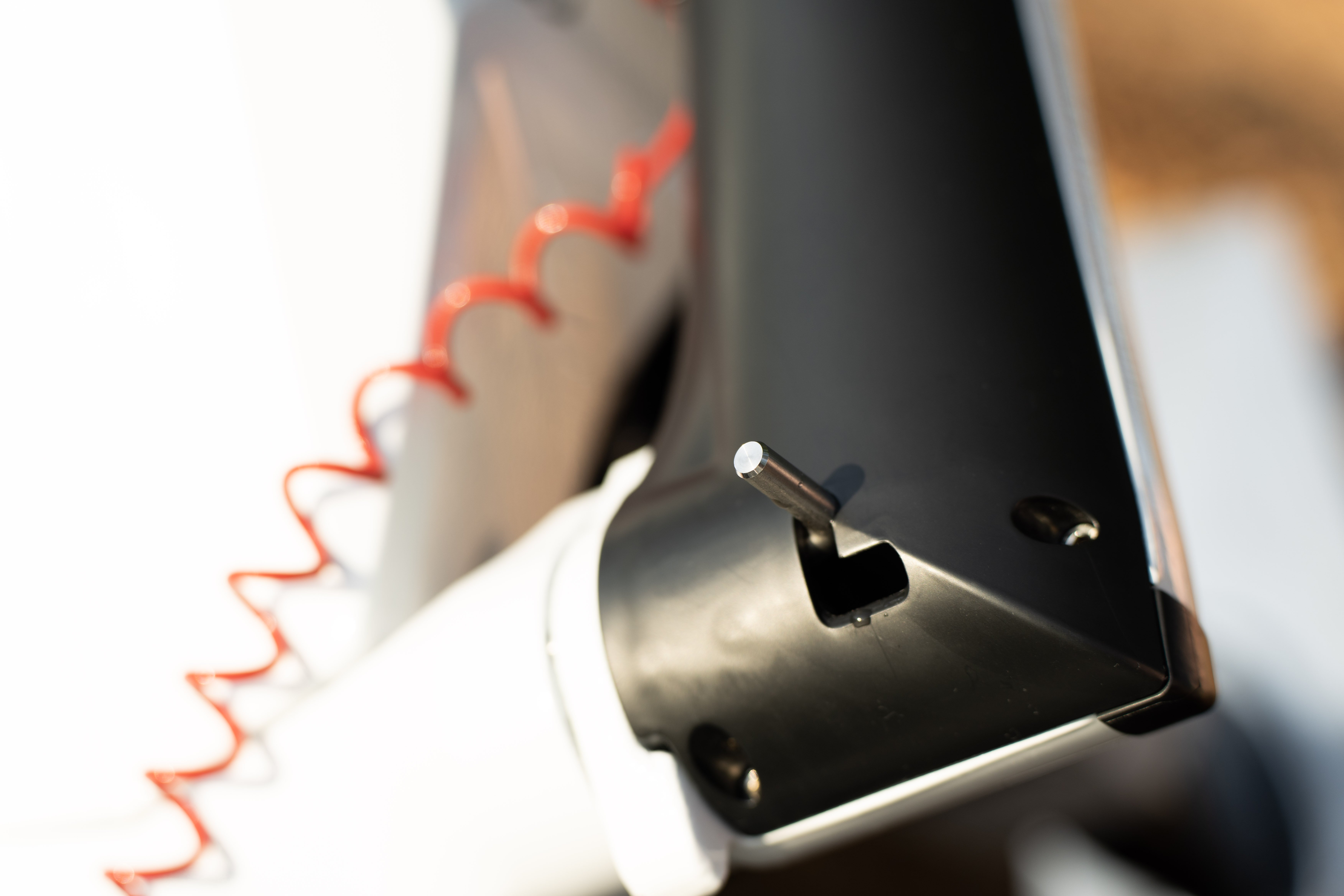

Tiller handle strage position
The tiller handle can be securely locked in the storage position for easy transport and storage. It also has a resting pad so that it can be laid down on the tiller handle side for transportation.
SPECIFICATIONS
| Input Power | 6.0kW | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Motor Type | Brushless DC Motor | ||||||||||
| Motor Weight* | 32.0kg (70.5lbs) fro remote model / 35.1kg (77.3lbs) for Tiller Model | ||||||||||
| Max. RPM Range | 1300 | ||||||||||
| Cooling | Passive | ||||||||||
| Transom Height | 15", 20", 25" | ||||||||||
| Propeller | Standard - 11" / Optional - 8" & 14" | ||||||||||
| Power Trim and Tilt | Integrated | ||||||||||
| Gauge | 3" touch screen control display for remote model / 4.6" touch screen control display for tiller model | ||||||||||
| Comparable Gas Outboard HP | 9.9ps | ||||||||||
| Compatible Battery Types** | Lithium Ion, Lithium Iron Phosphate, AGM, Lead Acid | ||||||||||
| Rated Voltage | 48-60V | ||||||||||
| Battery runtime expectancy (theoretical value)*** |
|
**The ALARIS™ 6.0 is battery agnostic allowing you to select the battery type that best fits your boating needs and budget. See dealers for battery options.
***Battery runtime expectancy is calculated based on typical (4) 100Amp-Hour 48V nominal lead-acid battery configuration.
- Specifications subject to change without notice. Additional models and/or configurations may be available. Contact your local dealer for details.
