OUTBOARDS

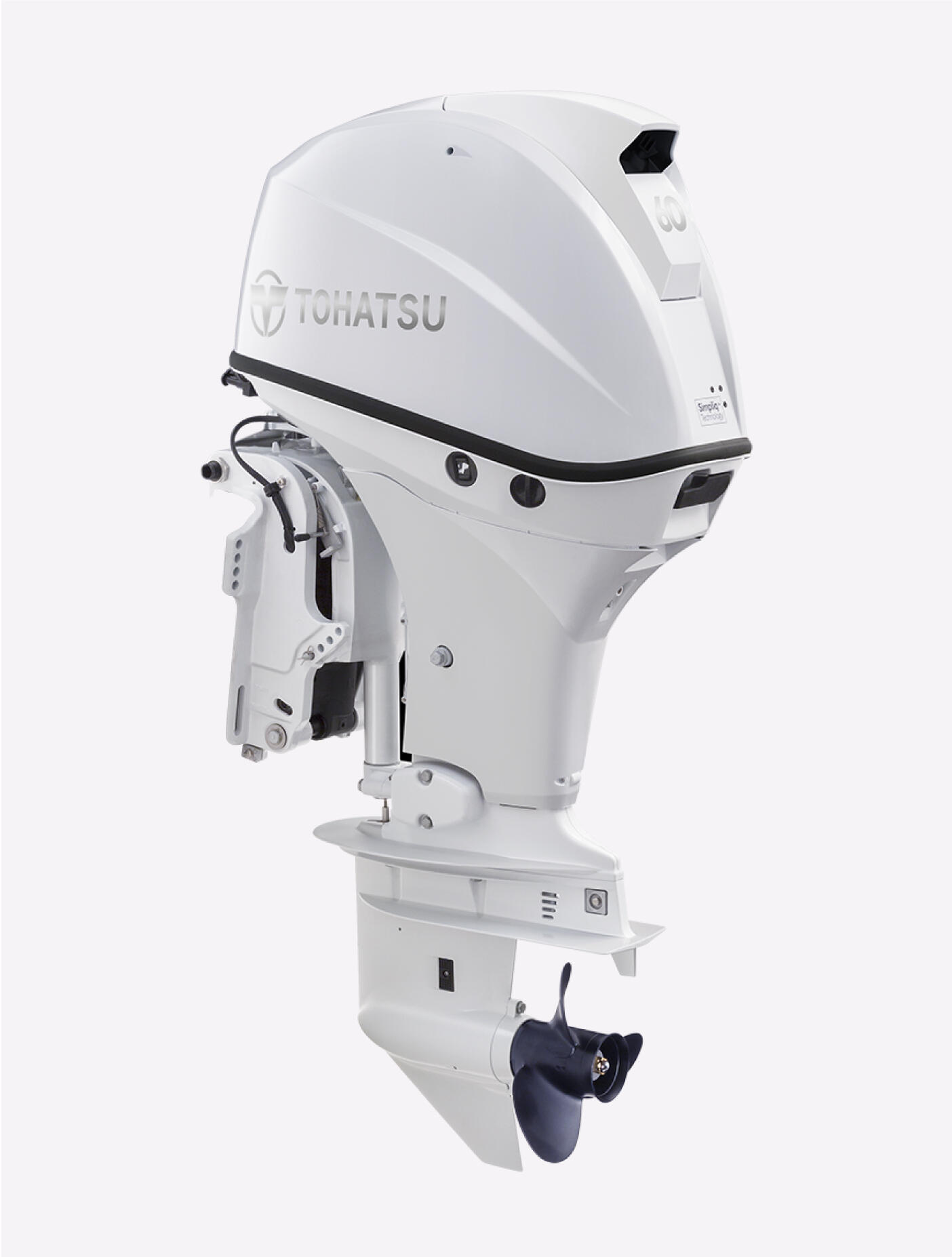

MFS60A(White)

MID RANGE

With a sleek look with Beluga White color, the new MFS60AW 4-stroke outboard has been created with new technologies and characteristics. By using proven technology such as; electronic fuel injection (EFI), dual intake valves, anodized pistons and a modified roller rocker arm, your time on the water will be equipped with smoother and faster acceleration.

Tohatsu is determined to provide an engine to back you up on all your activities. Armed to deliver a powerful ride, the 60hp EFI four stroke not only offers accelerating speed while using less fuel, but provides the lightest weight in its class to muscle your boat applications without sacrificing performance.

Equipped with standard features such as variable idle speed allowing you to change the idle speed from 650 to 950 rpm’s, a low gear ratio giving you the increased low end torque your boat needs, a freshwater flushing system designed to make routine flushing easier, and a high output 21 amp alternator, the MFS60 provides the industry leading features you expect from Tohatsu.

Tohatsu 60 hp 4-Stroke Benefits

  • Sleek design with monochrome tilt handle
  • SOHC with unique 9-Valve Design
  • Outstanding fuel economy
  • Lightest weight in its class, just 98.5 kg.
  • Available in long (20”) shaft lengths
  • Ultra-low 3 star CARB emission approved

High Performance and Easy Operation

  • Electronic Fuel Injection
  • Digital CD ignition system for quicker starts
  • High output 21 amp alternator
  • New and improved gear case with lower gear ratio for increased low end torque
  • Adjustable steering friction and trim tab for reducing steering effort
  • Power trim & tilt

Fundamentals for User Convenience and Reliability

  • Through the prop exhaust for a quieter ride
  • Built-in freshwater flushing system for easy routine flushing
  • Variable idling speed control from 650 to 950 rpm’s
  • A camshaft-driven trochoid oil pump ensures long-term durability of critical engine components
  • Stainless steel water pump housing liner for outstanding durability

Warning & Protection

  • Low oil pressure warning (visual and audible)
  • Overheat warning (visual and audible)
  • Battery voltage warning (visual only)
  • Start-in-gear protection for safer engine starting
  • Safety lanyard (an essential protection feature standard on all Tohatsu outboards)
  • Over-rev. limiter

FEATURES

SOHC 9-Valve and Roller Rocker Arms

SOHC with unique 9-Valve Design with roller rocker arms provide minimal friction offering quicker throttle response more durable against wear and tear.

Multi-Function Tiller Handle is available on select models.

The multi-function tiller handle features an ergonomically designed shift lever for easy and convenient shifting as well as a longer throttle grip with 110 degrees rotation for easier maneuverability. All controls on the new multi-function tiller are conveniently located on the handle for easy access and control. More specifically, the gear shift, throttle control, trim switch, safety lanyard cord, TLDI® warning lights, and electric start key switch are all integrated in the tiller handle.

Variable Idling System

allows trolling speed (RPM) to be adjusted in four levels from 650rpm to 950rpm (100rpm each) using the key-switch.

Built-in freshwater flushing system

Standard built-in freshwater flushing system simplifies routine engine flushing.

Audio Visual Warning System

The tachometer informs the operator of potential problems such as low oil pressure, low battery, and overheat, through the built-in warning lights. (For models equipped with a tachometer)

SPECIFICATIONS

Engine 3 Cylinder
Output 60 ps (44.1 kw)
Displacement 866 cc (52.9 cu.in.)
Bore x Stroke 70 x 75 mm (2.76 x 2.95 in)
Starting Electric
Control Type Remote Control or Tiller Handle
Gear Shift Forward - Neutral - Reverse
Gear Ratio 2.08:1
Transom Height 20"
Fuel Unleaded Gasoline (87 Octane) or higher
Oil Type NMMA Certified FC-W® 4-stroke oil**
Weight* 98.5 kg (217 lbs.)
Alternator Output 12V, 252W, 21A
Max. RPM Range 5,000 - 6,000
Digital ECU Controlled Ignition System Standard
Electronic Fuel Injection Standard
Start In Gear Protection Standard
Thermostat Controlled Cooling System Standard
Through-The-Prop Exhaust Standard
Overheat Buzzer Standard
Power Trim and Tilt Standard
Oil Pressure Warning Standard
* Weight specification is based on the lightest version.
** FC-W® is a registered trademark of the National Marine Manufacturers Assoc. (NMMA)
Specifications and descriptions are subject to change without notice.
Model Shaft Length Cylinders Electric Start Tiller Handle Remote Control 12V Charging
System
Power
Trim &Tilt
Remote Fuel Tank Propeller
MFS60AWETL 20 3 S See Note See Note S S S S
S:Starndard
Note : Control type can be chosen from multi function tiller and remote control.
Specifications subject to change without notice. Additional models and/or configurations may be available. Contact your local dealer for details.
  • Specifications subject to change without notice. Additional models and/or configurations may be available. Contact your local dealer for details.
