Medium flow

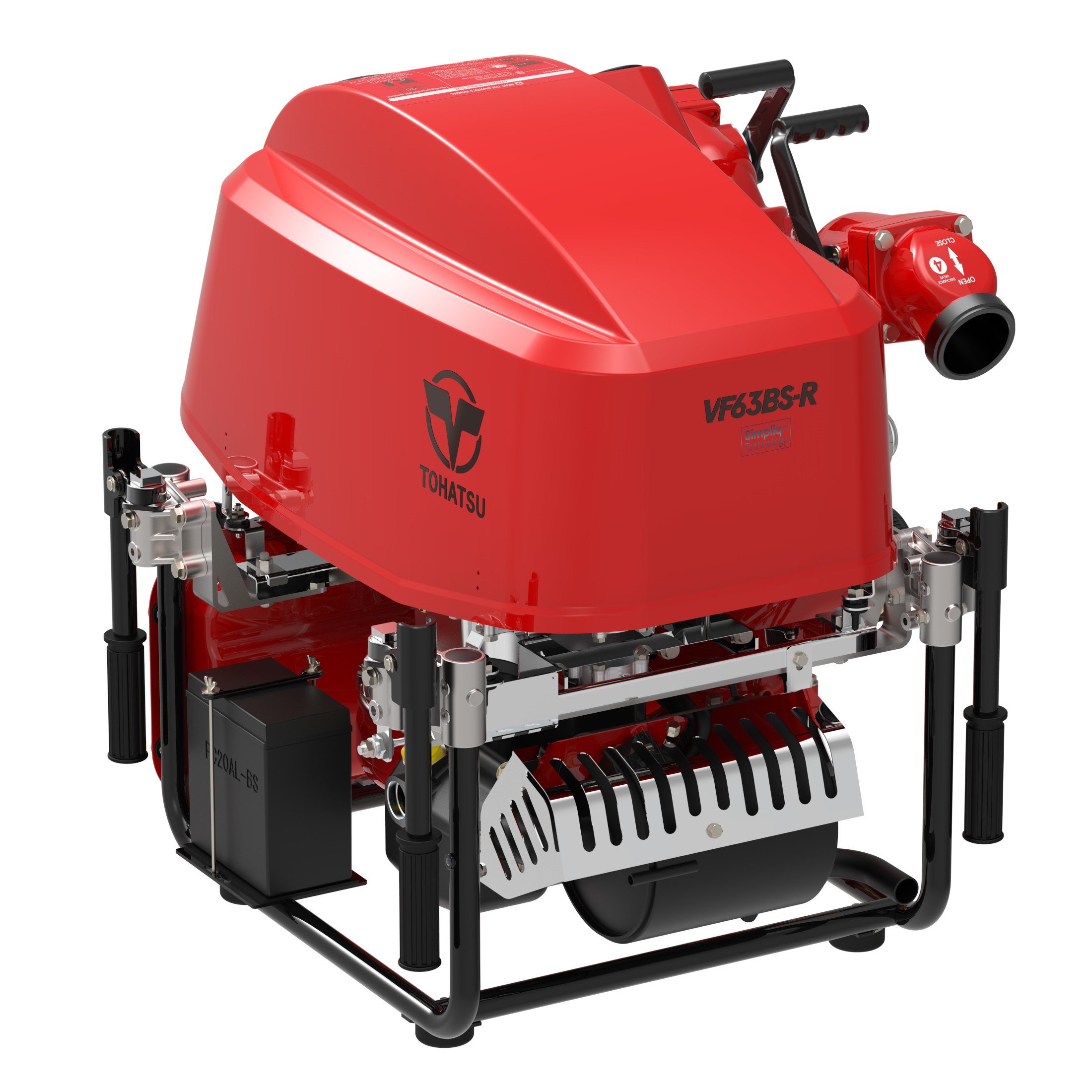

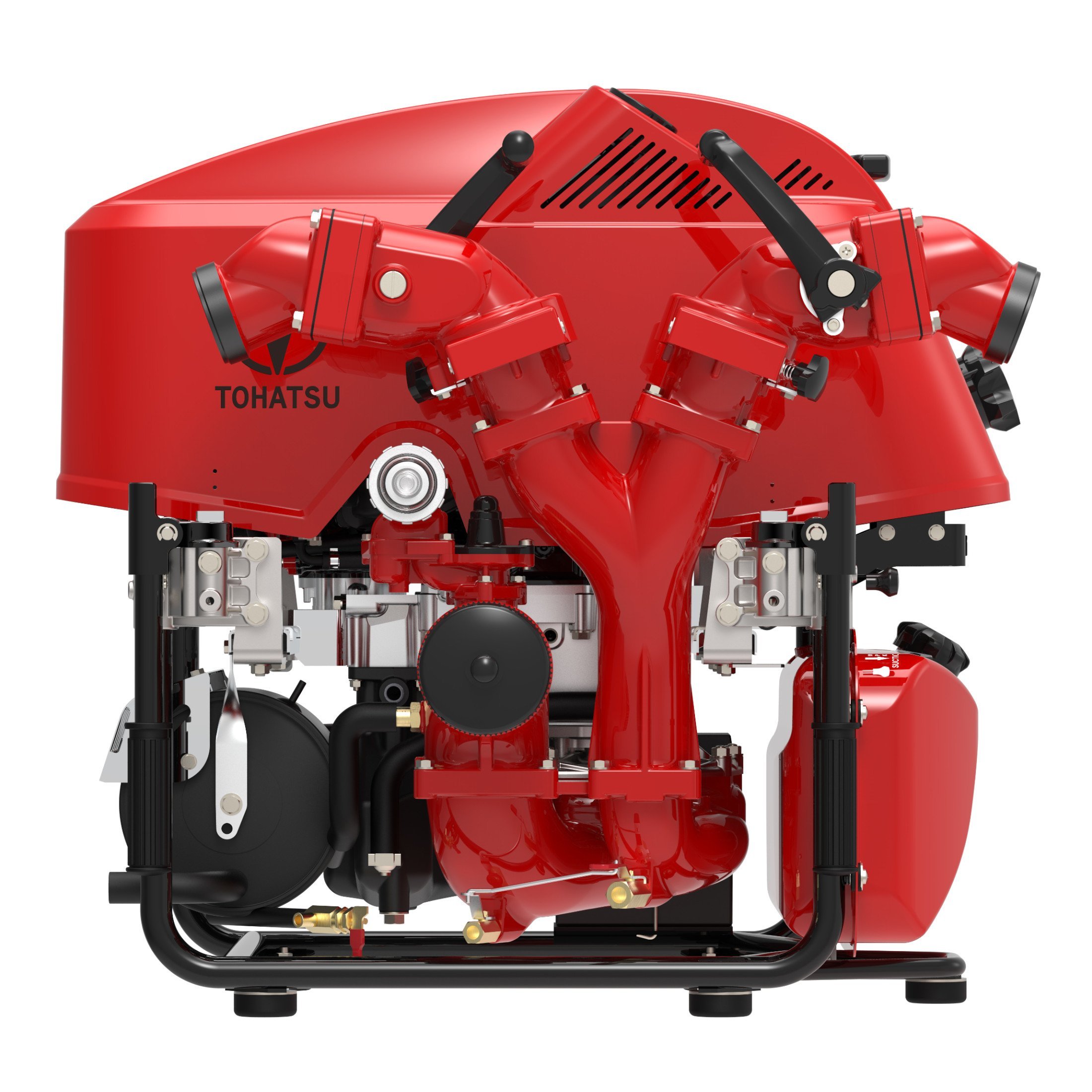

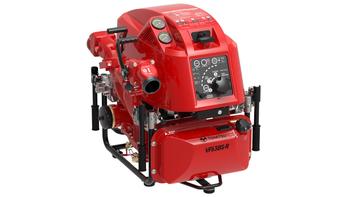

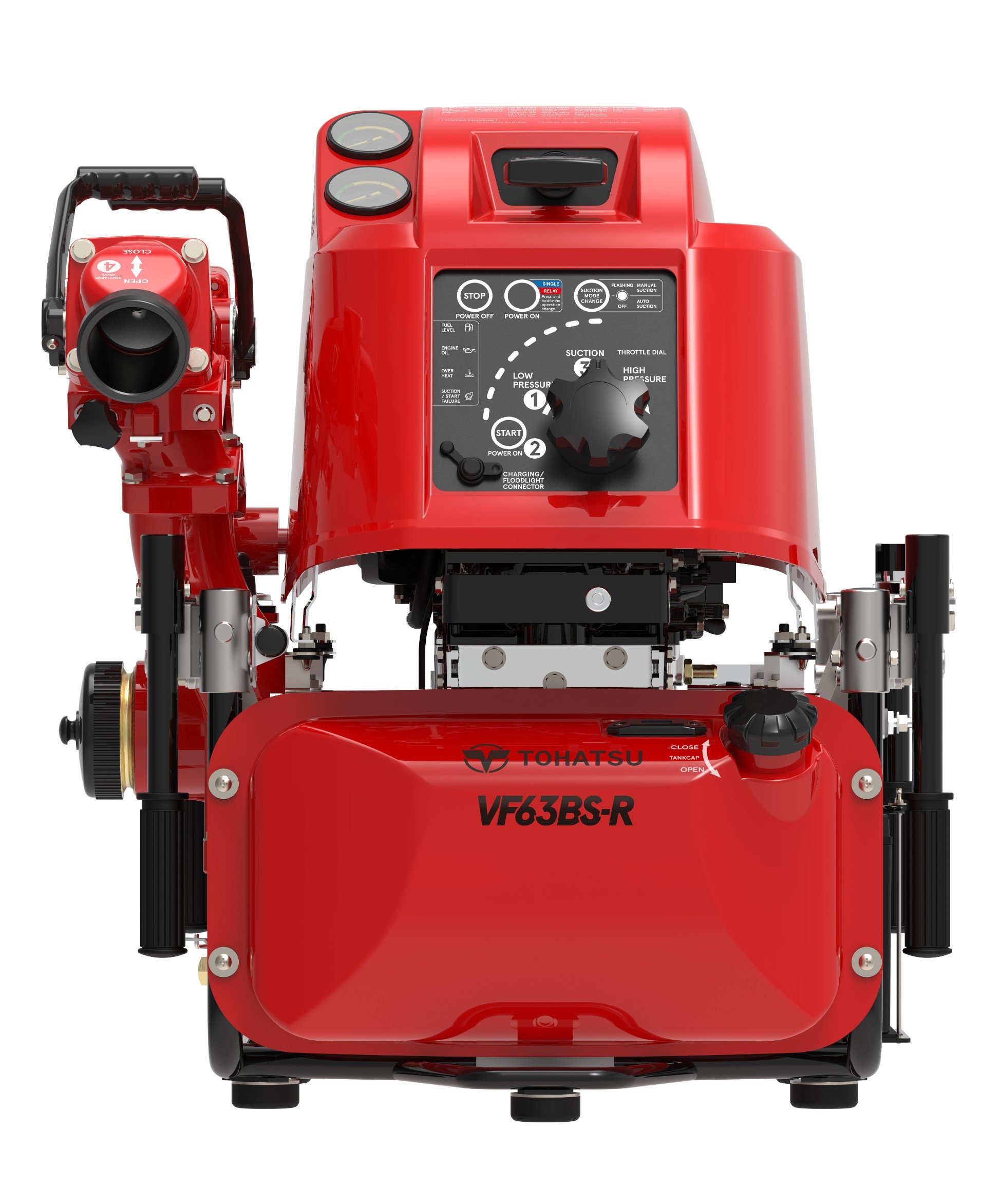

VF63BS-R
VF63BS-R

VF63BS-R

4-stroke automatic relay pump.

Unique, like no other. The successor to the world's first automatic relay pump.

Engine
500mL Tohatsu 4-stroke, water-cooled gasoline engine
Authorized output
22kW(30PS)
Pump performance
1200 liter / min. at 0.6MPa
950 liter / min. at 0.8MPa
700 liter / min. at 1.0MPa
Priming
Auto Priming
Dry weight
85kg

The method of the relay pumping operation(Tohatsu VF63AS-R)

Features

Example of use in automatic relay operation (No operator is required at the relay pump). The relay pumping line with VF63BS-R can be extended endlessly. When the water hits the VF63BS-R, engine and pump function are automatically started which means that no one need to be on and operate the pump pressure. When the water from master pump stops, the VF63BS-R is also stopped automatically. It is fully-automatically controlled and providing new solution for forest/wild land fire and long distance water transfer action.

Specifications

Specification VF63BS-R
Engine Type 4-stroke
Number of Cylinder 3 Cylinders
Cooling System Suction Water Cooled
Bore x Stroke 61 x 57 mm (2.4 x 2.24 inch)
Piston displacement 500ml (30.5 cu in)
Output 22kW (30 PS)
Fuel Type Unleaded Gasoline (Min. 87 Octane)
Fuel Tank Capacity 10 Lit (2.64 gal)
Fuel Consumption Approx. 9 L/hr (2.38 US gal/hr) (at 0.7 MPa 1000 L/min)
Fuel System Electronic Fuel Injection
Oil Tank Capacity 1.6 L (1.7 US qt.) when replacing oil filter : 1.7 L (1.8 US qt.)
Starting Electric and recoil
Suction Suction System 4 Blade Rotary-vane vaccum pump (Oilless-type)
Priming System Auto Priming and Manual Priming
Pump Pump Type Single Suction, Single Stage, High Pressure Turbine Pump
Suction Thread and Dia. NH 4" (100mm)
-
Discharge Thread and Dia. NH 2-1/2" (65mm)
-
Discharge Number Twin
Discharge Valve Ball
Weight Dry Weight 85 kg (186 lbs)
Wet Weight 100 kg (219 lbs)
Dimension(mm) Overall
Length x Width x Height
635 x 780 x 740

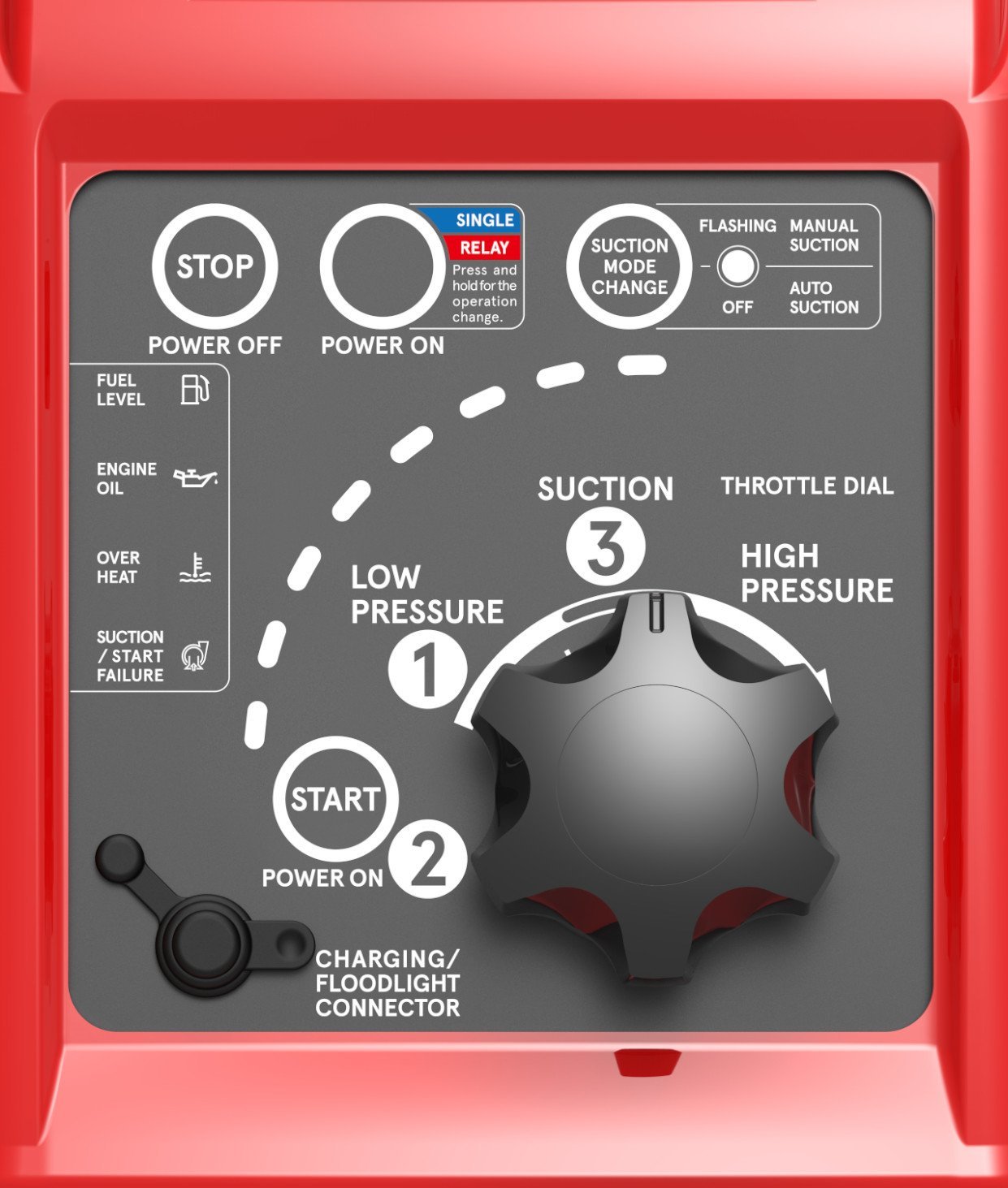

Remote Control Panel
*optional
Number of Panel (Maximum) -
Length of cable for panel -
NOTE NH: National Standard Thread
