OUTBOARDS

MFS5LPG

PORTABLE

Thanks to Tohatsu’s 5hp Propane / Liquefied Petroleum Gas (LPG) outboard, sailors are no longer forced to carry gasoline on board. The 5hp LPG comes equipped with a fuel line that will connect to any standard North American propane tank. Our innovative LPG outboard will run for a full 5 hours at WOT on a single 11lb propane tank, without sacrificing performance.

Tohatsu’s Propane outboard is equipped with a Safety Fuel Shut Off Valve which keeps propane fuel from continuously flowing when the engine is not in use. Plus, since the 5hp LPG does not require ethanol or gas, this propane outboard requires almost zero maintenance on fuel related components. We offer a 20” and 25” shaft SailPro model which includes a 12V 60W 5A charging system and high thrust prop. What sailor doesn’t want a virtually maintenance free engine that has their back?

This portable best-seller has been upgraded with newly designed top and bottom cowls based on Tohatsu Design Philosophy for Marine Products with ergonomically designed front and back carrying handles.

In addition, you can now store your engine in 3 different positions without worrying about oil spillage.
*Please refer to Owner's Manual for storage and transportation guidelines.

Tohatsu 5hp Propane 4-Stroke Benefits

  • Newly designed top and bottom cowls based on Tohatsu Design Philosophy for Marine Products
  • Sailors are no longer forced to carry gasoline on board
  • No possibility of ethanol/gasoline related failures
  • Virtually maintenance free fuel system
  • 30% cleaner emissions*
  • Quieter operations without compromising engine performance
  • 3-way storage positions without worrying about oil spill
  • Ultra-low emission, EPA and CARB 3-Star rating approved
  • 5 Year limited warranty
*Based on Tohatsu Corporation Engineering Department data.

Easy Operation and Handling

  • Newly designed Tohatsu’s unique front and back carrying handles for easier transportation
  • Digital CD ignition for easier engine starting, quicker throttle response and smoother trolling
  • A larger recoil reel and compression release valve makes starting fast and easy
  • Shallow water drive and 6 trim positions
  • Adjustable steering friction for reducing steering effort
  • Optional steering lock kit available

Fundamentals for User Convenience and Reliability

  • Through-the-prop exhaust for a quieter ride
  • Aluminum rubber hub propeller for quieter operation, less vibration and better performance
  • Thermostatically controlled cooling system for consistent engine temperature
  • Stainless steel water pump housing liner for outstanding durability
  • High grade marine aluminum alloy that provides the ultimate protection against corrosion
  • Zinc coating on internal water passages for superior corrosion resistance

Protection

  • Low oil pressure indicator
  • Safety lanyard (an essential protection feature standard on all Tohatsu outboards)
  • Start-in-gear protection for safer engine starting
  • Over-rev. limiter
  • Exclusive Fuel Safety Shut Off Valve

FEATURES

Front & Back Large Carry Handles

Ergonomically designed new Large Front & Back Carrying Handles which allow easier carry and transportation from having one handle positioned slightly below another.

3-Way Storage

3-way storage positions (Port, Front & Starboard side down) without worrying about oil spill. *Please refer to Owner's Manual for storage and transportation.

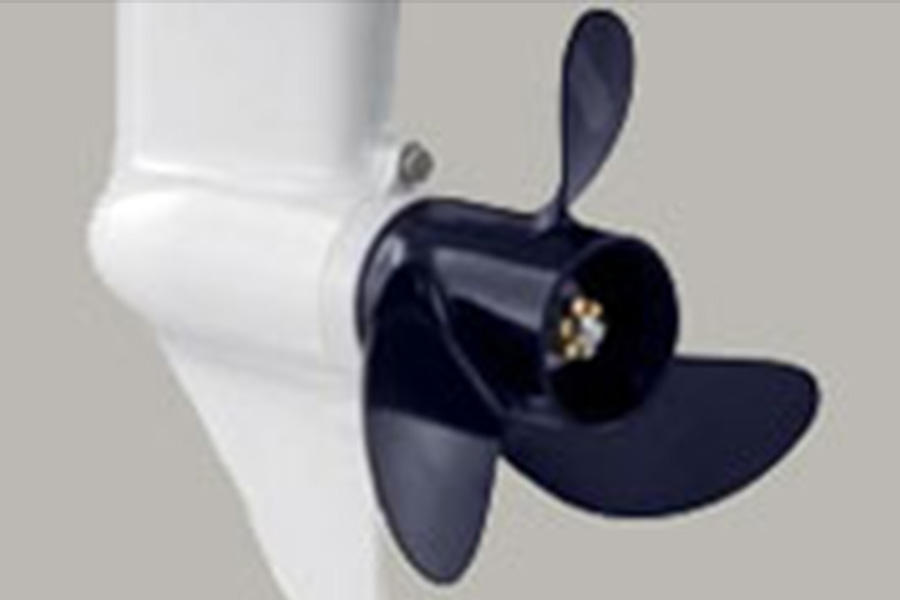

Propeller Hub Exhaust

Through-the-prop exhaust helps reduce engine noise.

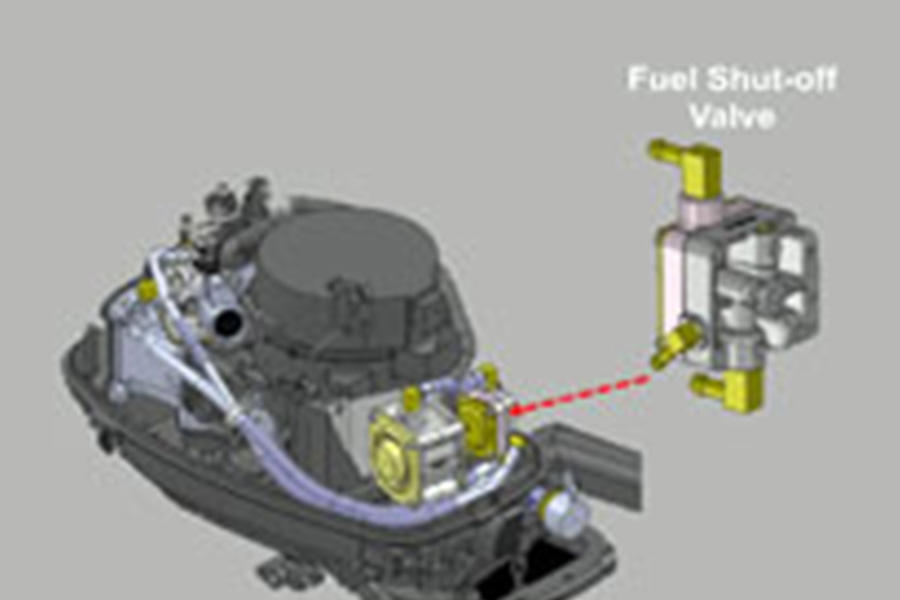

Safety Fuel shut-off valve

keeps propane fuel from continuously running when engine is not in use.

SPECIFICATIONS

Engine (No. of Cylinder) 1
Output 5 hp (3.7 kw)
Displacement 123 cc (7.5 cu.in.)
Bore x Stroke 59 x 45 mm (2.32 x 1.77 in)
Starting Manual
Control Type Tiller Handle
Gear Shift Forward - Neutral - Reverse
Gear Ratio 2.15:1
Propeller Selection Range 6" - 9"
Transom Height 15", 20", 25"
Fuel LPG HD-5 (More than 65% Propane)
Fuel Consumption @ WOT Fuel Efficiency: 11lb (5kg) 5h @ WOT
Oil Type NMMA Certified FC-W® 4-stroke oil** SAE 10W-30/40 (SF, SG, SH, SJ)
Oil Capacity 15 fl. oz. (450 mL)
Max Torque 7.2/4,100 (N-m/rpm)
Regulator 2-Step Diaphragm
Weight* 59.5 lbs.
Alternator Output Optional: 12V, 60W, 5A (Standard on "SailPro" models)
Max. RPM Range 5,000 - 6,000
Digital CD Ignition System Standard
Safety Fuel Shut Off Valve Standard
Start In Gear Protection Standard
Thermostat Controlled Cooling System Standard
Through-The-Prop Exhaust Standard
Oil Pressure Warning Standard
Shallow Water Drive Standard
* Weight specification is based on the lightest version.
** FC-W® is a registered trademark of the National Marine Manufacturers Assoc. (NMMA)
SailPro models come standard with a high-thrust prop and 12V charging system.

Specifications and descriptions are subject to change without notice.
