OUTBOARDS
MFS65AJET
Don’t limit your hunting and fishing locations. With Tohatsu’s 65hp Jet Drive four stroke EFI you can reach waters that are difficult to reach with a propeller-driven outboard.
This engine uses the power of our 90hp four stroke EFI and is also backed by a 5 year limited warranty. Choose this model and you can expect a reliable, tough engine that will be your partner out on the water.
Tohatsu 65 hp JET 4-stroke Benefits
- Sleek cowling design, based on our MFS75/90/115/140A
- Outstanding fuel economy from unique SOHC-4V design
- Performance-inspired engine sound and the most quiet at idle
- Ultra-low 3 star CARB & EPA emission approved
- 5 Year limited warranty
High Performance and Easy Operation
- 4-2-1 Performance Tuned Exhaust generates high torque to get you on plane quicker
- Fine-tuned ECU provides the strong acceleration when needed
- Electronic Fuel Injection
- MicroComputer Programmed ignition system for quicker starts
- High output 41 amp alternator
- New and improved gear case with wider splash plate and anti-ventilation plate
- Adjustable steering friction and trim tab for reducing steering effort
- Power Trim and Tilt
Fundamentals for User Convenience and Reliability
- Sheet Molding Compound (SMC) cowlings for durability
- Oil catch tray underneath the oil filter for cleaner oil filter changes
- Easily accessible and removable fuel filter allows simple and quick water draining
- Through the prop exhaust for a quieter operation
- Built-in freshwater flushing system for easy routine flushing
- Variable idling speed control from 650 to 850 RPMs at 5-steps
- A camshaft-driven trochoid oil pump ensures long-term durability of critical engine components
Warning & Protection
- Low oil pressure warning (visual and audible)
- Overheat warning (audible)
- Start-in-gear protection for safer engine starting
- Safety lanyard (an essential protection feature standard on all Tohatsu outboards)
- Over-rev. limiter
FEATURES
Excellent Fuel Efficiency
MFS75/90/115 have a unique SOHC-4V design in its class where competitors are either SOHC-2V or DOHC-4V. Spark plugs are strategically placed in the center of the each combustion chamber for the most efficient combustion with optimal heat conduction which results in strong running and fuel efficiency.
Quietness
With the even-length Intake Manifold, 4-2-1 Performance Tuned Exhaust, and fine-tuned ECU, MFS75/90/115 provide exhilarating and performance-inspired engine sound. Also within the large capacity Idle Port, sounds reflect off each other to dampen the exhaust flow which contributes to the lowest sound at idle.
Trolling Speed Control
Idling and trolling speed can be adjusted by pressing the key switch on your remote control box or multi-function tiller handle. (from 650 to 850 RPMs at 5-steps)
Multi-Function Tiller Handle with Grip-End PTT Switch
Multi-Function Tiller Handle is a great choice for commercial use. It has an ergonomically designed large Shift Lever located at the front and a longer Throttle Grip with a PTT (Power Trim & Tilt) switch located at the grip-end for easier operation and maneuverability. To balance different wind and current conditions, the Variable Idling System allows the user to select the best idling speed from 5 different RPM ranges by simply pressing the Key Switch.

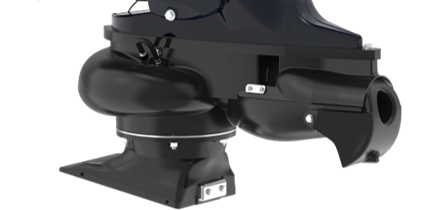

Ideal for Shallow and Rugged Waterways
Explore the hard to reach places where you may be limited with a propeller driven outboard.
SPECIFICATIONS
| Engine (No. of Cylinder) | 4 cylinder |
|---|---|
| Output | Jet Power 65 hp (47.7kw) |
| Displacement | 1,995 cc (121.6 cu. in.) |
| Bore x Stroke | 84 x 90 mm (3.30 x 3.55 in) |
| Motor Weight* | 414.5 lbs. (188 kg) |
| Max. RPM Range | 5,150 - 5,850 |
| Starting | Electric |
| Control Type | Remote or Tiller |
| Gear Shift | Forward - Neutral - Reverse |
| Gear Ratio | 1:1 |
| Ignition System | MicroComputer Programmed |
| Transom Height | 25'' |
| Fuel | Unleaded Gasoline (87 Octane) or higher |
| Oil Type | NMMA Certified FC-W® 4-stroke oil** |
| Alternator Output | 12V, 492W, 41A |
| Electronic Fuel Injection | Standard |
| Start In Gear Protection | Standard |
| Thermostat Controlled Cooling System | Standard |
| Overheat Buzzer | Standard |
| Oil Pressure Warning | Standard |
| Power Trim and Tilt | Standard |
| Variable Idle Speed | Standard |
** FC-W® is a registered trademark of the National Marine Manufacturers Assoc. (NMMA)
Specifications and descriptions are subject to change without notice.

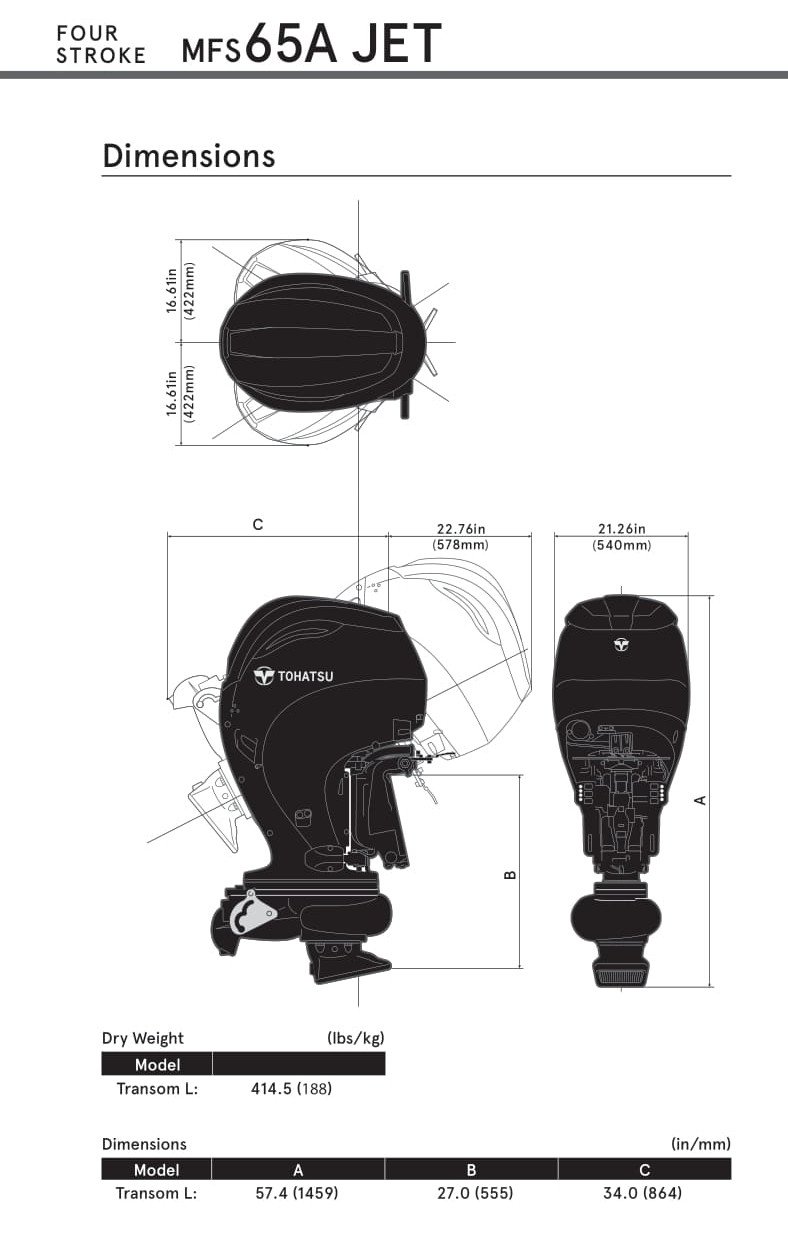

Dimensions
